Xerox Phaser 6600 Service Manual

General Information
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
1-27
When the sheet is lapped over, the break force of the torque limiter combined with the Retard Roller
separates and feeds only the sheet on the top.
The Bottom Plate Assembly is the mechanism driven with the gear located on the side of the paper
cassette. Unless the interlock gear is unlocked, the Bottom Plate Assembly keeps the state that it is not
lowered or elevated from the arbitrary position. The sheet is fed at this position.
As the paper feed is proceeded and several sheets of paper on the top of the paper loaded are
decreased, the Nudger Roller lowers down and the lever unlocks the gear, and then the Bottom Plate
Assembly is elevated.

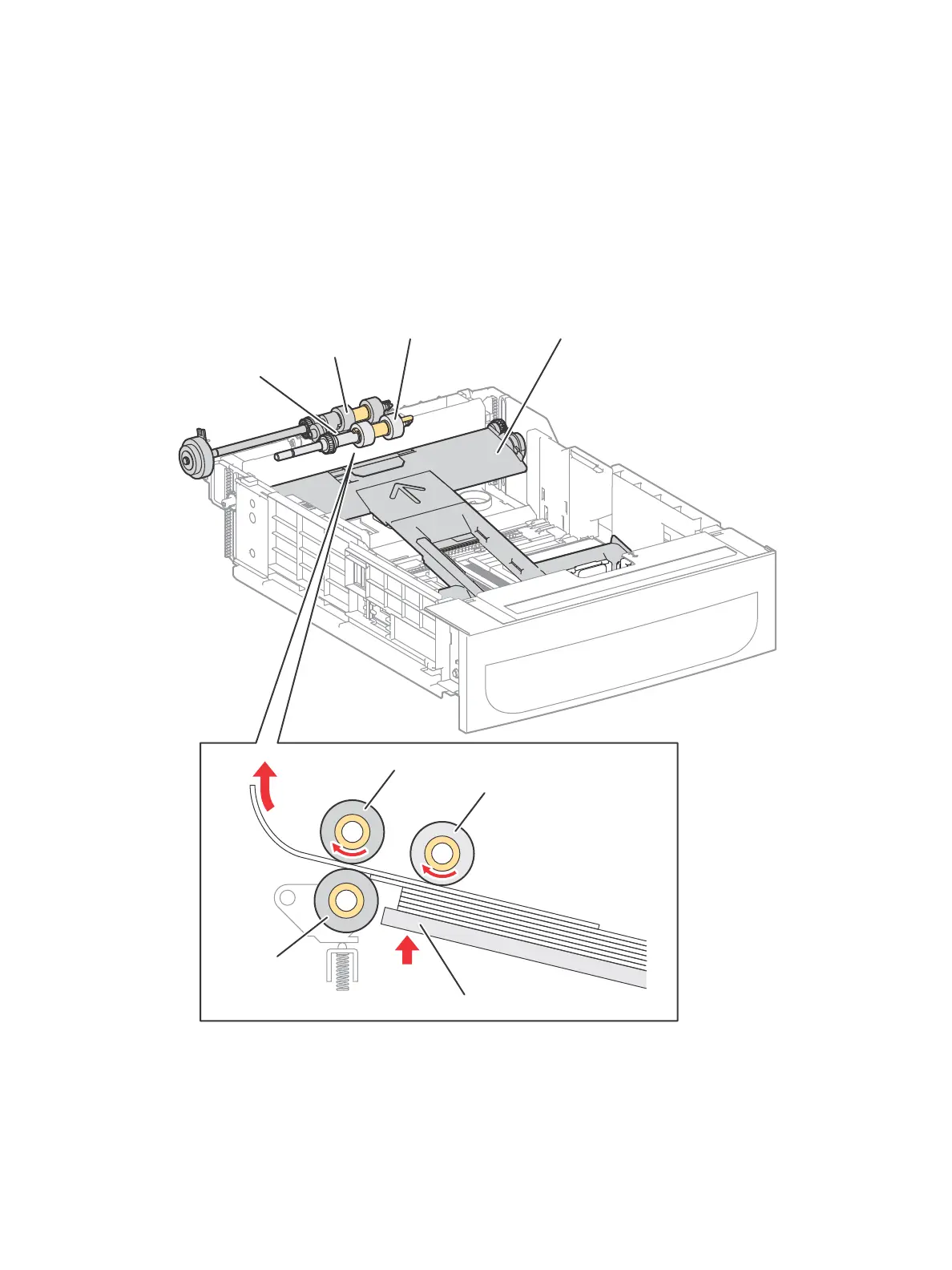

s6600-271
Feed Roller
Bottom Plate Assembly
Nudger Roller
Retard Roller
Feed Roller
Bottom Plate Assembly
Nudger Roller
Retard Roller

Xerox Phaser 6600 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Maximum duty cycle	80000 pages per month
Number of print cartridges	-
Internal memory	256 MB
Processor frequency	533 MHz
Maximum internal memory	768 MB
Sound pressure level (printing)	53 dB
Total input capacity	700 sheets
Total output capacity	250 sheets
Paper tray media types	Card stock, Envelopes, Glossy paper, Labels
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input frequency	50 - 60 Hz
Power consumption (standby)	65 W
Power consumption (printing)	535 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Weight	25500 g
Dimensions (WxDxH)	429.26 x 487.68 x 383.54 mm
