Xerox Phaser 6600 Service Manual

Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-88

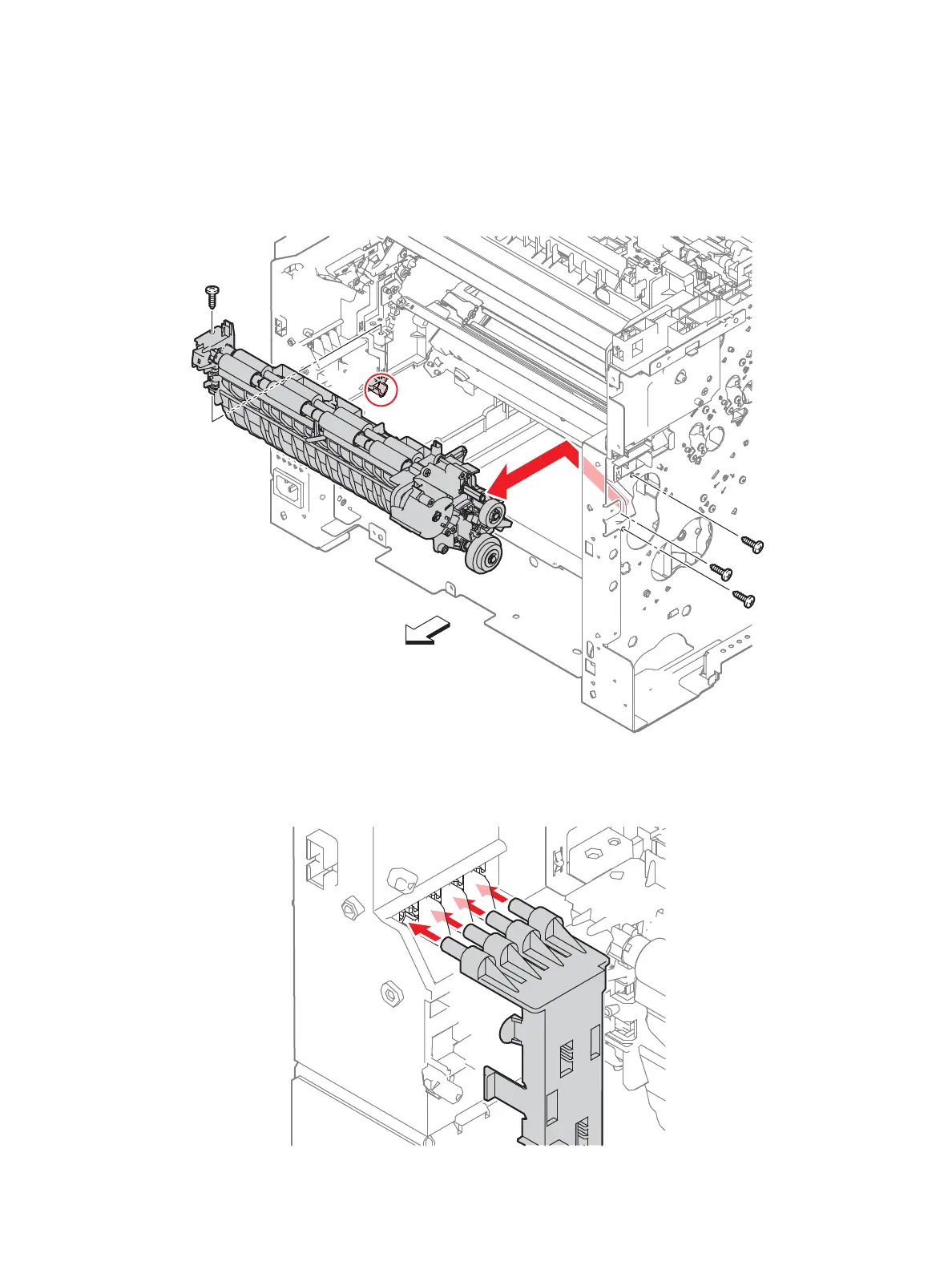

12. Remove the four screws (silver, tapping, 8mm) that attach the Regi Chute Assembly.
13. Remove the two screws (silver, tapping, 8mm) that attach the Rear Hinge Bracket (PL14.1.4) and
remove the Rear Hinge Bracket.
14. Remove the Regi Chute Assembly by releasing its right lug from the recess while moving the shaft
end of the Regi Clutch Assembly along the recess on the left frame of the printer.
Replacement Note: When installing the Inner Transfer Wire Housing Assembly, check that the
ends of the four springs fit correctly into the holes.
s6600-079
Rear
s6600-186

Xerox Phaser 6600 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Maximum duty cycle	80000 pages per month
Number of print cartridges	-
Internal memory	256 MB
Processor frequency	533 MHz
Maximum internal memory	768 MB
Sound pressure level (printing)	53 dB
Total input capacity	700 sheets
Total output capacity	250 sheets
Paper tray media types	Card stock, Envelopes, Glossy paper, Labels
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input frequency	50 - 60 Hz
Power consumption (standby)	65 W
Power consumption (printing)	535 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Weight	25500 g
Dimensions (WxDxH)	429.26 x 487.68 x 383.54 mm
