Xerox Phaser 6600 Service Manual

Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-110

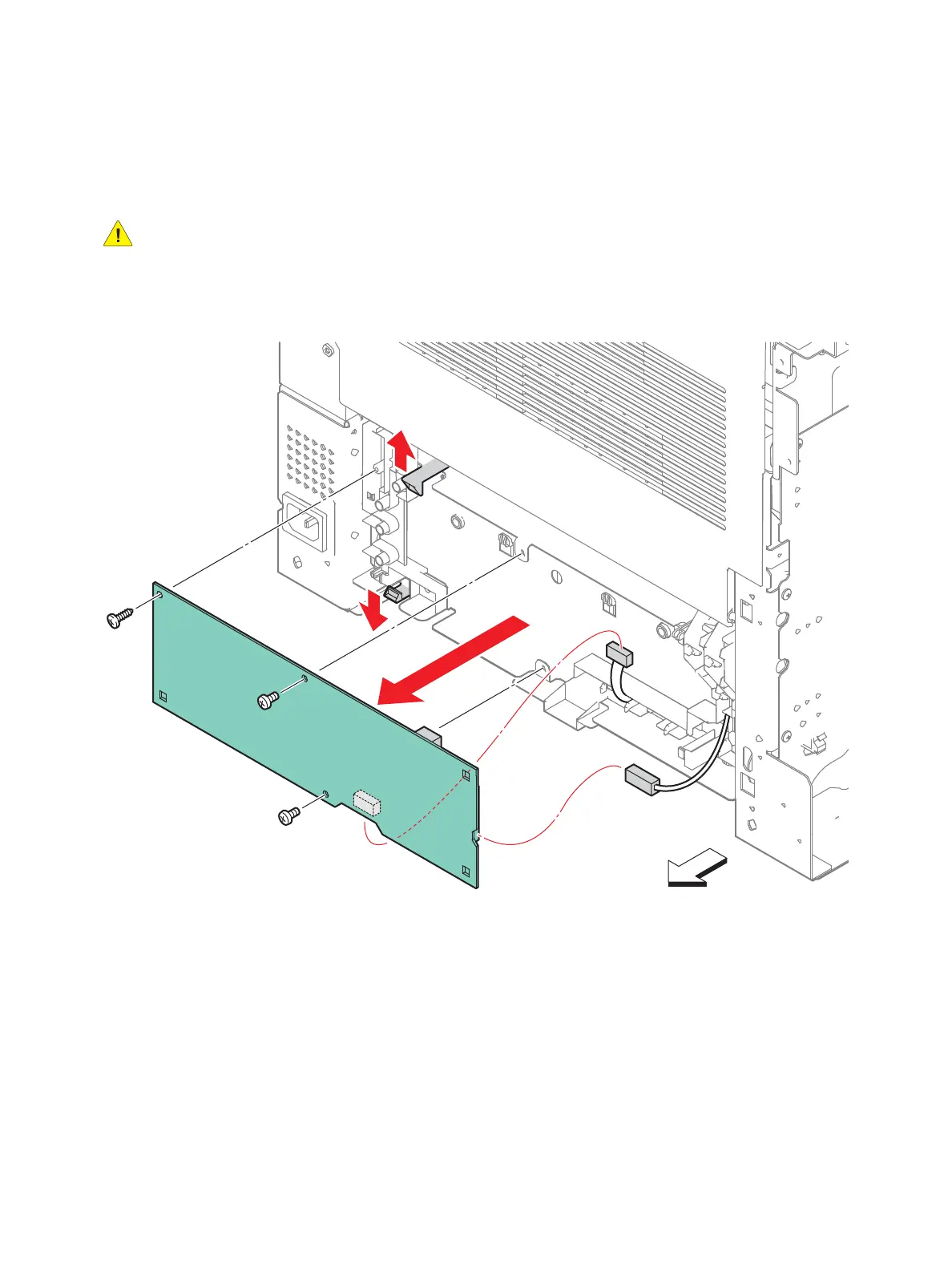

11. Remove the three screws (one, silver, tapping, 8mm; two, silver, 6mm) that attach the Transfer
HVPS Board (PL18.1.28).
12. Release the two hooks that attach the Transfer HVPS Board, and move the board away from the
frame enough to access the connectors.
CAUTION: The harnesses connected to the Transfer HVPS Board have little slack. Pull carefully on
the board to avoid damage to the connectors or wires.
Note: Release the harness from the guide to allow enough slack to unplug the connector.
13. Unplug P/J1821 and the Faston connector from the Transfer HVPS Board and remove the board.
s6600-144
Rear

Xerox Phaser 6600 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Maximum duty cycle	80000 pages per month
Number of print cartridges	-
Internal memory	256 MB
Processor frequency	533 MHz
Maximum internal memory	768 MB
Sound pressure level (printing)	53 dB
Total input capacity	700 sheets
Total output capacity	250 sheets
Paper tray media types	Card stock, Envelopes, Glossy paper, Labels
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input frequency	50 - 60 Hz
Power consumption (standby)	65 W
Power consumption (printing)	535 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Weight	25500 g
Dimensions (WxDxH)	429.26 x 487.68 x 383.54 mm
