Xerox Phaser 6600 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-137
3. Swing up the Control Panel Assembly.

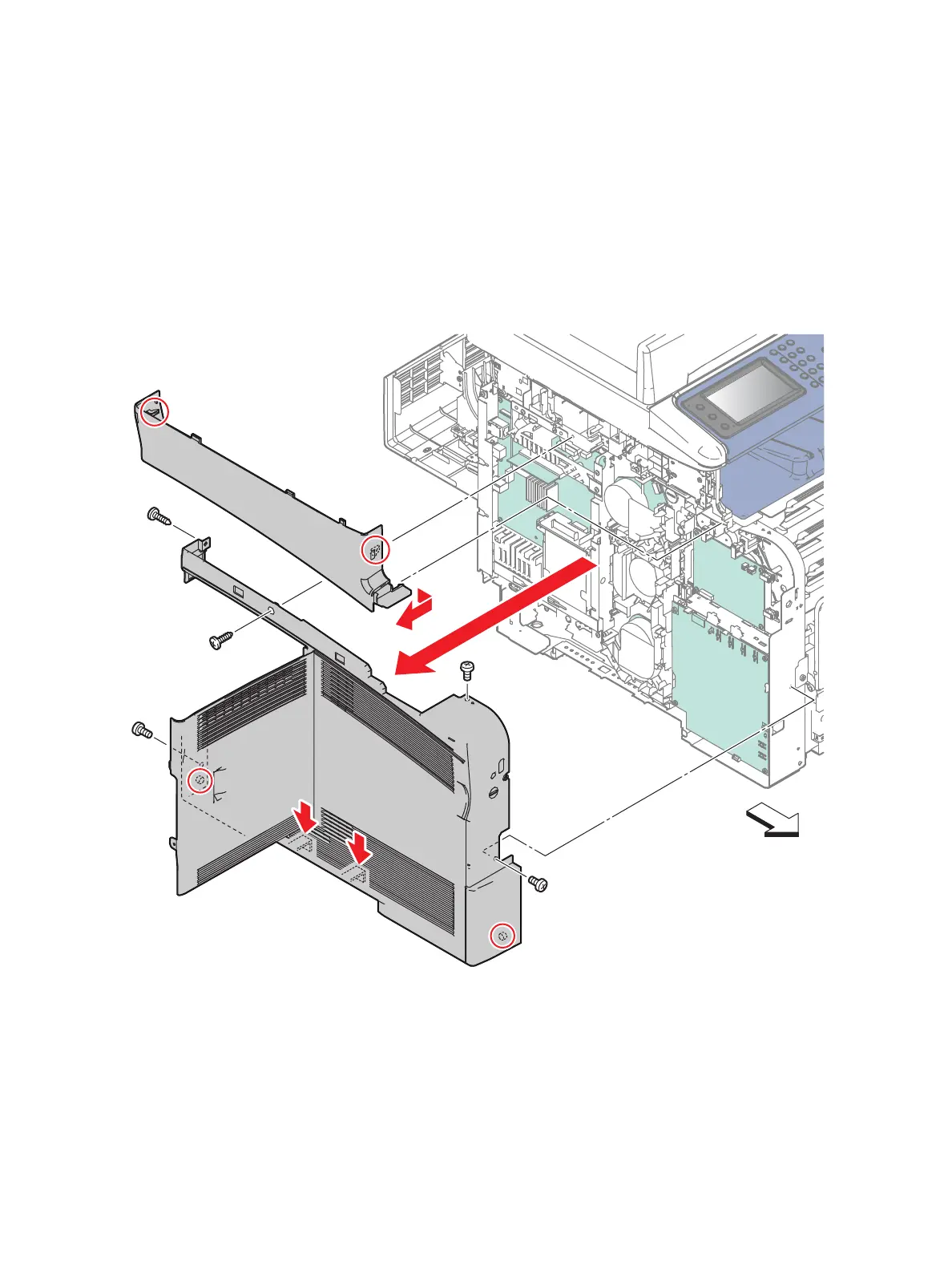

4. Release the front and rear hooks holding the Outer Left Pole Cover (PL19.1.64) using a flatblade
screwdriver or similar tool, and remove the cover.
5. Remove the two screws (silver, 6mm) that attach the rear of the Left Cover Assembly.
6. Remove the screw (silver, 6mm) that attaches the Left Cover Assembly at the top near the front.
7. Remove the screw(silver, 6mm) that attaches the front of the Left Cover Assembly.
8. Release the boss on the bottom front of the Left Cover Assembly, release the two hooks below the
recessed grip using a flatblade screwdriver or the like while flexing the front end slightly outward,
and then release the boss on the rear end.
s6600-093
Front

Xerox Phaser 6600 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Maximum duty cycle	80000 pages per month
Number of print cartridges	-
Internal memory	256 MB
Processor frequency	533 MHz
Maximum internal memory	768 MB
Sound pressure level (printing)	53 dB
Total input capacity	700 sheets
Total output capacity	250 sheets
Paper tray media types	Card stock, Envelopes, Glossy paper, Labels
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input frequency	50 - 60 Hz
Power consumption (standby)	65 W
Power consumption (printing)	535 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Weight	25500 g
Dimensions (WxDxH)	429.26 x 487.68 x 383.54 mm
