Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-146

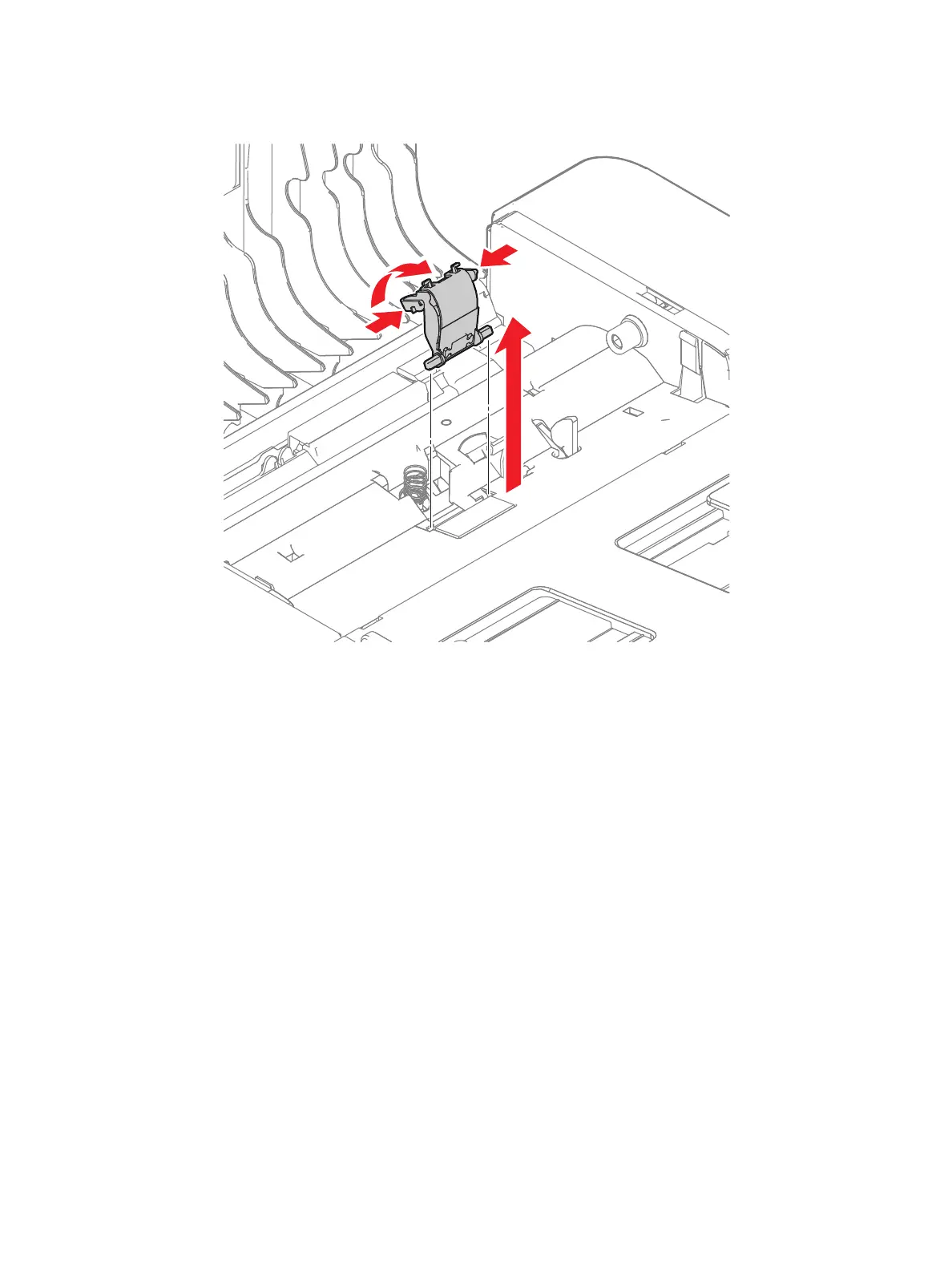

3. Release the two hooks holding the IIT Separation Pad and remove it by swinging it up.
s6600-100
