Maintenance
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
6-19
Performing a Manual Color Registration Adjustment
Color Registration adjusts the printer to make corrections to blurry or hazy prints, or prints with color
halos.
To perform a color registration adjustment:
1. At the control panel, press the Menu button (SFP) or Machine Status button (MFP).
2. SFP: Navigate to Admin Settings, then press OK.
MFP: Touch Tools, then touch Admin Settings.
3. SFP: Navigate to Service Tools, then press OK.
MFP: Touch Service Tools.
4. MFP: Touch Color Registration > Print Registration Chart.

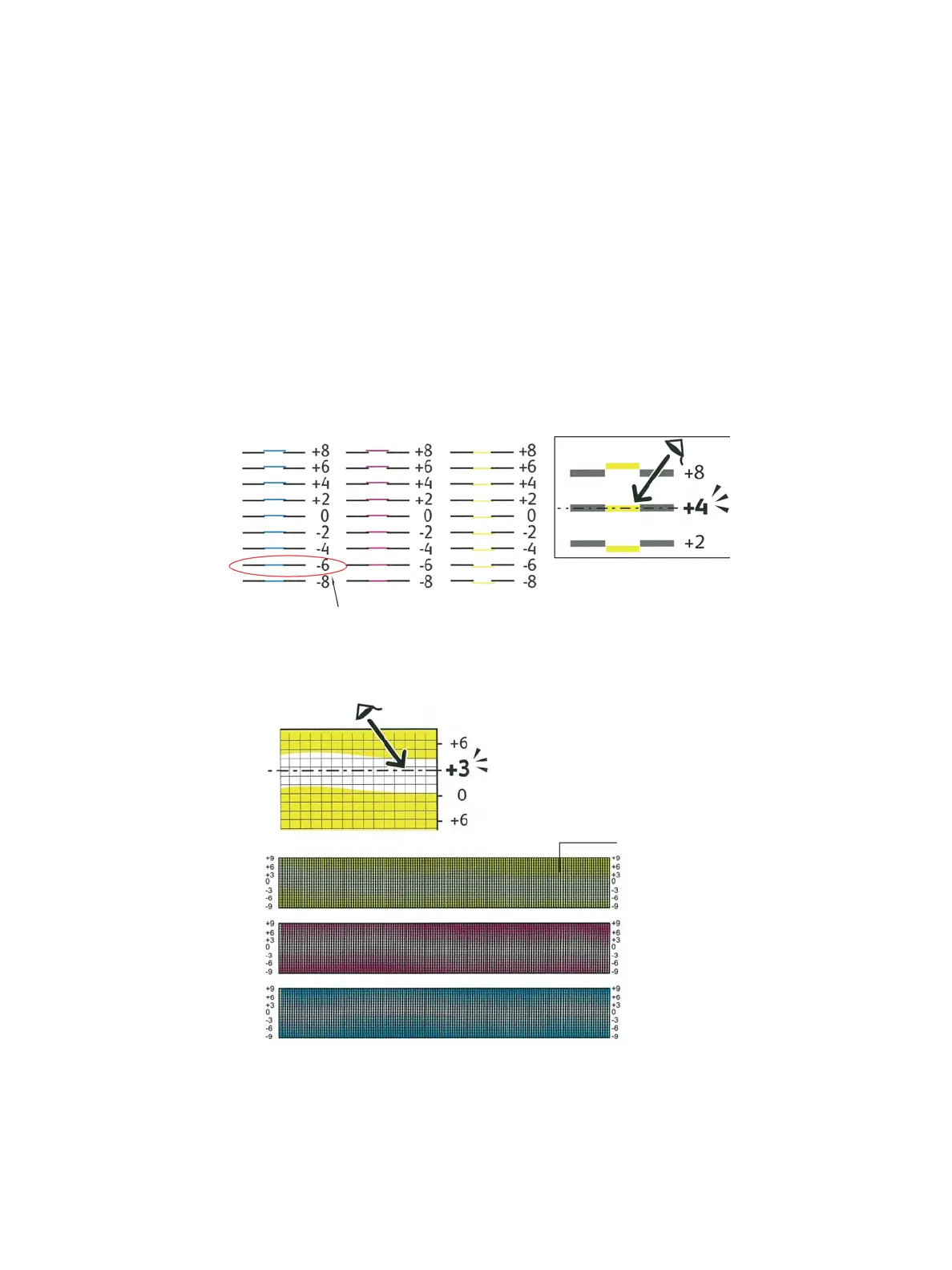

5. Starting with the left side calibration lines, circle the line in each group where the color bar aligns
with the adjacent black bars.
6. Repeat the process for the right side calibration lines, RY, RM, and RC.
7. Align a straight edge through the middle of the white zone in each of the PY, PM, and PC charts.
Circle the number at the end of each chart that represents the middle of the white zone.
