Xerox® WorkCentre® 5890 Family
PL 20.05
Parts Lists

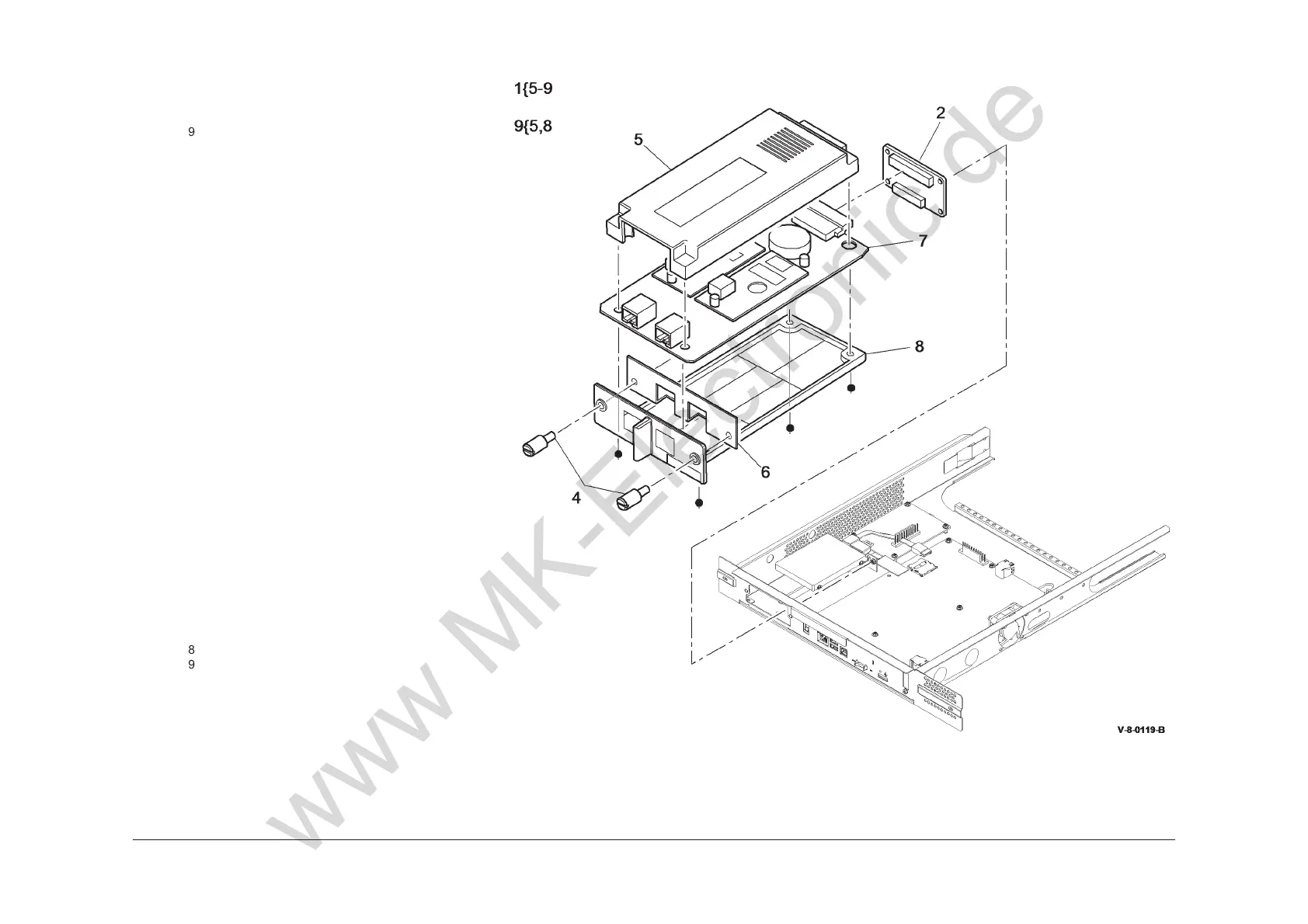

PL 20.05 Fax Module
Item Part Description
1
– Fax module
– – 1 line (P/O PL 31.35 Item 1)
– – 2 line (P/O PL 31.40 Item 1)
2 960K73340 Fax connector PWB
3 – Telephone cable (not shown on
illustration)
– – USSG/XCL
– – United Kingdom
– – Germany
– – Italy
– – Netherlands
– – Belgium
– – Switzerland
– – Denmark
– – Austria
– – Sweden
– – France
– – Norway
– – Portugal/Spain
– – Finland
4 – Thumbscrew (Not Spared)
5 – Front cover (P/O PL 20.05 Item 9)
6 – Ground plate (P/O PL 20.05 Item 1)
7 – Fax PWB (see below for variants)
– – 1 line (W/O TAG X-001) (Not
Spared)
– – 2 line (W/O TAG X-001) (Not
Spared)
– – 1 line (W/TAG X-001) (P/O PL
31.35 Item 2)
– – 2 line (W/TAG X-001) (P/O PL
31.40 Item 2)
– – 1 line fax34 (W/TAG X-002) (P/O
PL 31.35 Item 2)
– – 2 line fax34 (W/TAG X-002) (P/O
PL 31.40 Item 2)
8 – Rear cover (P/O PL 20.05 Item 9)
9 848E74310 Covers assembly
10 962K82620 Fax connector PWB to Fax module
harness
