Xerox® WorkCentre® 5890 Family
PL 5.17
Parts Lists

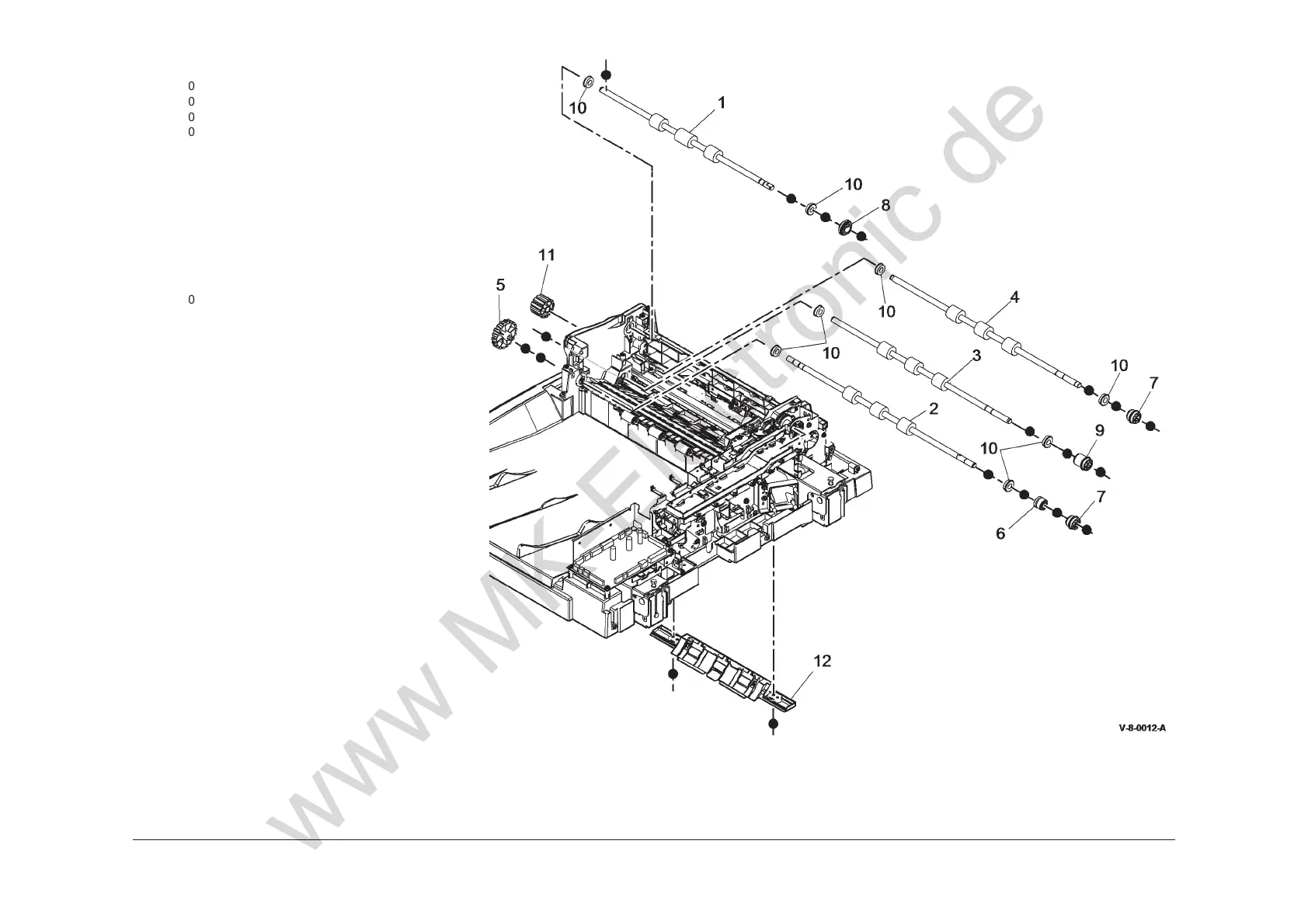

PL 5.17 SPDH Transport Assembly
Item Part Description
1
059K84040 Takeaway roll assembly (REP 5.5)
2 059K84070 Exit roll assembly (REP 5.7)
3 059K84050 Mid scan roll assembly (REP 5.18)
4 059K84060 Pre scan roll assembly (REP 5.17)
5 – Exit jam clearance knob (P/O PL
5.19 Item 24) (REP 5.7)
6 – Idler gear (P/O PL 5.19 Item 24)
7 – Drive gear (P/O PL 5.19 Item 24)
8 – Gear (P/O PL 5.19 Item 24)
9 – Pre scan pulley (P/O PL 5.19 Item
24)
10 – Bearing (P/O PL 5.19 Item 24)
11 – Pre scan jam clearance knob (P/O
PL 5.19 Item 24)
12 059K84880 Lower pre scan roller assembly
(REP 5.6)
