Xerox WorkCentre 5890 User Manual

August 2015
5-16
Xerox® WorkCentre® 5890 Family
PL 10.11
Parts Lists

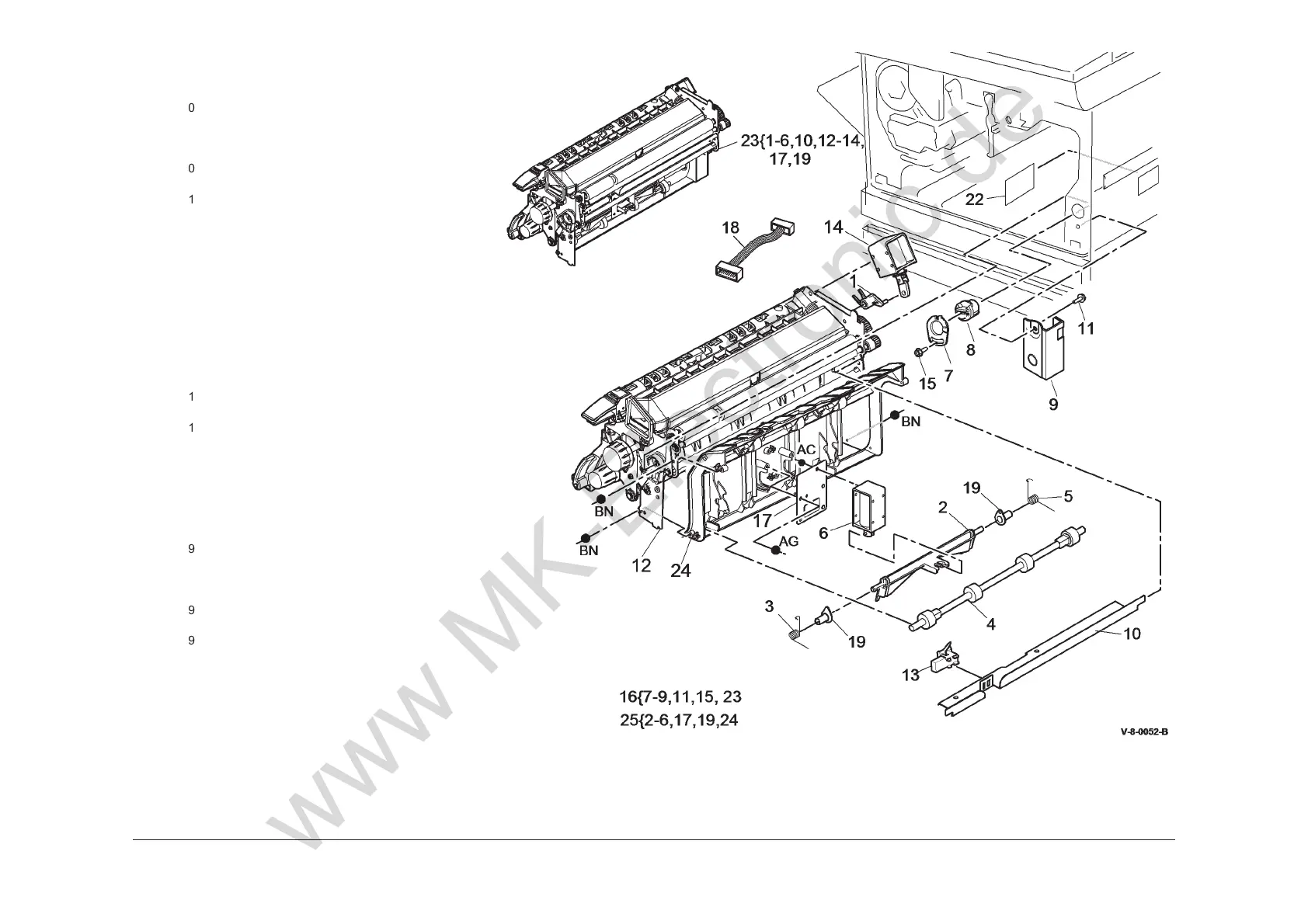

PL 10.11 Inverter Decurler Assembly
(
1 of 4)
Item Part Description
1
011E25300 Link arm
2 – Shaft actuator (P/O PL 10.11 Item
25) (REP 10.9)
3 – LH Spring (P/O PL 10.11 Item 25)
4 006K30320 Nip split shaft assembly (REP 10.8)
5 – RH Spring (P/O PL 10.11 Item 25)
6 121K44381 Inverter nip solenoid (SOL10-050)
(REP 10.5)
7 – Retaining ring (P/O PL 10.11 Item
16)
8 – Adjuster (P/O PL 10.11 Item 16)
9 – Support bracket (P/O PL 10.11 Item
16)
10 – IOT exit sensor mounting bracket
(P/O PL 10.11 Item 23)
11 – Screw (M4x8) (P/O PL 10.11 Item
16)
12 – Inverter output assembly (P/O PL
10.11 Item 23)
13 130E12080 IOT Exit sensor (Q10-120) (REP
10.17)
14 121K44391 Inverter path solenoid (SOL10-045)
(REP 10.4)
15 – Shoulder screw (M4x12) (P/O PL
10.11 Item 16)
16 – Inverter decurler kit (REF: PL 31.13
Item 3)
17 – Inverter nip solenoid bracket (P/O
PL 10.11 Item 25)
18 962K96240 Inverter jumper harness
19 – Bearing (P/O PL 10.11 Item 25)
20 – Not used
21 – Not used
22 960K41881 Inverter motor driver PWB (45-
55ppm)
– 960K32891 Inverter motor driver PWB (65-90
ppm)
23 – Inverter decurler assembly (P/O PL
31.13 Item 3) (45-55 ppm) (REP
10.2)
– – Inverter decurler assembly (P/O PL
31.13 Item 3) (65-90 ppm) (REP
10.2)
24 – Output guide (P/O PL 10.11 Item
25)
25 – Output guide assembly (Not
Spared)
