Xerox WorkCentre 5890 User Manual

August 2015
5-143
Xerox® WorkCentre® 5890 Family
PL 80.45
Parts Lists

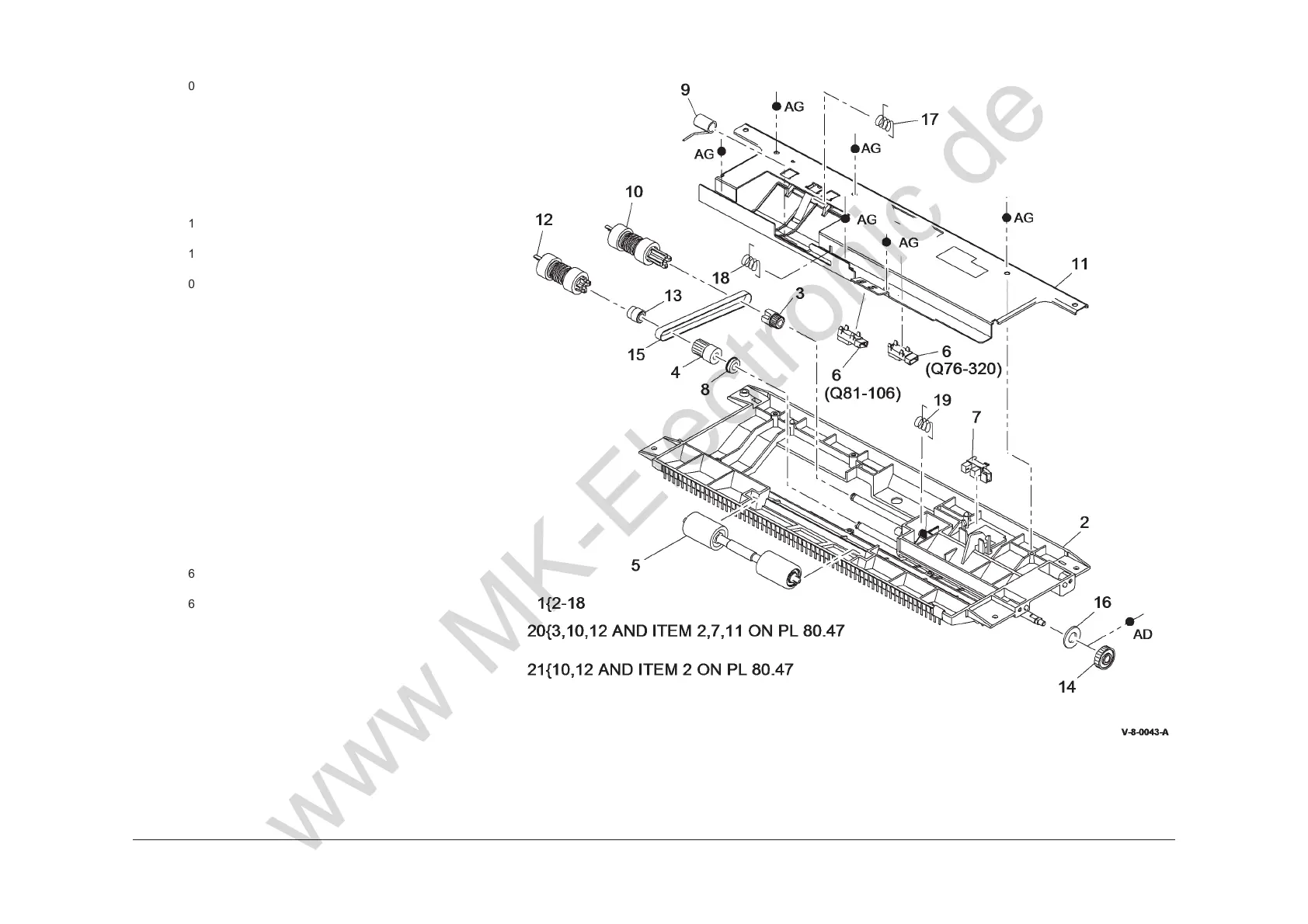

PL 80.45 Tray 6 Feed Assembly (2 of 3)
Item Part Description
1
059K69991 Upper feed assembly (REP 80.28)
2 – Upper feed assembly base (P/O PL
80.45 Item 1)
3 – One way gear (P/O PL 80.45 Item
20)
4 – One way coupling (P/O PL 80.45
Item 20)
5 – Take away idler roller (P/O PL
31.11 Item 8)
6 130E11610 Empty sensor (Q76-320)/Feed
sensor (Q81-106)(REP 80.19)
7 130E20360 Stack height sensor (Q76-330)
(REP 70.6)
8 013E93370 Bearing
9 – Torsion spring (P/O PL 80.45 Item
1)
10 – Nudger roll (P/O PL 80.45 Item 20
& PL 80.45 Item 21)
11 – Upper feed assembly top cover (P/
O PL 80.45 Item 1)
12 – Feed roll (P/O PL 80.45 Item 20 &
PL 80.45 Item 21)
13 – Clutch (P/O PL 80.45 Item 20)
14 – Gear (29T) (P/O PL 80.45 Item 1)
15 – Roller belt (P/O PL 80.45 Item 1)
16 – Washer (P/O PL 80.45 Item 1)
17 – Torsion chute spring (P/O PL 80.45
Item 1)
18 – Housing spring (P/O PL 80.45 Item
1)
19 – Torsion nudger spring (P/O PL
80.45 Item 1)
20 604K84480 Feed roll retrofit kit (See NOTES 1
& 3) (W/TAG P-002)
21 604K55480 Feed roll kit (Pack of 3) (See
NOTES 2 & 3) (W/TAG P-002)
(REP 80.24)
NOTE: 1. Kit installs reduced miss-feed (different colour) rolls
and associated parts.
NOTE: 2. Replaces the rolls installed with the feed roll
retrofit kit, PL 80.45 Item 20.
NOTE: 3. HFSI. To reset the HFSI count, refer to dC135.
