Xerox WorkCentre 5890

August 2015
5-33
Xerox® WorkCentre® 5890 Family
PL 11.23
Parts Lists

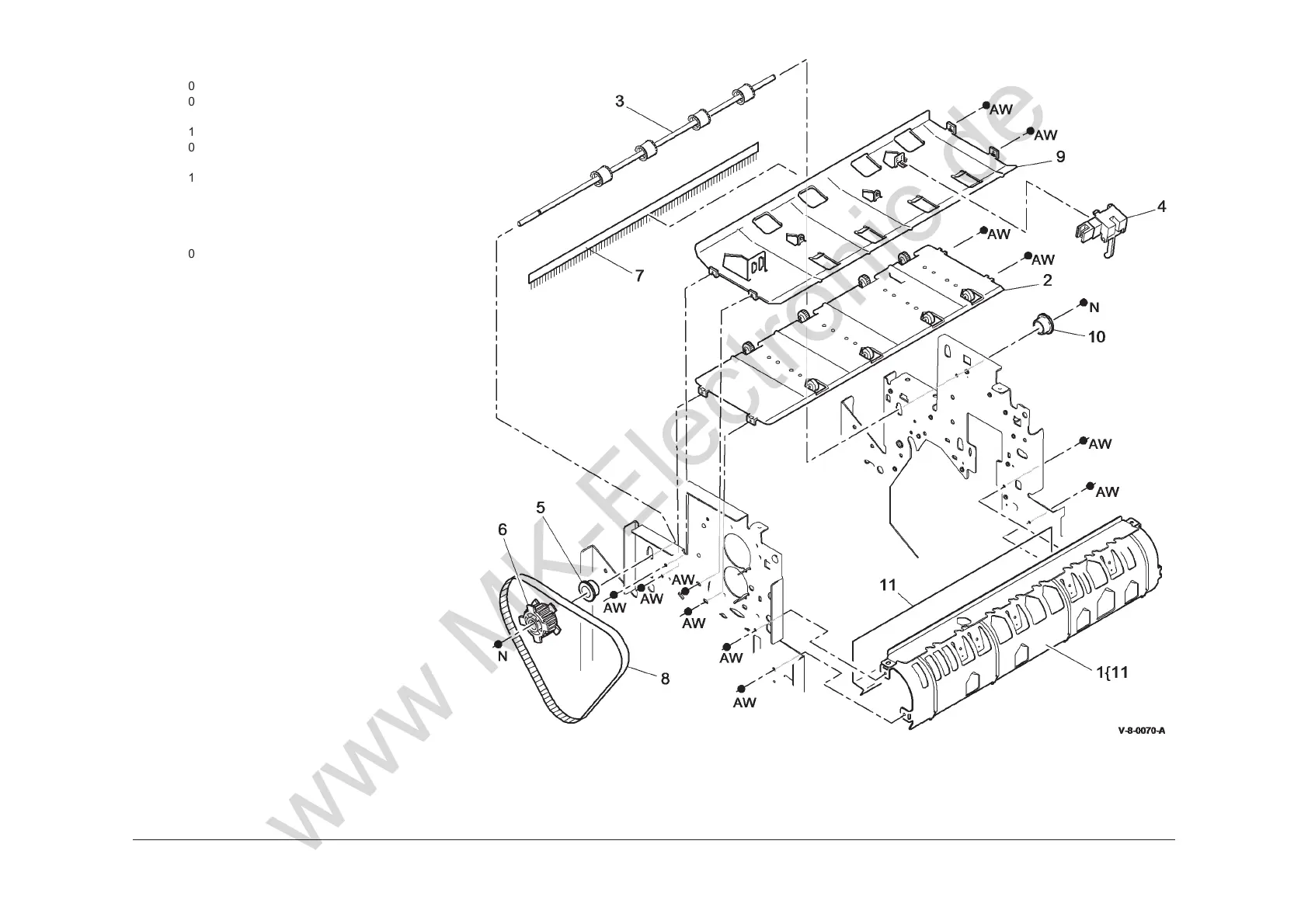

PL 11.23 2K LCSS Bin 1 Entry
Item Part Description
1
032K04610 Left paper guide
2 032K04590 Lower right paper guide
3 – Ejector drive shaft (Not Spared)
4 130E11440 2nd to top exit sensor (Q11-140)
5 013E25790 Nylon bearing
6 – Pulley (Not Spared)
7 115E11810 Static eliminator (stacker)
8 – Paper output drive belt (REF: PL
11.22 Item 14)
9 – Upper right paper guide (Not
Spared)
10 013E37460 Bearing
11 – Mylar safety cover (P/O PL 11.23
Item 1)
