Xerox WorkCentre 5890 User Manual

August 2015
5-142
Xerox® WorkCentre® 5890 Family
PL 80.40
Parts Lists

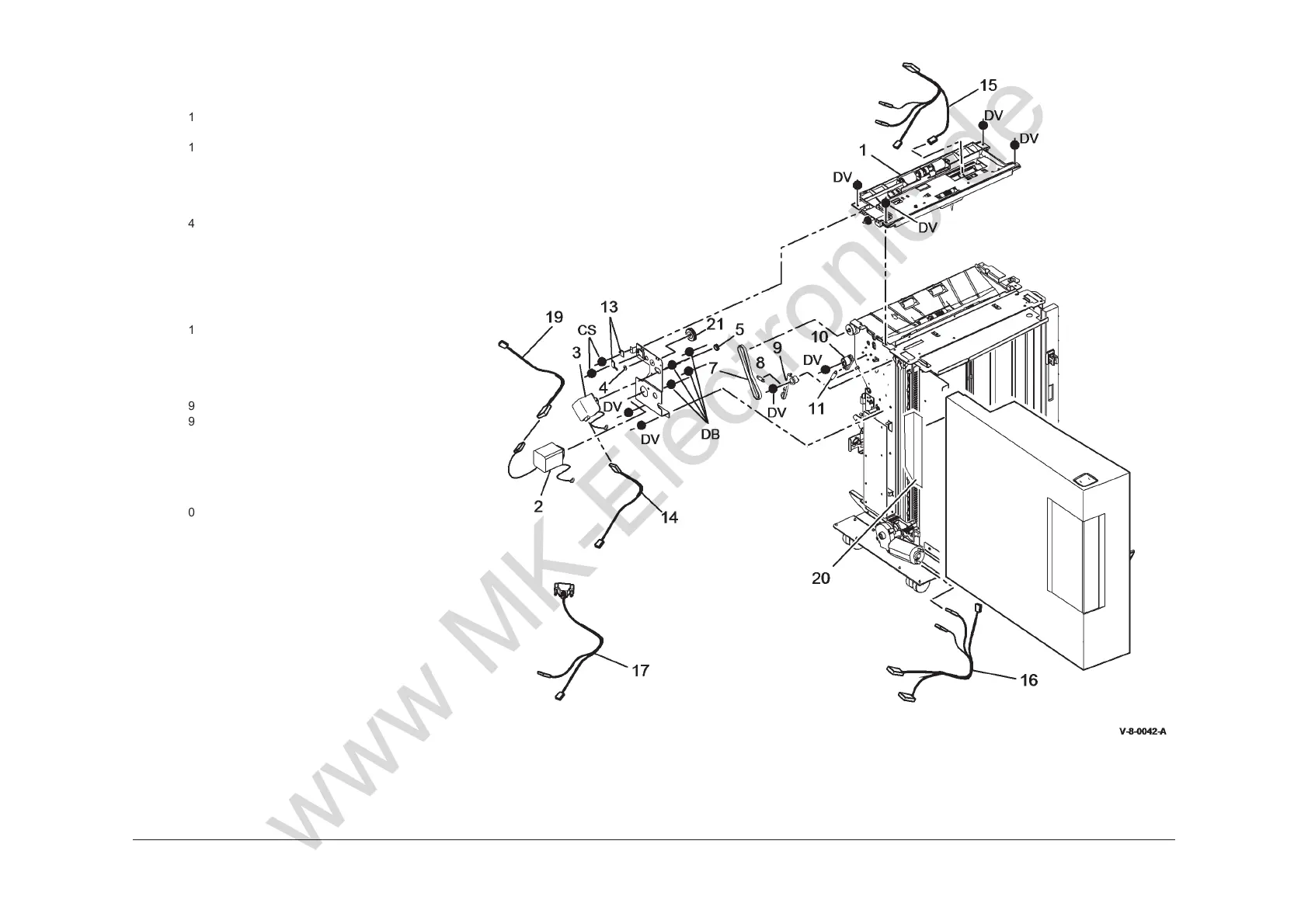

PL 80.40 Tray 6 Feed Assembly (1 of 3)
Item Part Description
1
– Upper feeder assembly (REF: PL
80.45 Item 1) (REP 80.28)
2 127K56453 Transport motor (MOT81-065)
(REP 80.27)
3 127K61980 Feed motor (MOT81-060) (REP
80.26)
4 – Bearing (Not Spared)
5 – Gear (P/O PL 80.40 Item 3)
6 – Not used
7 423W09050 Drive belt (REP 80.23)
8 – Upper limit actuator spring (Not
Spared)
9 – Upper limit actuator (Not Spared)
10 – Belt tensioner (Not Spared)
11 – Belt tensioner spring (Not Spared)
12 – Not used
13 125E00430 Static eliminator
14 – Transport motor harness (Not
Spared)
15 – Tray 6 upper feeder assembly
harness (Not Spared)
16 962K50475 Elevator motor harness
17 962K63351 IOT to tray 6 harness
18 – Not used
19 – Feed/elevator motor harness (Not
Spared)
20 – Elevator harness shield (Not
Spared)
21 007K14401 Gear 30T bearing
