Xerox WorkCentre 5890 User Manual

August 2015
5-87
Xerox® WorkCentre® 5890 Family
PL 11.168
Parts Lists

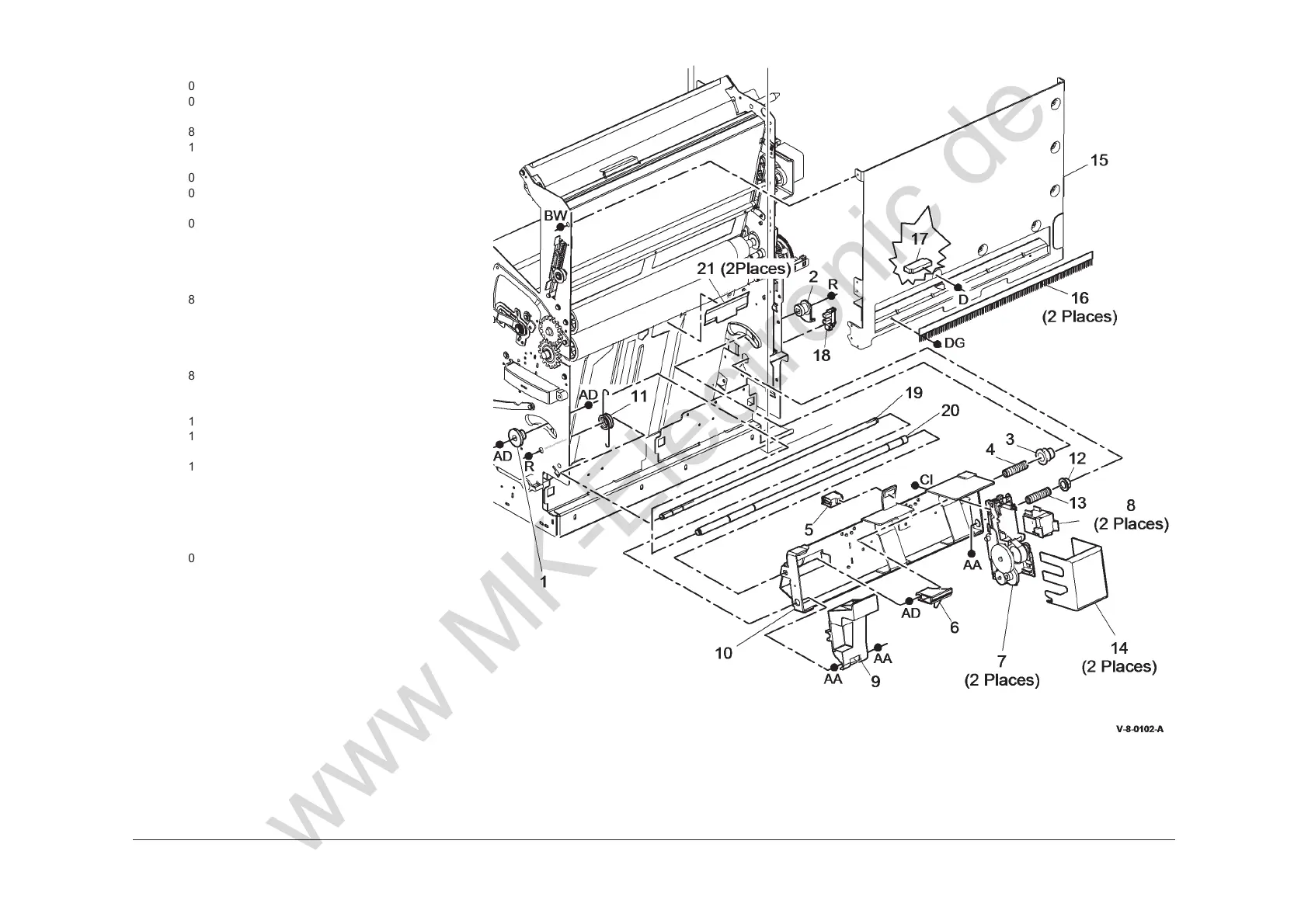

PL 11.168 HVF BM Stapler Assemblies
Item Part Description
1
020E38513 Front follower
2 016E17732 Actuator
3 – Rear follower (Not Spared)
4 809E44010 Spring
5 130K74090 BM paper present sensor (Q11-
190)
6 008E06850 Latch slide
7 029K03232 BM Staple head assembly (REP
11.27-171)
8 050K21270 Staples (1x 2000)
9 – Staple bracket handle (Not Spared)
(REP 11.28-171)
10 – Stapler bracket assembly (Not
Spared) (REP 11.28-171)
11 809E48830 Torsion spring (REP 11.28-171)
12 – Bearing (Not Spared) (REP 11.28-
171)
13 – Spring (Not Spared) (REP 11.28-
171)
14 802E42770 Staple head cover
15 – BM Right cover (Not Spared) (REP
11.56-171)
16 125E02750 Static eliminator
17 130E11640 BM exit sensor (Q11-409) (REP
11.50-171)
18 107E22600 BM Stapler head carrier closed
sensor (Q11-421) (REP 11.28-171)
19 – Lower shaft (Not Spared) (REP
11.28-171)
20 – Upper shaft (Not Spared) (REP
11.28-171)
21 055E51870 Mylar guide
