Xerox® WorkCentre® 5890 Family
PL 80.20
Parts Lists

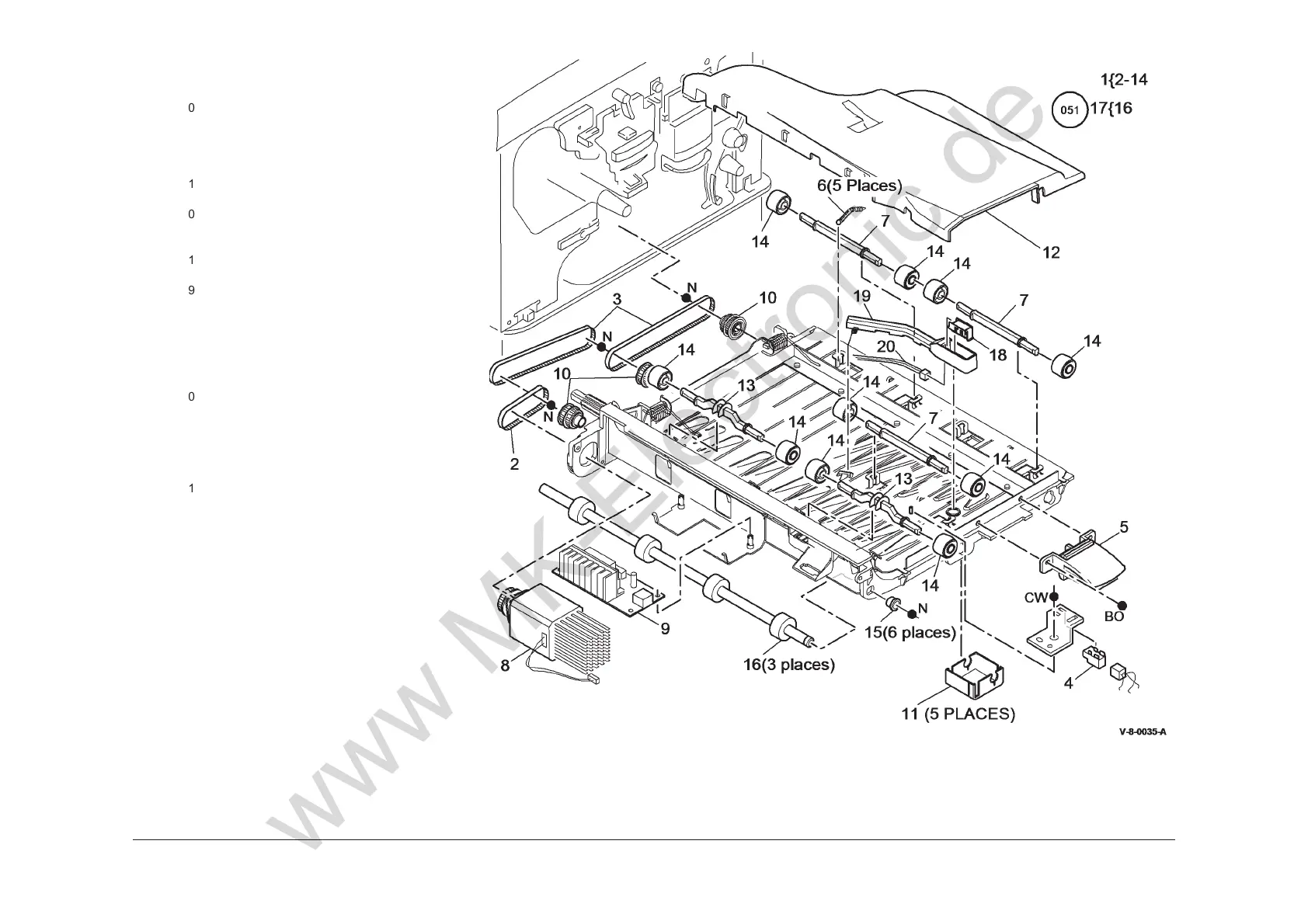

PL 80.20 Duplex Transport (65-90
p
pm)
Item Part Description
1
059K84730 Duplex transport (REP 80.5)
2 – Drive belt (76T) (P/O PL 80.20 Item
1) (REP 80.6)
3 – Drive belt (285T) (P/O PL 80.20
Item 1) (REP 80.6)
4 130E11610 Duplex sensor (Q83-160) (REP
80.22)
5 003K20760 Jam clearance latch
6 – Spring (P/O PL 80.20 Item 1)
7 – Nip roll shaft (P/O PL 80.20 Item 1)
8 127K62340 Duplex motor (MOT83-060) (REP
80.6)
9 960K32880 Duplex motor driver PWB (REP
80.6)
10 – Drive pulley (P/O PL 80.20 Item 1)
11 – Lower cover (P/O PL 80.20 Item 1)
12 – Duplex duct (P/O PL 80.20 Item 1)
13 – Duplex nip roll shaft (P/O PL 80.20
Item 1)
14 059K49400 Nip roll assembly
15 – Bearing (P/O PL 80.20 Item 1)
16 – Duplex drive roll shaft (P/O PL
80.20 Item 17)
17 – Drive roll repair kit (REF: PL 31.13
Item 9) (W/TAG 051)
18 123E02481 Duplex transport LED (REP 80.48)
19 – LED harness guide (Not Spared)
20 – Duplex transport LED harness (Not
Spared)
