Xerox® WorkCentre® 5890 Family
PL 11.179
Parts Lists

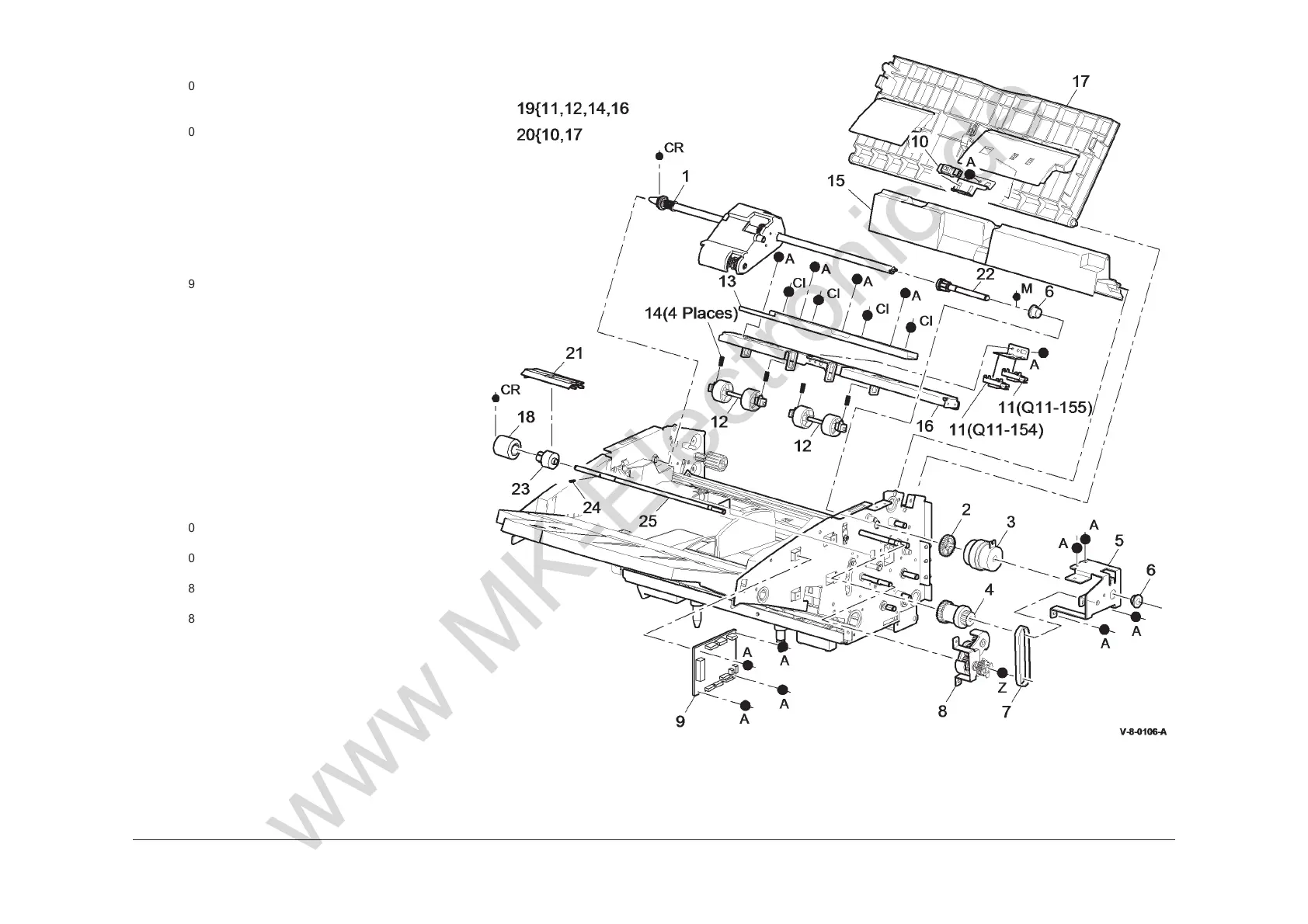

PL 11.179 Inserter Main Drives (2 of 3)
Item Part Description
1
050K68080 Pickup assembly (See NOTE)
(REP 11.95-171)
2 – Pickup gear (Not Spared)
3 005K12890 Inserter clutch (CL11-077) (REP
11.86-171)
4 – Reverse roller drive idler (Not
Spared)
5 – Pickup assembly bracket (Not
Spared)
6 – Bearing (Not Spared)
7 – Reverse roller drive belt (Not
Spared)
8 – Reverse roller drive (Not Spared)
9 960K46170 Inserter PWB (REP 11.85-171)
10 – IDG pickup sensor (P/O PL 11.179
Item 20) (REP 11.91-171)
11 – TE sensor (Q11-155) (REP 11.93-
171)/LE sensor (Q11-154) (REP
11.93-171) (P/O PL 11.179 Item 19)
12 – Idle roller assembly (P/O PL 11.179
Item 19) (REP 11.98-171)
13 – Idler roller bracket (Not Spared)
14 – Idler roller spring (P/O PL 11.179
Item 19)
15 – Top inside cover (Not Spared)
16 – Idler roller cover (P/O PL 11.179
Item 19)
17 – Top cover door (P/O PL 11.179
Item 20) (REP 11.91-171)
18 050K68090 Reverse feed roller (REP 11.95-
171)
19 006K32470 Idler roller assembly (REP 11.98-
171)
20 848K19160 Top cover door assembly (REP
11.91-171)
21 848K37330 Retard cover
22 – Drive coupling (Not Spared)
23 – Reverse feed roll core (Not Spared)
24 – Pin (Not Spared)
25 – Shaft (Not Spared)
NOTE: HFSI. To reset the HFSI count, refer to dC135.
