Xerox® WorkCentre® 5890 Family
PL 5.20
Parts Lists

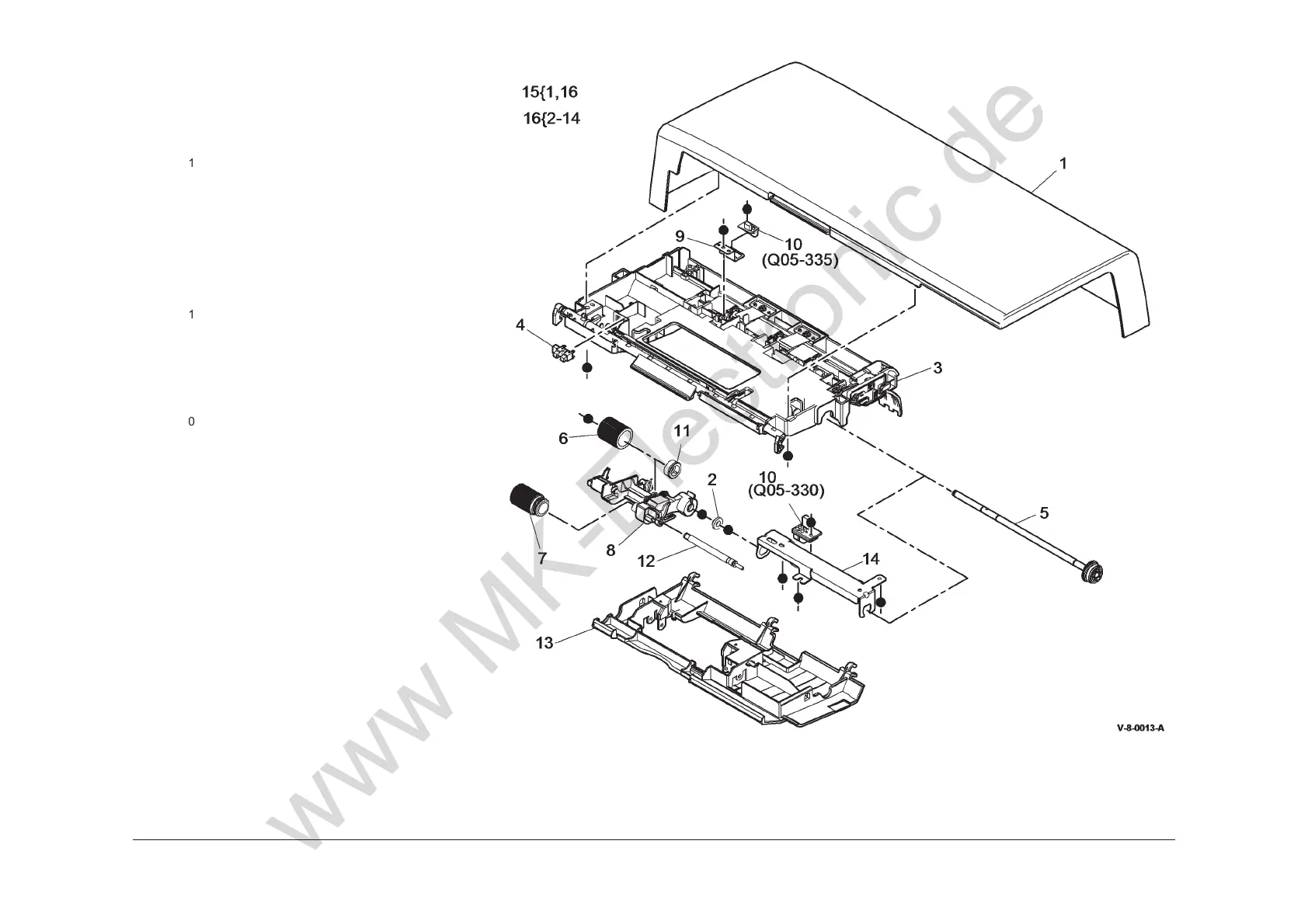

PL 5.20 SPDH Top Cover Assembly
Item Part Description
1
– Top cover (P/O PL 5.20 Item 15)
(REP 5.1)
2 – Bushing (P/O PL 5.20 Item 15)
3 – Feed assembly frame (P/O PL 5.20
Item 15) (REP 5.2)
4 130E19040 Stack height sensor (Q05-310)
(REP 5.8)
5 – Shaft (P/O PL 5.20 Item 15)
6 – Feed roll (P/O PL 31.11 Item 16)
(See NOTE 2, NOTE 3) (REP 5.2)
7 – Nudger roll (P/O PL 31.11 Item 16)
(See NOTE 2, NOTE 3) (REP 5.2)
8 – Roll housing (P/O PL 5.20 Item 15)
9 – TAR sensor bracket (P/O PL 5.20
Item 15) (REP 5.8)
10 130E19090 Feed sensor (Q05-330)/ Takeaway
sensor(Q05-335) (REP 5.8)
11 – Spacer (P/O PL 5.20 Item 15)
12 – Shaft (P/O PL 5.20 Item 15)
13 – Lower cover (P/O PL 5.20 Item 15)
14 – Mounting bracket (P/O PL 5.20
Item 15)
15 059K84850 Top cover assembly (REP 5.1)
16 – Feed assembly (P/O PL 5.20 Item
15)
NOTE: 1.For the top cover interlock switch, refer to PL 5.10
Item 13.
NOTE: 2.HFSI. To reset the HFSI count, refer to dC135.
NOTE: 3. Also supplied with PL 5.25 Item 3.
