Xerox WorkCentre 5890 User Manual

August 2015
5-123
Xerox® WorkCentre® 5890 Family
PL 70.19
Parts Lists

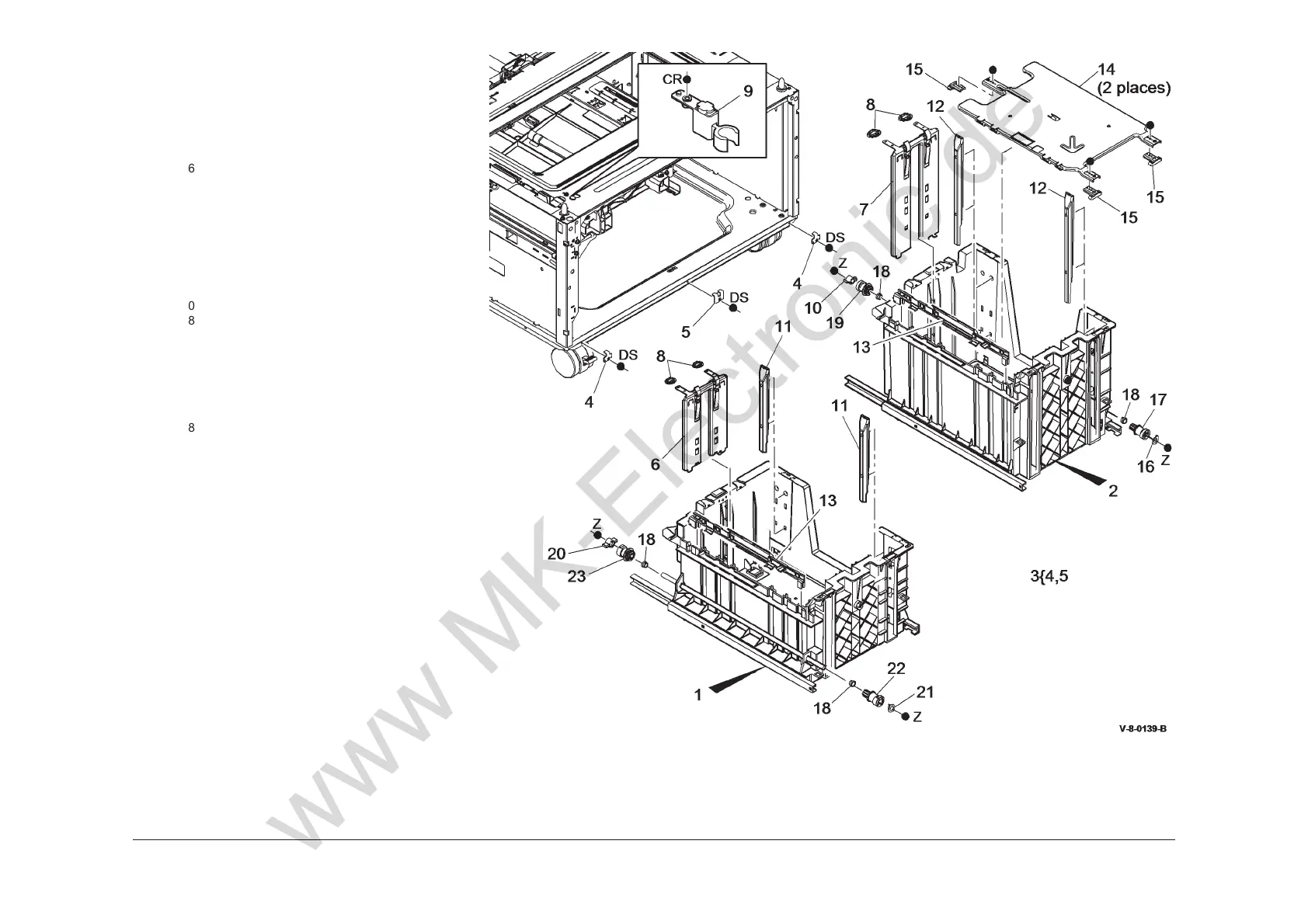

PL 70.19 Tray 3 and 4 Assembly (2 of
2
)
Item Part Description
1
– Tray 4 assembly (REF: PL 70.18
Item 2)
2 – Tray 3 assembly (REF: PL 70.18
Item 3)
3 604K83671 Tray 3 and 4 clamp kit
4 – Side clamp (2 off) (P/O PL 70.19
Item 3)
5 – Centre clamp (P/O PL 70.19 Item
3)
6 – Tray 4 paper tray guide (P/O PL
70.18 Item 2)
7 – Tray 3 paper tray guide (P/O PL
70.18 Item 3)
8 019E74532 Retaining clips
9 819E20420 Front clip
10 – Tray 3 elevator drives gear coupling
(P/O PL 70.18 Item 9)
11 – Tray 4 paper guide (P/O PL 70.18
Item 2)
12 – Tray 3 paper guide (P/O PL 70.18
Item 3)
13 815E92301 Separation strip
14 – Lift plate (P/O PL 70.10 Item 1, PL
70.10 Item 2)
15 – Guide plate (P/O PL 70.18 Item 9,
PL 70.18 Item 10)
16 – Spacer (P/O PL 70.18 Item 9)
17 – Tray 3 elevator pulley (P/O PL
70.18 Item 9)
18 – Bearing (Not Spared)
19 – Tray 3 elevator gear (P/O PL 70.18
Item 9)
20 – Tray 4 elevator drives gear coupling
(P/O PL 70.18 Item 10)
21 – Spacer (P/O PL 70.18 Item 10)
22 – Tray 4 elevator pulley
23 – Tray 4 elevator gear (P/O PL 70.18
Item 10)
