Xerox WorkCentre 5890 User Manual

August 2015
5-73
Xerox® WorkCentre® 5890 Family
PL 11.145
Parts Lists

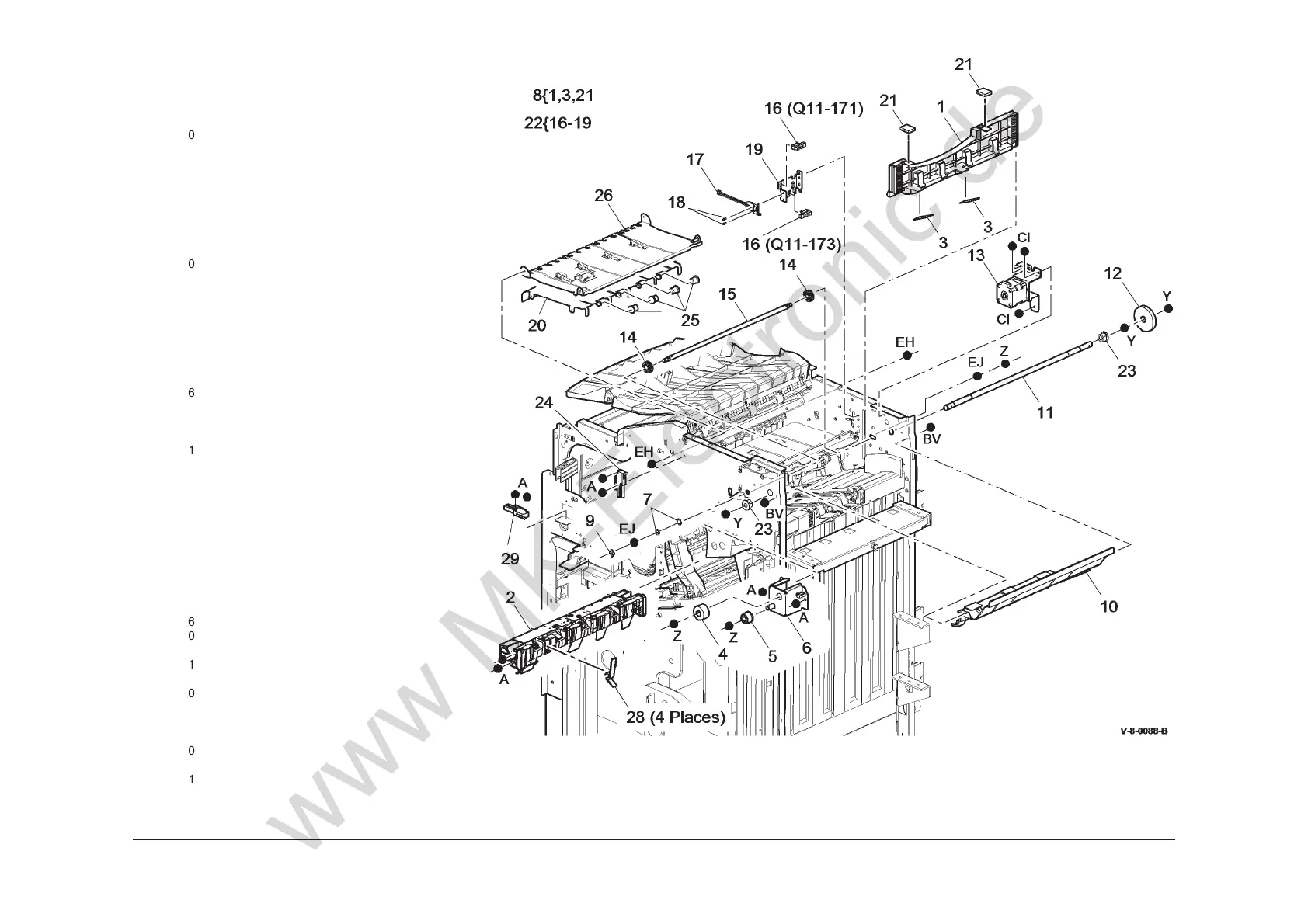

PL 11.145 HVF Ejector, Pressing and
S
upport (2 of 2)
Item Part Description
1
– Paper pusher (P/O PL 11.145 Item
8)
2 033K04414 Paddle module assembly (REP
11.49-171)
3 – Pusher mylar (P/O PL 11.145 Item
8)
4 – Timing belt pulley (Not Spared)
5 – Timing belt tensioner (Not Spared)
6 – Front stacker pulley bracket (Not
Spared)
7 – Thrust washer (Not Spared)
8 050K67801 Paper pusher assembly (REP
11.53-171)
9 – Pinion gear E-clip (Not Spared)
10 – Compile exit upper guide (Not
Spared)
11 – Stacker main drive gear shaft (Not
Spared)
12 – Stacker main drive gear (Not
Spared)
13 674K03550 Paper pusher motor assembly
(MOT11-083) (REP 11.51-171)
14 – Pinion gear (Not Spared)
15 – Pinion gear shaft (Not Spared)
16 130E12830 Paper pusher upper sensor (Q11-
171)/Paper pusher lower sensor
(Q11-173) (REP 11.54-171)
17 – Stapler gate safety switch (S11-
365) (P/O PL 11.145 Item 22)
18 – Sensor screw (P/O PL 11.145 Item
22)
19 – Sensor assembly bracket (P/O PL
11.145 Item 22)
20 – Lower exit guide (Not Spared)
21 – Pusher dampers (P/O PL 11.145
Item 8)
22 674K03541 Sensor assembly (REP 11.54-171)
23 013E37150 Stacker shaft bearing (plastic) (REP
11.37-171)
24 110K13970 Top cover interlock switch (S11-
302)
25 006K33400 Stacker idler roll (REP 11.10-171)
26 – Top jam clearance guide assembly
(Not Spared) (REP 11.14-171)
27 – Not used
28 033K04581 Paddle wheel (NOTE) (REP
11.101-171)
29 110K13980 Front door interlock switch (S11-
303)
NOTE: HFSI. To reset the HFSI count, refer to dC135.
