Xerox® WorkCentre® 5890 Family
PL 60.30
Parts Lists

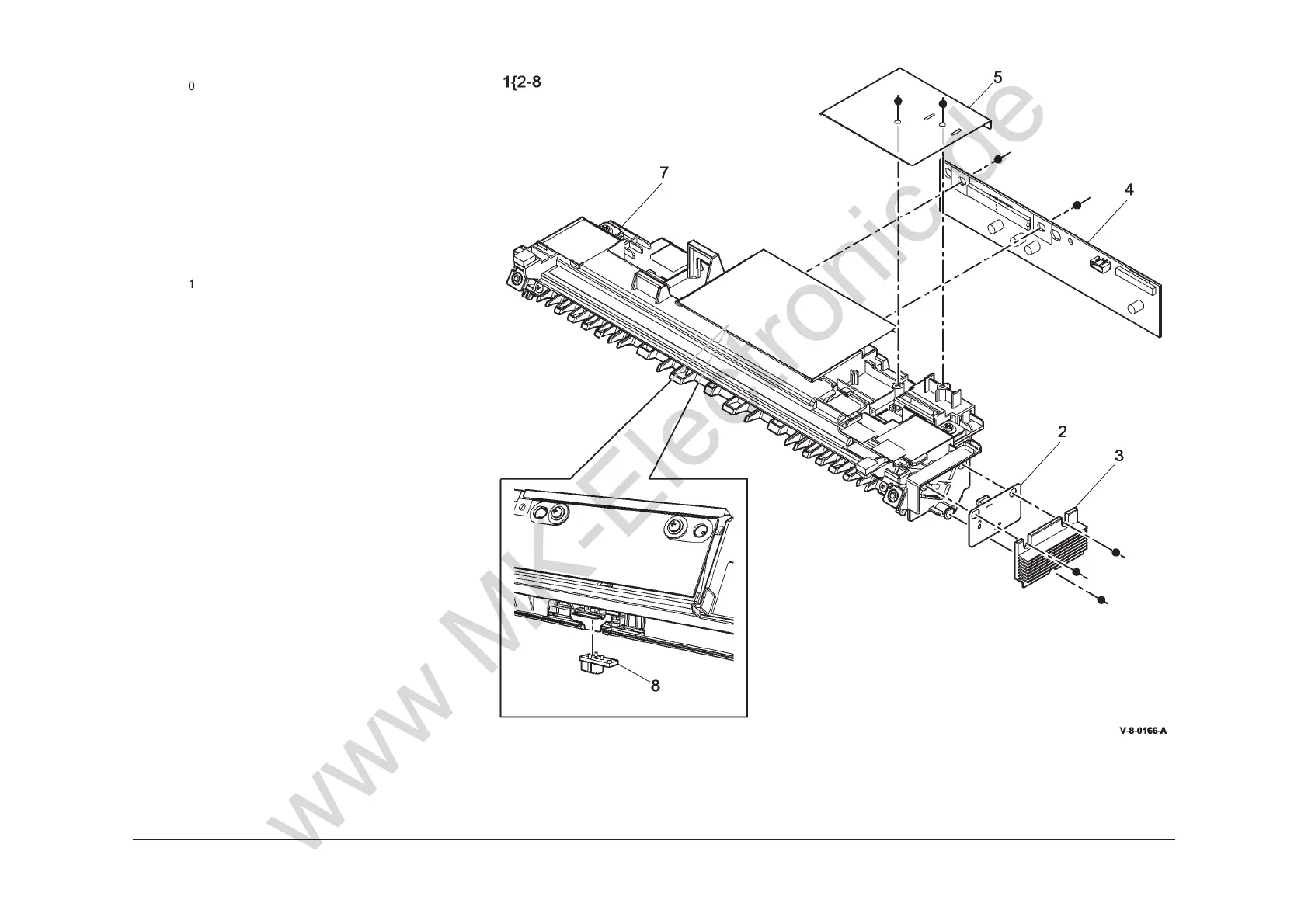

PL 60.30 Side 2 Scan Assembly
Item Part Description
1
041K06851 Side 2 scan assembly (REP 60.6,
ADJ 60.4)
2 – Side 2 LED lamp PWB (P/O PL
60.30 Item 1)
3 – Side 2 LED lamp assembly (P/O PL
60.30 Item 1)
4 – Side 2 CCD PWB (P/O PL 60.30
Item 1)
5 – Side 2 LED drive PWB cover (P/O
PL 60.30 Item 1)
6 – Not used
7 – Scan carriage unit (P/O PL 60.30
Item 1)
8 130E19060 Side 2 reg sensor (Q05-343)
