Xerox® WorkCentre® 5890 Family
PL 70.40
Parts Lists

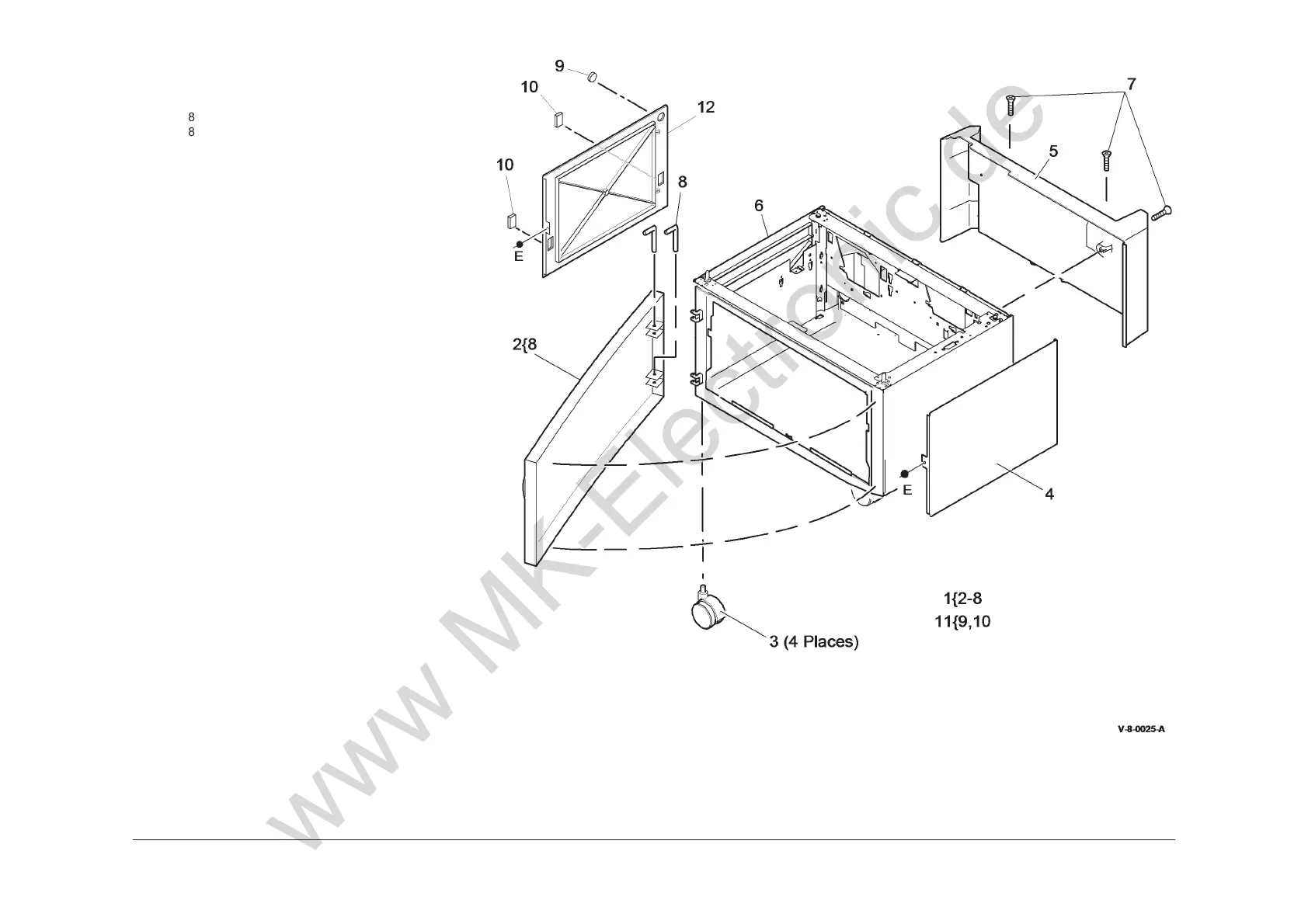

PL 70.40 Stand Assembly
Item Part Description
1
– Stand unit (complete) (Not Spared)
2 – Front door (Not Spared) (NOTE)
3 859K03060 Castor (locking)
4 822E26820 Right cover
5 – Rear cover (Not Spared)
6 – Stand base (Not Spared)
7 – Screw (M6x30)
8 – Door hinge pin (P/O PL 70.40 Item
2)
9 – Cover infill 1 (P/O PL 70.40 Item
11)
10 – Cover infill 2 (P/O PL 70.40 Item
11)
11 – Cover infill kit (Not Spared)
12 – Left cover (Not Spared)
NOTE: Hinge pins (PL 70.40 Item 8) are supplied with the
front door.
