Xerox® WorkCentre® 5890 Family
PL 11.106
Parts Lists

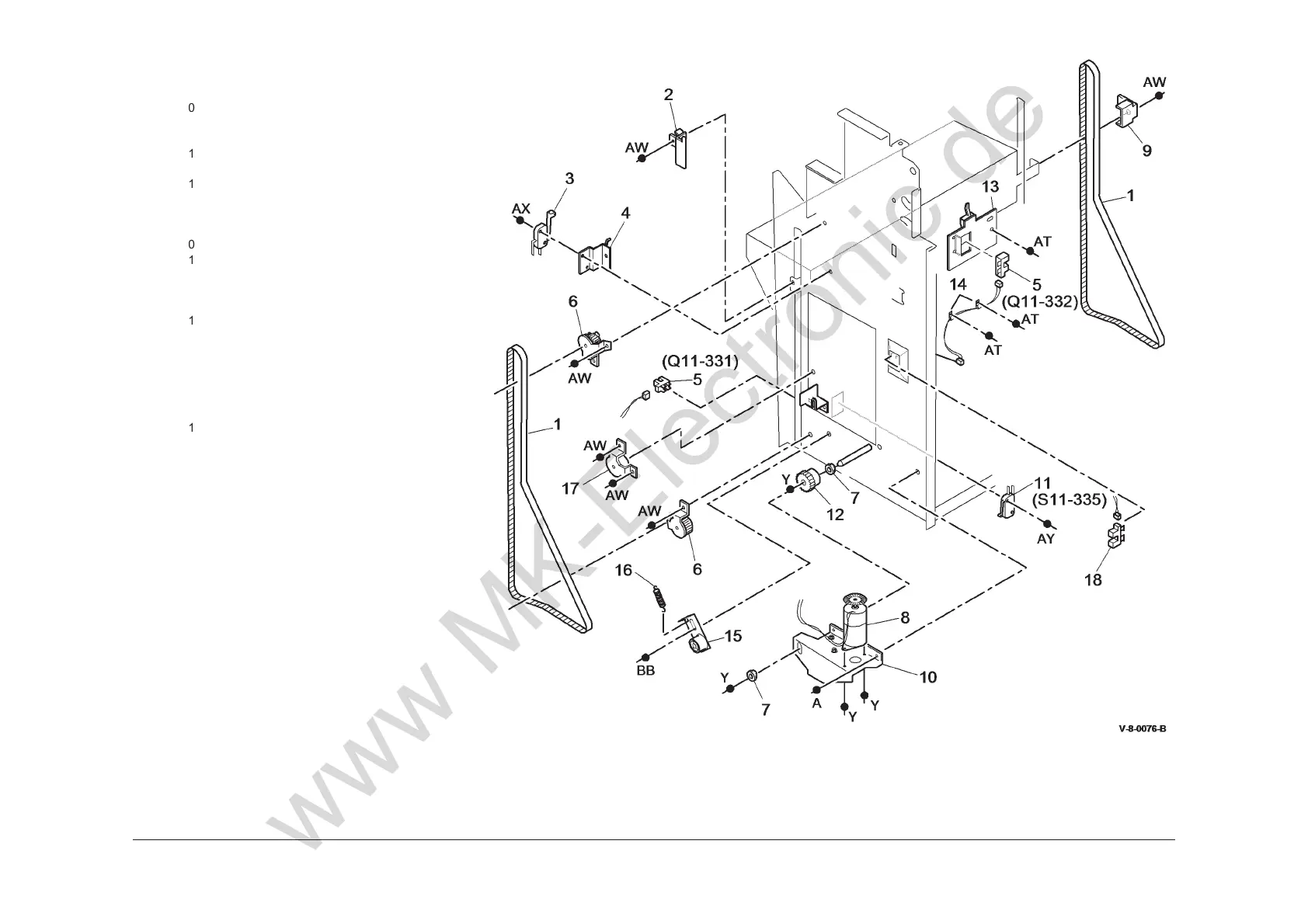

PL 11.106 1K LCSS Bin 1 Control
C
omponents
Item Part Description
1
023E30710 Bin 1 drive belt (REP 11.5-120)
2 – Rear belt clamp (Not Spared) (ADJ
11.1-120)
3 110E20180 Bin 1 upper limit switch (S11-334)
4 – Sensor bracket (Not Spared)
5 130E10360 Bin 1 90% full sensor (Q11-331),
Bin 1 upper level sensor (Q11-332)
(REP 11.9-120)
6 – Pulley (Not Spared)
7 013E37470 Bearing
8 127K55891 Bin 1 elevator motor (MOT11-030)
9 – Front belt clamp (Not Spared) (ADJ
11.1-120)
10 – Motor bracket (Not Spared)
11 110K13990 Bin 1 lower limit switch (S11-335)
12 – Pulley assembly (Not Spared)
13 – Sensor support (Not Spared)
14 – P-clamp (Not Spared)
15 – Belt tensioner (Not Spared)
16 – Spring (Not Spared)
17 – Idler (Not Spared)
18 130E20380 Bin 1 motor encoder sensor (Q11-
336)
