Xerox® WorkCentre® 5890 Family
PL 11.110
Parts Lists

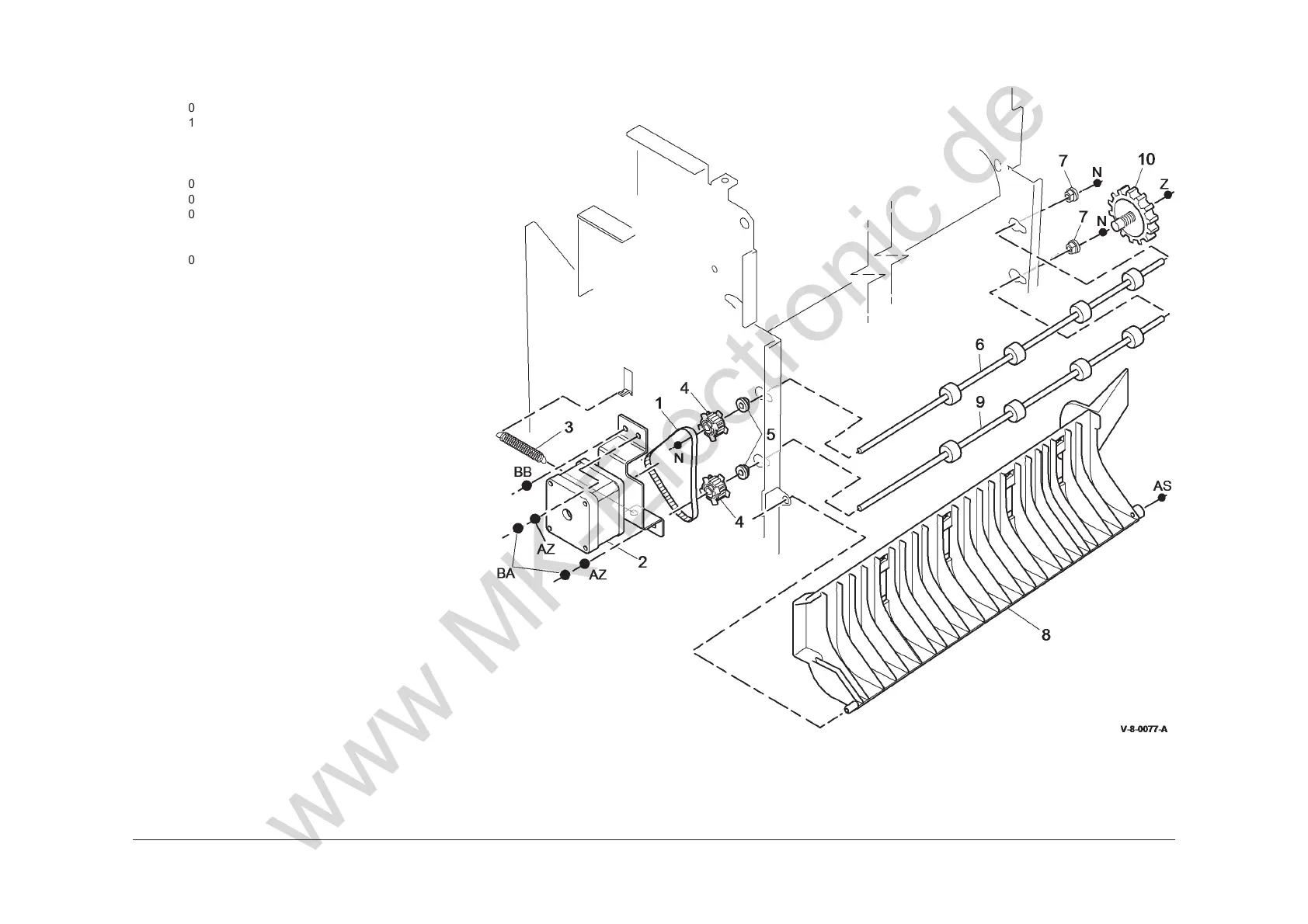

PL 11.110 1K LCSS Paper Entry
T
ransport
Item Part Description
1
023E30690 Input drive belt (REP 11.2-120)
2 127K55820 Transport motor 1 (MOT11-000)
(REP 11.2-120)
3 – Spring (Not Spared)
4 – Pulley (Not Spared)
5 013E25790 Nylon bearing
6 006K27980 Feed roll shaft (short)
7 013E37460 Bearing
8 – Jam clearance guide (REF: PL
11.122 Item 1)
9 006K31670 Feed roll shaft (long)
10 – Thumb wheel (Not Spared)
To Next Page
