Xerox WorkCentre 5890 User Manual

August 2015
5-72
Xerox® WorkCentre® 5890 Family
PL 11.140
Parts Lists

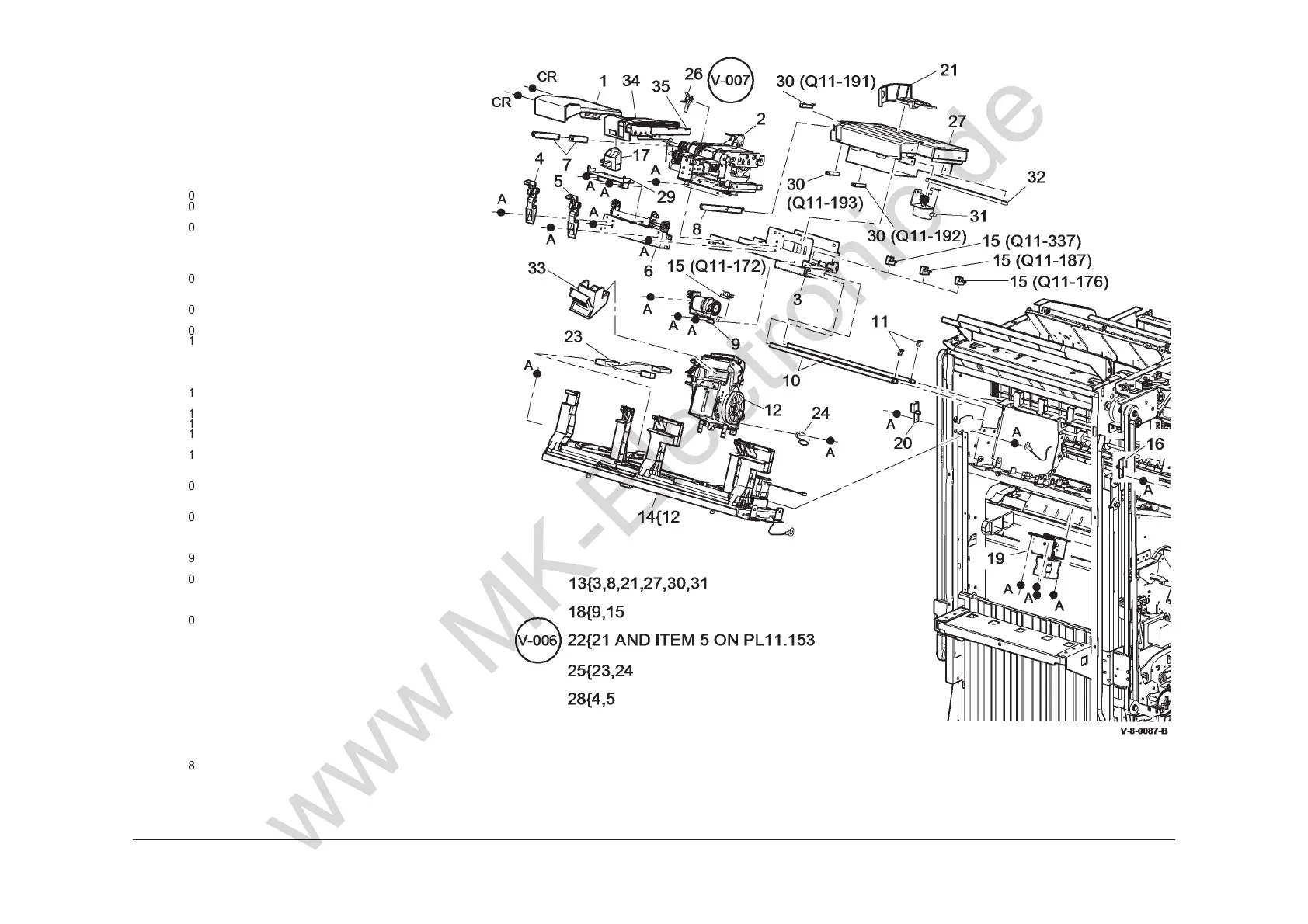

PL 11.140 HVF Ejector, Pressing and
S
upport (1 of 2)
Item Part Description
1
– Ejector front cover (Not Spared)
2 – Ejector assembly (P/O PL 31.14
Item 13) (REP 11.6-171)
3 – Offset module (Not Spared) (REP
11.9-171)
4 – Front pressing plate finger (P/O PL
11.140 Item 28) (REP 11.7-171)
5 – Rear pressing plate finger (P/O PL
11.140 Item 28) (REP 11.7-171)
6 049K23160 Pressing plate bracket
7 003K20653 Front support finger (NOTE) (W/
TAG V-009) (REP 11.8-171)
8 003K20663 Rear support finger (NOTE) (W/
TAG V-009) (REP 11.8-171)
9 – Support finger motor assembly (P/
O PL 11.140 Item 18)
10 – Offset rod (Not Spared)
11 019K13380 Offset rod KL clip
12 – Stapler module (P/O PL 11.140
Item 14) (REP 11.2-171)
13 032K09652 Rear tamper assembly (REP 11.15-
171)
14 029K04631 Staple assembly (REP 11.2-171)
15 130E12830 Pressing and support encoder
sensor (Q11-172), Bin 1 offset
sensor (Q11-337), Offset index
sensor (Q11-187), Offset away
sensor (Q11-176)
16 130K75470 Bin 1 upper level sensor (receiver)
(Q11-332) (REP 11.76-171)
17 130K75900 Bin 1 rear wall sensor (Q11-196)
18 127K56551 Motor encoder assembly
19 127K56580 Bin 1 offset motor (MOT11-034)
(REP 11.9-171)
20 130K75480 Bin 1 upper level sensor
(transmitter) (Q11-332) (REP
11.76-171)
21 032E35301 Rear tamper arm (W/O TAG V-006)
– – Rear tamper arm (reinforced) (P/O
PL 11.140 Item 13) (W/TAG V-006)
22 032E35311 Tamper arm set (W/TAG V-006)
23 – Stapler harness (P/O PL 11.140
Item 25)
24 – P-clip (P/O PL 11.140 Item 25)
25 962K82410 Stapler harness and p-clip
assembly
26 033K04850 Ejector paddle assembly (W/TAG
V-007) (REP 11.100-171)
27 – Rear tamper (P/O PL 11.140 Item
13)
28 003K21101 Pressing plate kit (NASG)
29 – Ejector assembly safety cover (P/O
PL 31.11 Item 15)
30 – Support finger home sensor (Q11-
192), Support finger init sensor
(Q11-191), Support finger out
sensor (Q11-193) (P/O PL 11.140
Item 13)
31 – Rear tamper motor (MOT11-004)
(P/O PL 11.140 Item 13)
32 – Rear tamper drive belt (P/O PL
11.140 Item 13)
33 – Staple cartridge (REF: PL 26.10
Item 22)
34 822E18820 Ejector belt cover (REP 11.6-171)
35 – Front support finger guide
NOTE: If both front and rear support finger assemblies are
needed, then order PL 31.14 Item 16.
