August 2015
5-90
Xerox® WorkCentre® 5890 Family
PL 11.177
Parts Lists

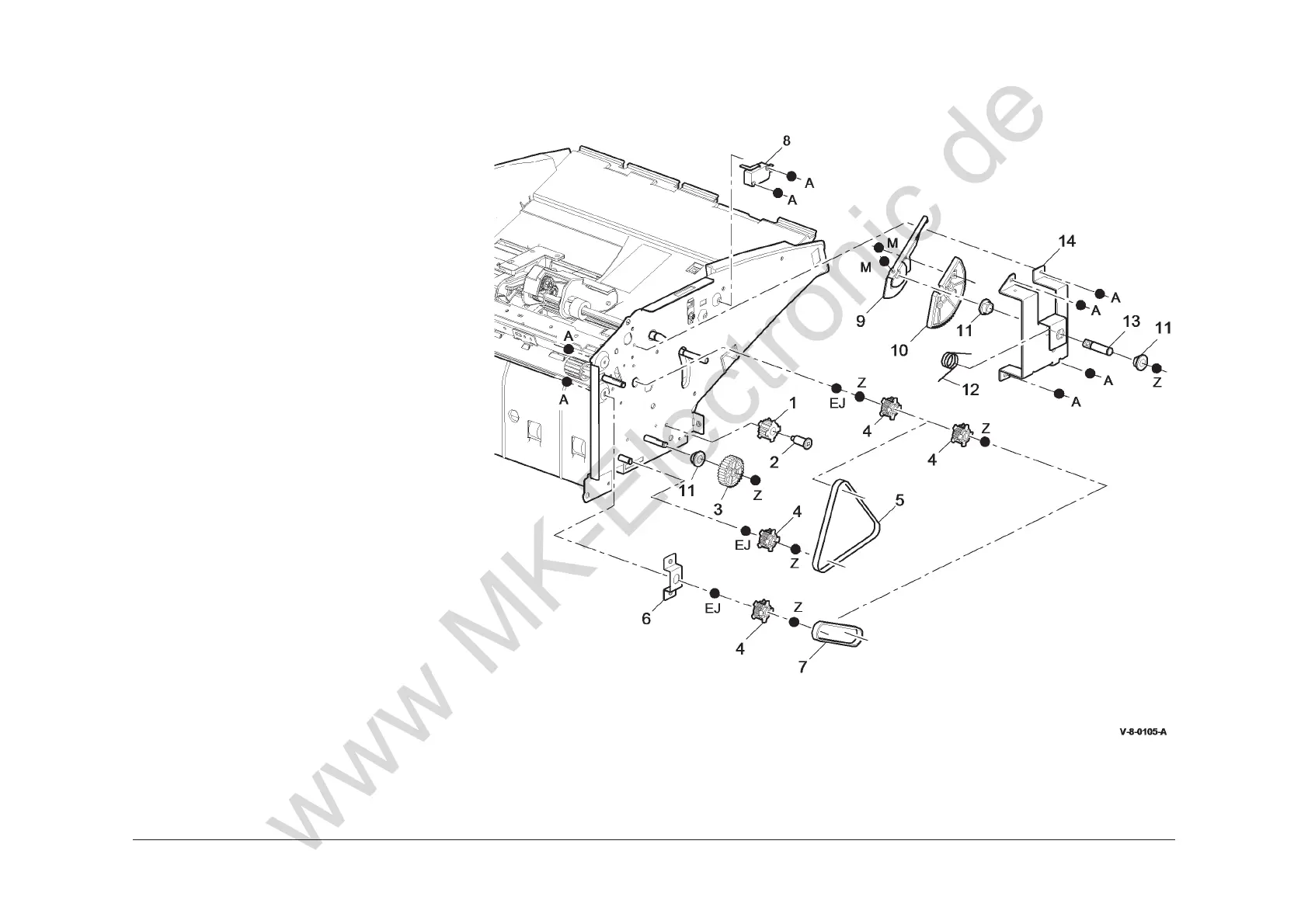

PL 11.177 Inserter Main Drives (1 of 3)
Item Part Description
1
– Idler (Not Spared)
2 – Idler pin (Not Spared)
3 – Gear (Not Spared)
4 – Pulley (Not Spared)
5 – Belt (Not Spared)
6 – Bracket (Not Spared)
7 – Jam drive belt (Not Spared)
8 – Top cover interlock switch (S11-
306) (Not Spared) (REP 11.87-171)
9 – Loading lever (Not Spared)
10 – Loading gear (Not Spared)
11 – Bearing (Not Spared)
12 – Torsion spring (Not Spared)
13 – Loading shaft (Not Spared)
14 – Front loading bracket (Not Spared)
To Next Page
