5-66
Xerox® WorkCentre® 5890 Family
PL 11.118
Parts Lists

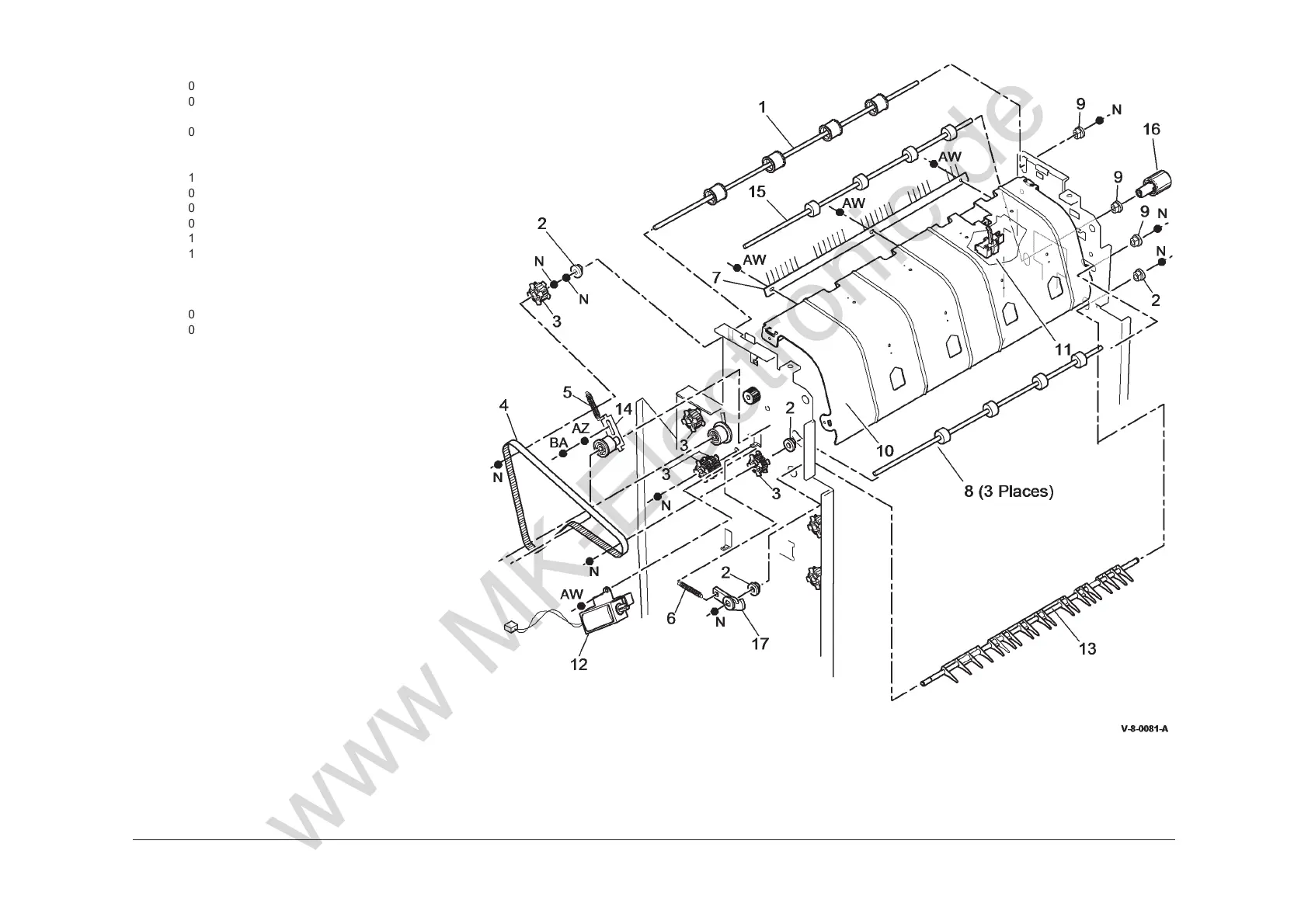

PL 11.118 1K LCSS Bin 0 Entry
Item Part Description
1
006K27960 Ejector drive shaft
2 013E25790 Nylon bearing
3 – Pulley (Not Spared)
4 023E30700 Intermediate paper drive belt
5 – Spring (Not Spared)
6 – Spring (Not Spared)
7 115E12830 Static eliminator
8 006K27980 Feed roll shaft (short)
9 013E37460 Bearing
10 032K04550 Paper guide
11 130E11440 Top exit sensor (Q11-130)
12 121K45290 Diverter solenoid (SOL11-002)
13 – Shaft diverter assembly (P/O PL
31.13 Item 6) (W/TAG L-003)
14 – Belt tensioner (Not Spared)
15 006K27970 Drive shaft assembly
16 003K17531 Jam clearance knob
17 – Actuator (Not Spared)
