Xerox WorkCentre 5890 User Manual

August 2015
5-131
Xerox® WorkCentre® 5890 Family
PL 70.68
Parts Lists

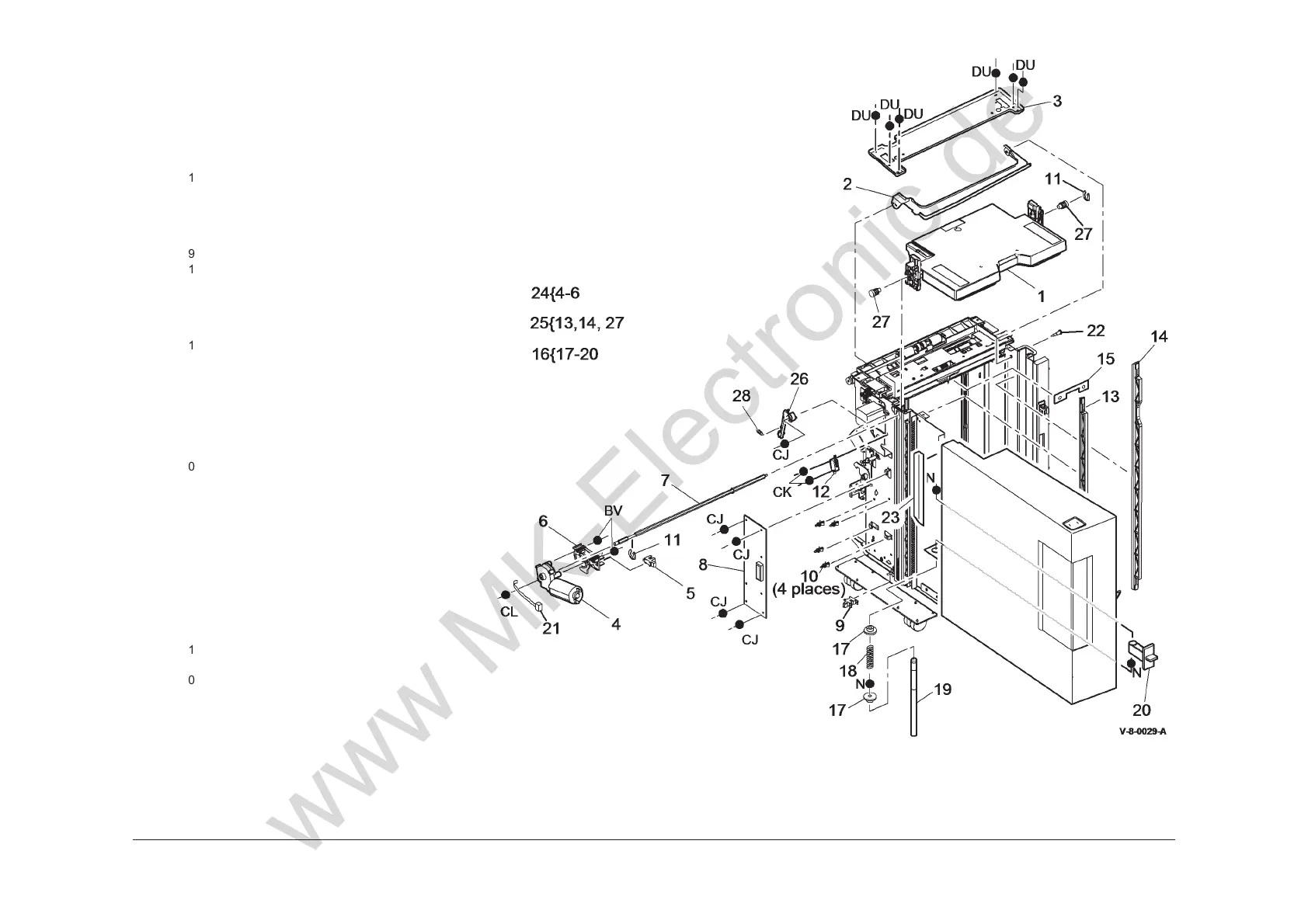

PL 70.68 Tray 6 Lift assembly (1 of 2)
Item Part Description
1
– Tray assembly (complete) (REF: PL
70.70 Item 1)
2 – Crash bar (Not Spared)
3 – Frame top brace (Not Spared)
4 – Elevator motor (MOT76-010) (P/O
PL 70.68 Item 24) (REP 70.8)
5 130K74380 Elevator motor encoder sensor
(Q76-340) (REP 70.7)
6 – Elevator motor bracket (P/O PL
70.68 Item 24)
7 – Elevator motor shaft (Not Spared)
8 960K35024 Tray 6 control PWB
9 130K75511 Stack down sensor (Q76-335)
(REP 70.15)
10 – Standoff (Not Spared)
11 – Tray level drive gear clip (Not
Spared)
12 110E06961 Upper limit switch (S76-412) (REP
70.9)
13 – Rear elevator rack (P/O PL 70.68
Item 25) (REP 70.13)
14 – Front elevator rack (P/O PL 70.68
Item 25) (REP 70.13)
15 – Retard roller shield (P/O PL 80.47
Item 1)
16 003K20950 Shipping handle assembly
17 – Shipping pin bearing (P/O PL 70.68
Item 16)
18 – Shipping pin spring (P/O PL 70.68
Item 16)
19 – Shipping pin (P/O PL 70.68 Item
16)
20 – Shipping pin handle (P/O PL 70.68
Item 16)
21 – Cable tie (Not Spared)
22 – Clinch stud (Not Spared)
23 – Cable holder (Not Spared)
24 127K56330 Elevator motor assembly (REP
70.8)
25 007K19660 Elevator rack assembly (REP
70.13)
26 – Upper limit switch actuator (Not
Spared)
27 – Tray level drive gear (P/O PL 70.68
Item 25) (REP 70.13)
28 – Actuator spring (Not Spared)
