Xerox WorkCentre 5890 User Manual

August 2015
5-21
Xerox® WorkCentre® 5890 Family
PL 10.25
Parts Lists

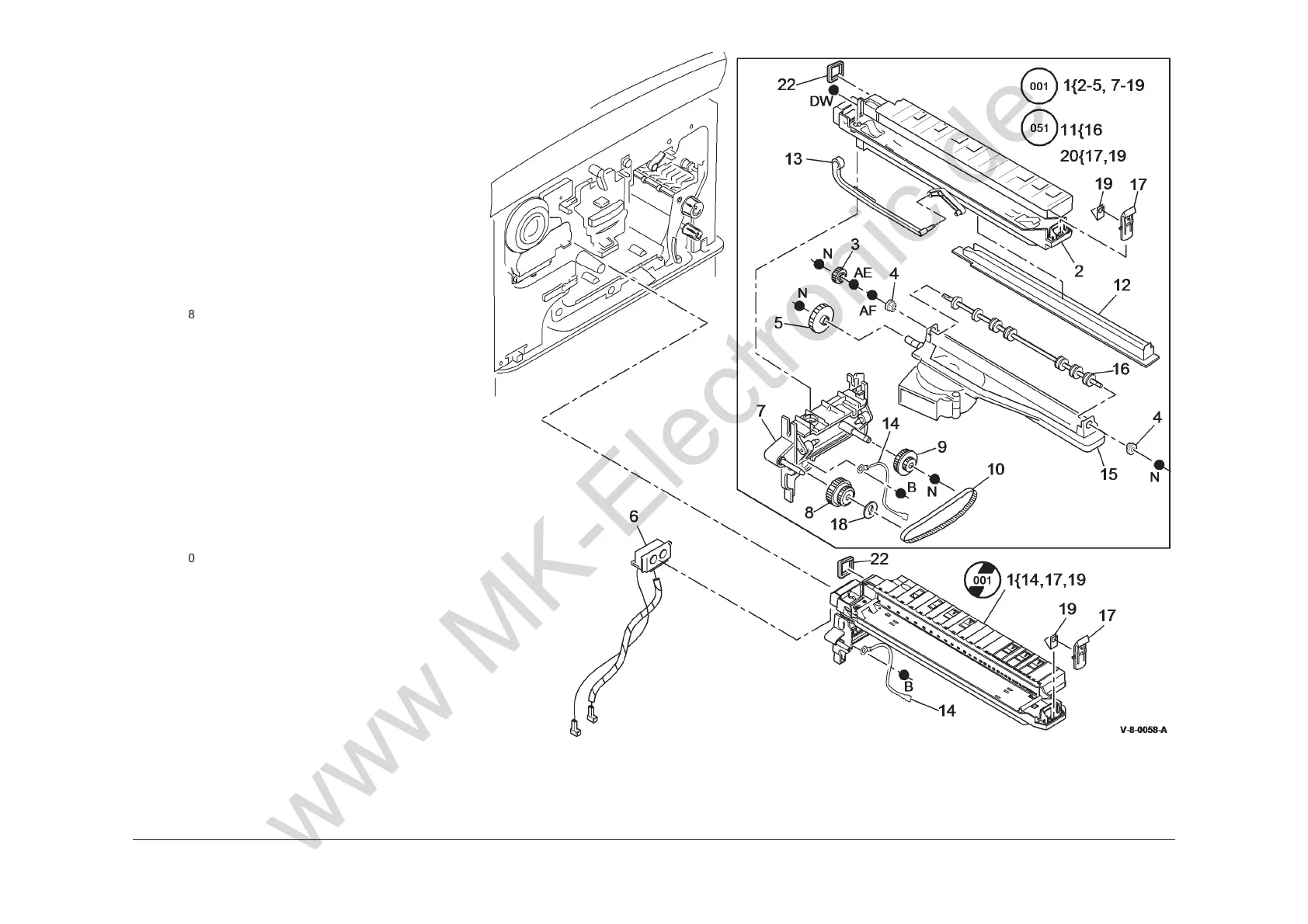

PL 10.25 Short Paper Path Assembly
Item Part Description
1
– Short paper path assembly (P/O PL
31.11 Item 9) (W/O TAG 001) (REP
10.1)
– – Short paper path assembly (P/O PL
31.11 Item 9) (W/TAG 001) (REP
10.1)
2 – Corotron carrier (P/O PL 10.25 Item
1)
3 – Gear (P/O PL 10.25 Item 1) (16T)
4 – Bearing (P/O PL 10.25 Item 1)
5 – Gear (P/O PL 10.25 Item 1) (32T)
6 – Transfer/Detack harness (REF: PL
90.20 Item 9)
7 – Intermediate drive assembly (P/O
PL 10.25 Item 1)
8 807E15940 Gear/Pulley (28T/25G)
9 – Gear/Pulley (P/O PL 10.25 Item 1)
(16T/30G)
10 – Intermediate drive belt (P/O PL
10.25 Item 1) (REP 10.15)
11 – Drive roll repair kit (REF: PL 31.13
Item 9) (W/TAG 051)
12 – Ozone duct (P/O PL 10.25 Item 1)
13 – Push rod (P/O PL 10.25 Item 1)
14 – Ground harness (P/O PL 10.25
Item 1)
15 – Base (P/O PL 10.25 Item 1)
16 – Roll assembly (P/O PL 10.25 Item
11)
17 – Corotron carrier latch (P/O PL
10.25 Item 20)
18 028E16630 Snap on washer (M6)
19 – Spring clip (P/O PL 10.25 Item 20)
20 – 4B latch kit (P/O PL 31.12 Item 7)
21 – Not used
22 – Carrier seal (P/O PL 31.11 Item 6)
NOTE: For the registration and halo bias contact, refer to PL
80.15 Item 23.
