Xerox WorkCentre 5890 User Manual

August 2015
5-81
Xerox® WorkCentre® 5890 Family
PL 11.162
Parts Lists

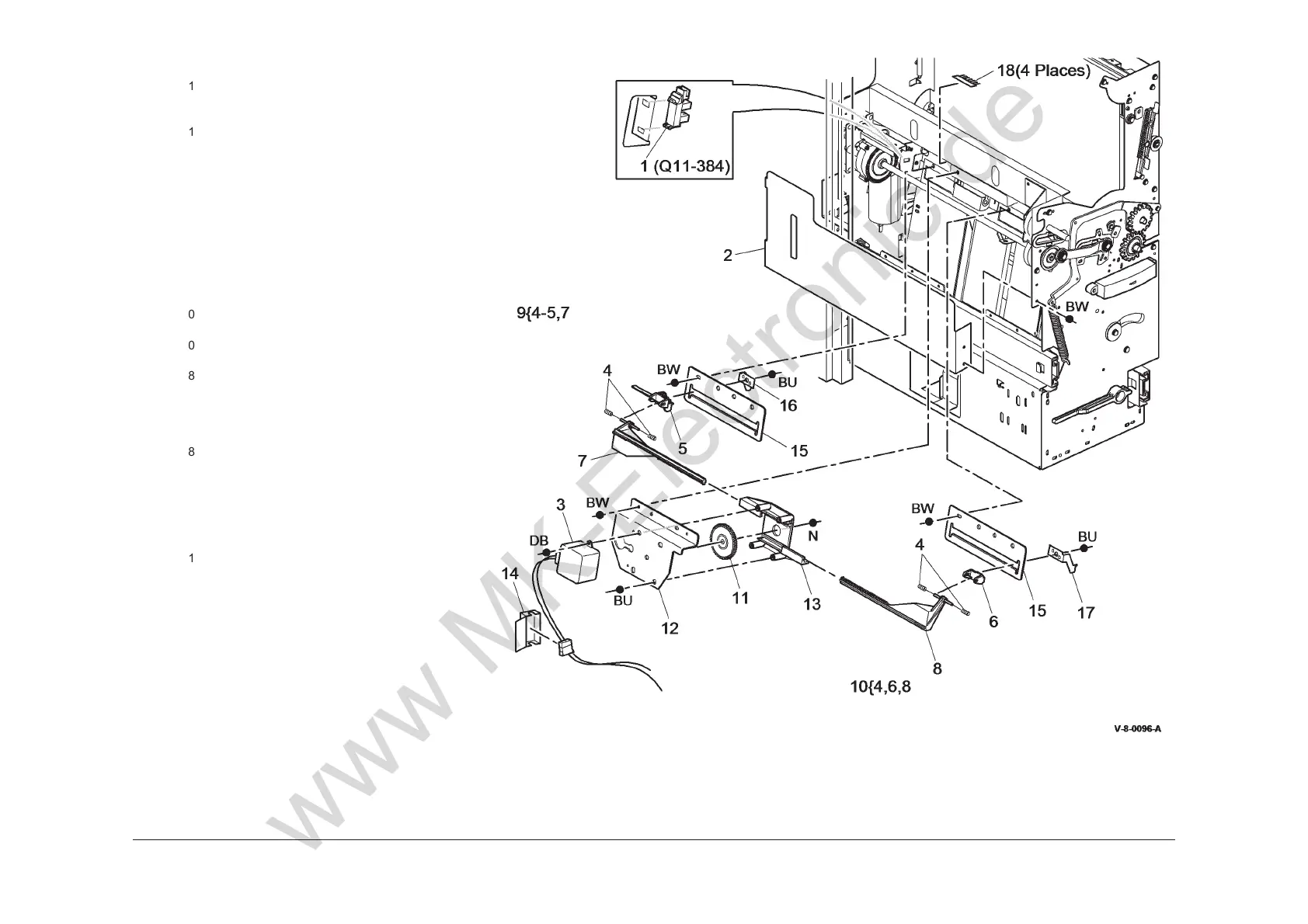

PL 11.162 HVF BM Tamper Assembly
Item Part Description
1
107E22600 BM Tamper 1 home sensor (Q11-
384)
2 – LH Frame plate (Not Spared)
3 127K47660 BM Tamper 1 motor (MOT 11-066)
(REP 11.30-171)
4 – BM Tamper spring (P/O PL 11.162
Item 10)
5 – BM Rear tamper arm (P/O PL
11.162 Item 9) (REP 11.30-171)
6 – BM Front tamper arm (P/O PL
11.162 Item 10) (REP 11.30-171)
7 – BM Rear tamper rack (P/O PL
11.162 Item 9) (REP 11.30-171)
8 – BM Front tamper rack (P/O PL
11.162 Item 10) (REP 11.30-171)
9 007K13190 BM Rear tamper assembly (REP
11.30-171)
10 007K13180 BM Front tamper assembly (REP
11.30-171)
11 807E15450 BM Tamper gear (REP 11.30-171)
12 – BM Tamper bracket (Not Spared)
(REP 11.30-171)
13 – BM Tamper rack guide (Not
Spared) (REP 11.30-171)
14 802E59410 BM Connector cover
15 – BM Tamper guide plate (Not
Spared) (REP 11.30-171)
16 – BM Rear tamper finger (Not
Spared) (REP 11.30-171)
17 – BM Front tamper finger (Not
Spared) (REP 11.30-171)
18 125K03593 BM Static eliminator
