Xerox® WorkCentre® 5890 Family
PL 80.22
Parts Lists

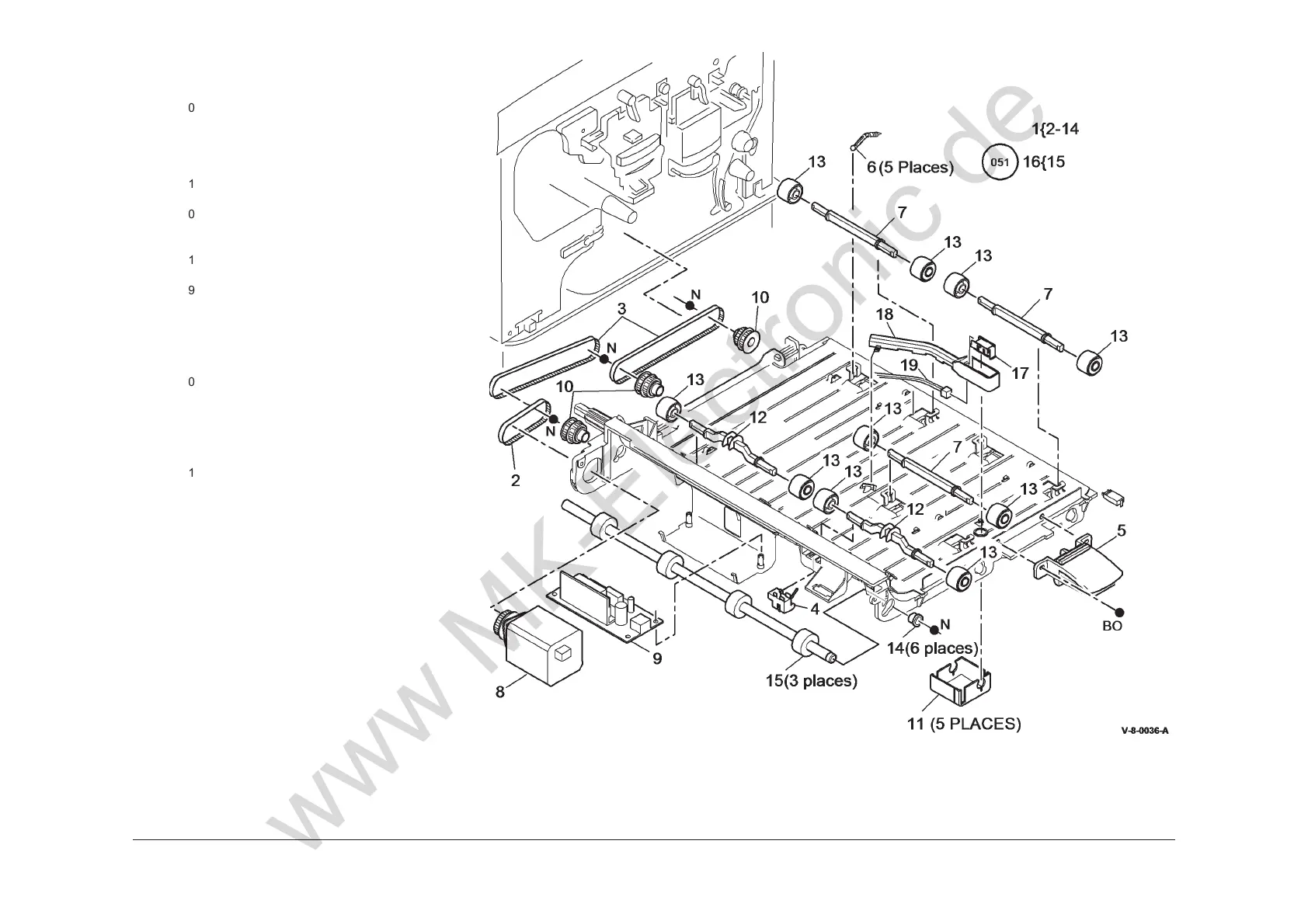

PL 80.22 Duplex Transport (45-55
p
pm)
Item Part Description
1
059K84720 Duplex transport (REP 80.5)
2 – Drive belt (76T) (P/O PL 80.22 Item
1) (REP 80.6)
3 – Drive belt (285T) (P/O PL 80.22
Item 1) (REP 80.6)
4 130E12070 Duplex sensor (Q83-160) (REP
80.22)
5 003K20760 Jam clearance latch
6 – Spring (P/O PL 80.22 Item 1)
7 – Nip roll shaft (P/O PL 80.22 Item 1)
8 127K53190 Duplex motor (MOT83-060) (REP
80.6)
9 960K52720 Duplex motor driver PWB (REP
80.6)
10 – Drive pulley (P/O PL 80.22 Item 1)
11 – Lower cover (P/O PL 80.22 Item 1)
12 – Duplex nip roll shaft (P/O PL 80.22
Item 1)
13 059K49400 Nip roll assembly
14 – Bearing (P/O PL 80.22 Item 1)
15 – Duplex drive roll shaft (P/O PL
80.22 Item 16)
16 – Drive roll repair kit (REF: PL 31.13
Item 9) (W/TAG 051)
17 123E02481 Duplex transport LED (REP 80.48)
18 – LED harness guide (Not Spared)
19 – Duplex transport LED harness (Not
Spared)
