Xerox® WorkCentre® 5890 Family
PL 11.56
Parts Lists

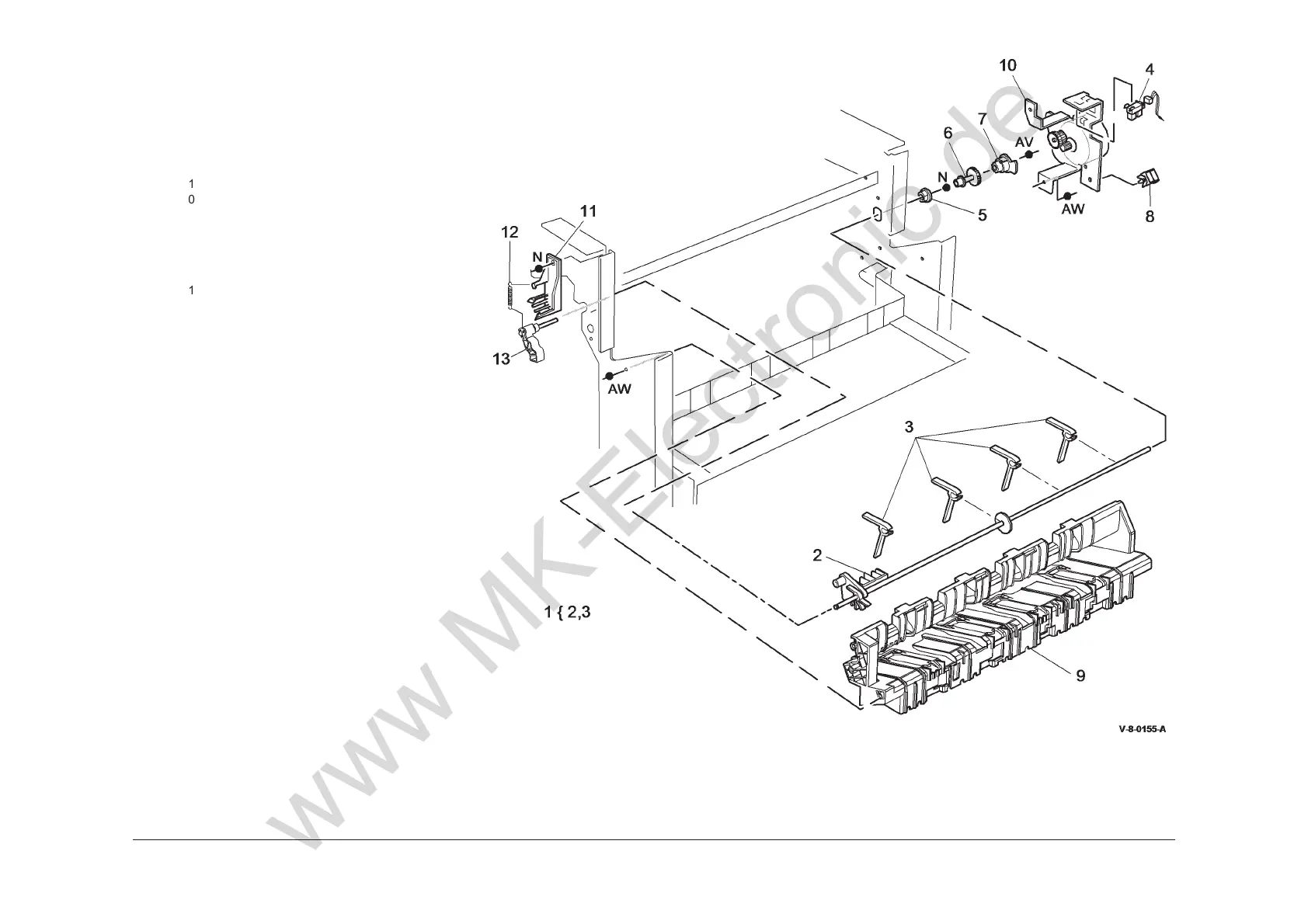

PL 11.56 LVF BM Paddle Shaft
A
ssembly
Item Part Description
1
– Paddle shaft assembly (REF: PL
31.12 Item 6) (REP 11.12-150)
2 – Shaft (P/O PL 11.56 Item 1)
3 – Paddle (P/O PL 11.56 Item 1)
(NOTE)
4 130E10360 Paddle roll home sensor (Q11-326)
5 013E25790 Bearing
6 – Gear (Not Spared)
7 – Flag (Not Spared)
8 – Cable clamp (Not Spared)
9 – Output cover (REF: PL 11.50 Item
7)
10 127K55881 Paddle motor assembly (MOT11-
024) (REP 11.12-150)
11 – Spring bracket (Not Spared)
12 – Spring (Not Spared)
13 – Switch actuator (Not Spared)
NOTE: Paddles are also supplied (4 off) as a kit PL 31.12
Item 11.
