Xerox WorkCentre 5890

August 2015
5-130
Xerox® WorkCentre® 5890 Family
PL 70.64
Parts Lists

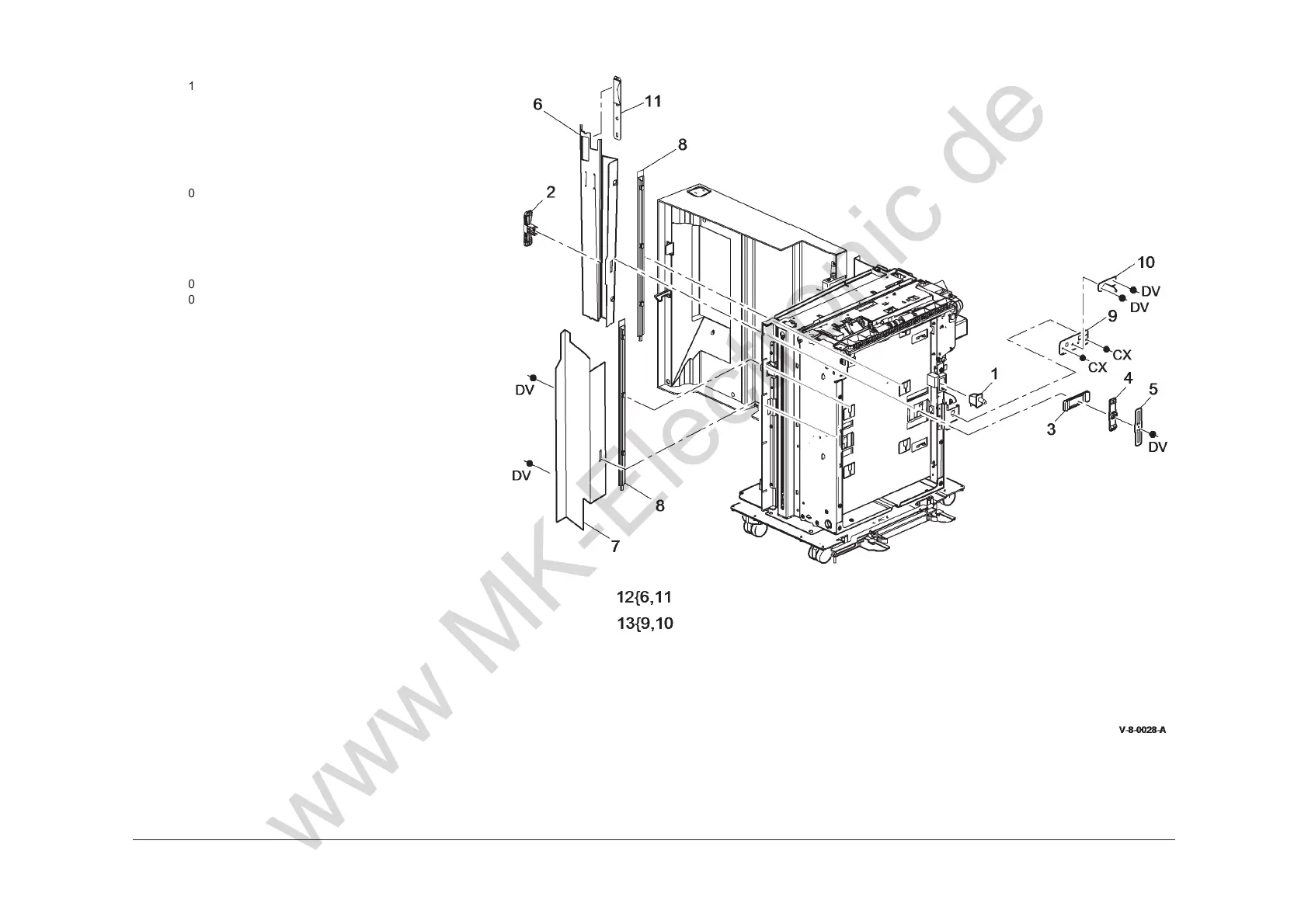

PL 70.64 Tray 6 Guides
Item Part Description
1
110E07300 Docking interlock switch (S76-310)
2 – Handle latch (Not Spared)
3 – Latch spacer (Not Spared)
4 – Slide latch (Not Spared)
5 – Spring leaf (Not Spared)
6 – Rear guide (P/O PL 70.64 Item 12)
7 – Front guide assembly (Not Spared)
8 038E34402 Guide strip
9 – Adjustment plate (P/O PL 70.64
Item 13)
10 – Docking pin (P/O PL 70.64 Item 13)
11 – Rear guide assembly spring (P/O
PL 70.64 Item 12)
12 038K16403 Rear guide assembly
13 029K04680 Docking pin assembly
