Xerox WorkCentre 5890 User Manual

August 2015
5-46
Xerox® WorkCentre® 5890 Family
PL 11.70
Parts Lists

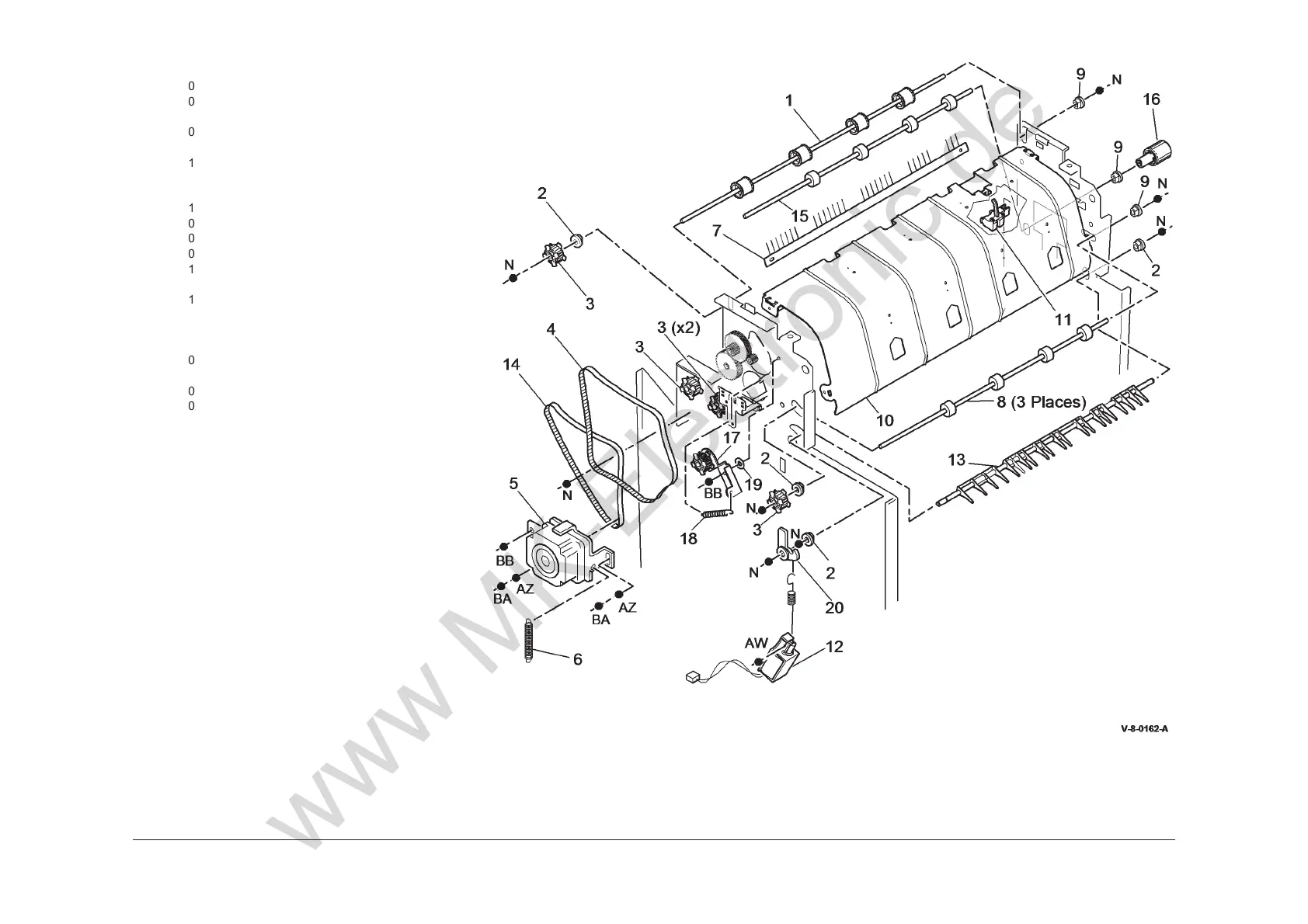

PL 11.70 LVF BM Bin 0 Entry
Item Part Description
1
006K27960 Top tray exit shaft
2 013E25790 Nylon bearing
3 – Pulley (Not Spared)
4 023E24330 Intermediate paper drive belt (REP
11.3-150)
5 127K55870 Transport motor 2 (MOT11-001)
(REP 11.4-150)
6 – Spring (Not Spared)
7 115E12830 Static eliminator
8 006K27980 Feed roll shaft (short)
9 013E37460 Bearing
10 032K04580 Paper guide (REP 11.46-150)
11 130E11440 Top exit sensor (Q11-130) (REP
11.46-150)
12 121K45010 Bin 0/Bin 1 diverter solenoid
(SOL11-002)
13 – Bin 0/Bin 1 diverter assembly (P/O
PL 31.13 Item 6)
14 023E24340 Paper output drive belt (REP 11.4-
150)
15 006K27970 Drive shaft assembly
16 003K17531 Jam clearance knob
17 – Belt tensioner (Not Spared) (ADJ
40.1)
18 – Spring (Not Spared)
19 – Washer (Not Spared)
20 – Actuator (Not Spared)
