Troubleshooting
WorkCentre 6505 Color Laser Multifunction Printer
User Guide
198
10. Reinstall the imaging unit:

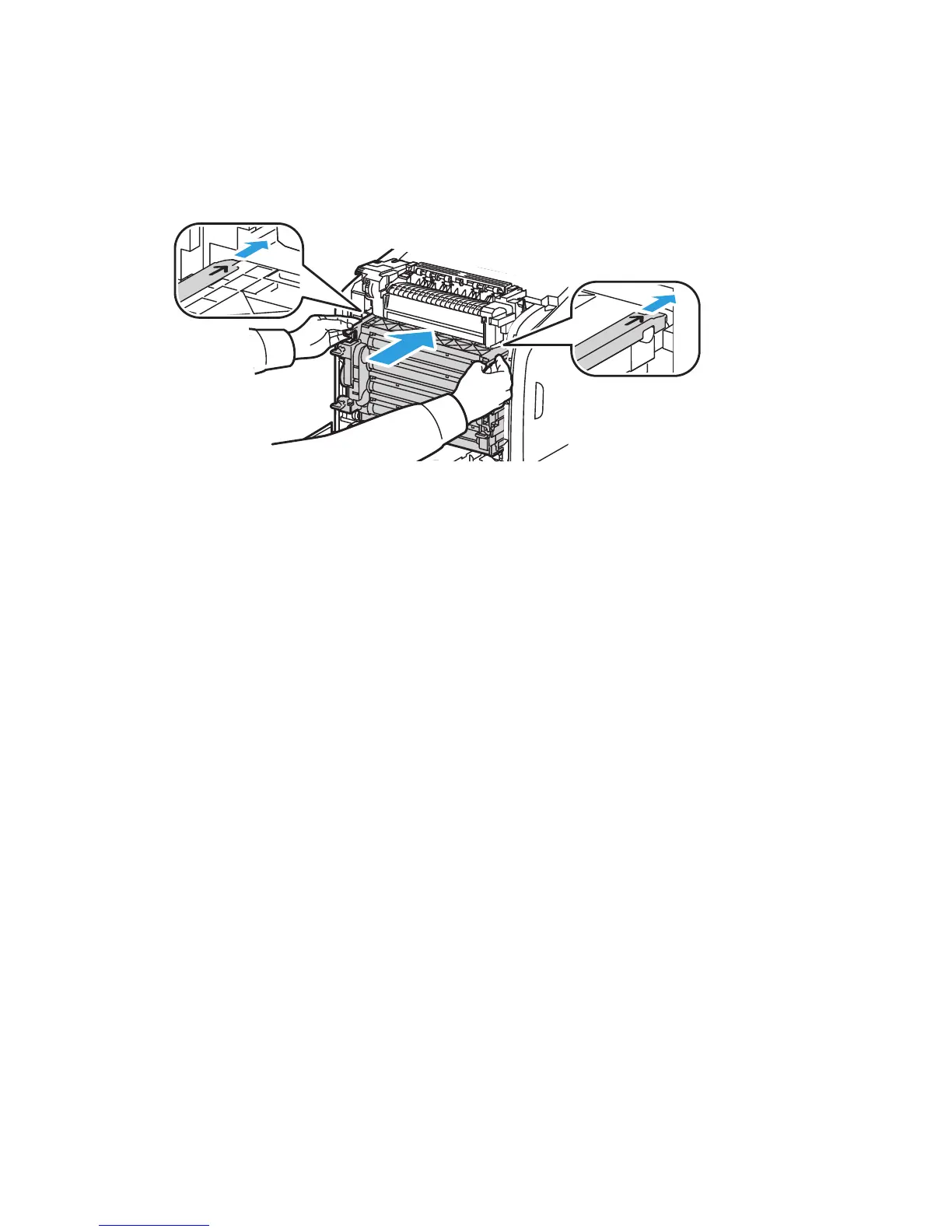

a. Grasp the unit by its peach-colored pull-tabs on the top edge and install the unit in the
printer. Make sure to insert the unit into the guides in the printer, then push the unit all the
way back into the printer.
b. Turn the four twist-locks to the right to lock the unit.
11. Fold the transfer belt unit back into place and close the printer front cover.
wc6505_043

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
