Xerox WorkCentre 6505 User Manual

Features
WorkCentre 6505 Color Laser Multifunction Printer
User Guide
20

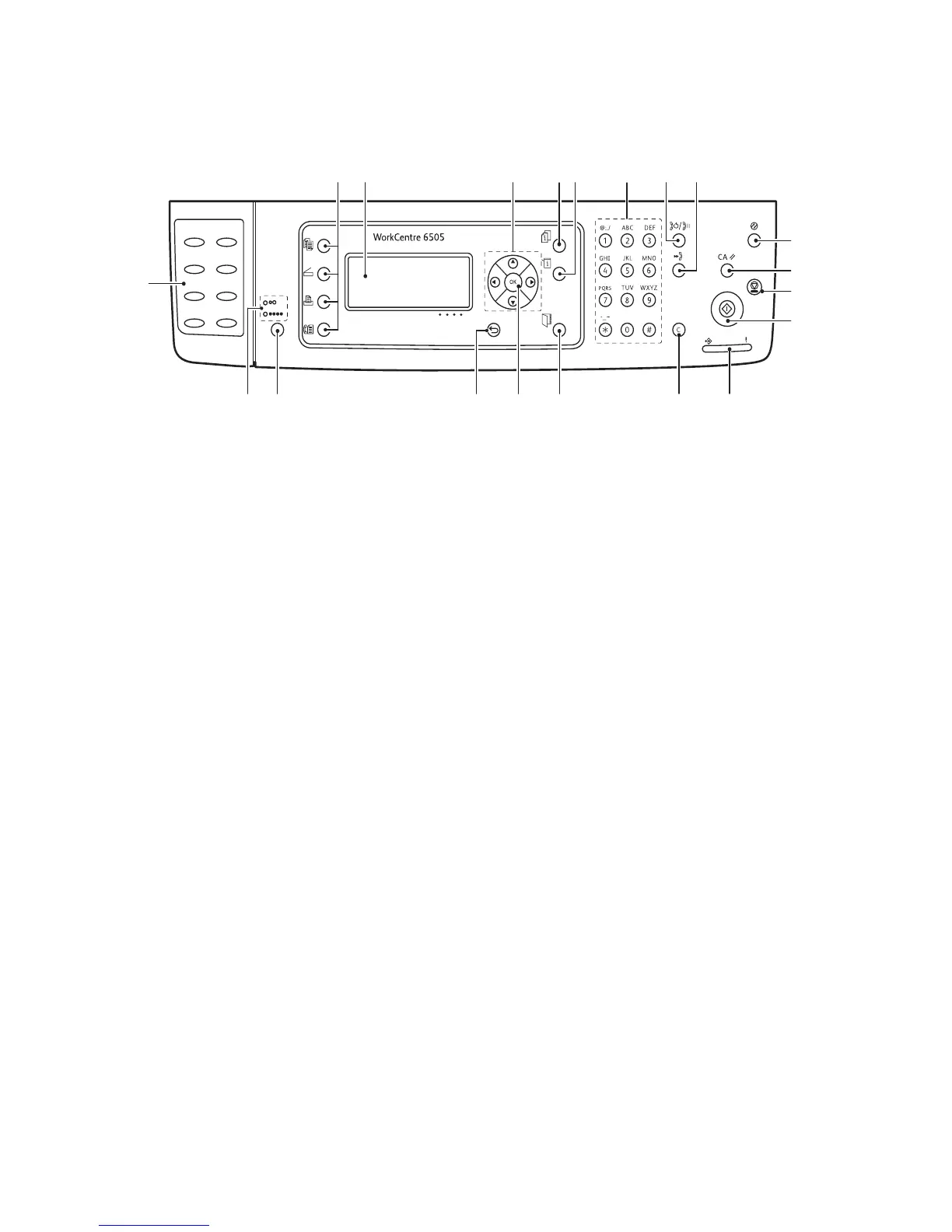

Control Panel
1. One Touch keypad: Use to speed dial a
phone number.
2. Copy, Scan, Print, and Fax buttons: Press to
use the Copy, Scan, Print, and Fax menus on
the display screen.
3. Display Screen: Shows status messages,
menus, and toner levels.
4. Arrow buttons: Scroll up, down, forward, and
back through the menus.
5. Job Status button: Press to check active job
status.
6. System button: Switches the display to the
System menus.
7. Alphanumeric keypad: Use to enter letters
and numbers for names and phone numbers.
8. Redial/Pause button: Press the button to
recall the last fax number used or to insert
pauses in fax numbers.
9. Speed Dial button: Press to access directories
of group or individual fax telephone
numbers.
10. Wake Up/Power Saver button: This light is
illuminated in power saver mode. Push the
button to exit Energy Saver mode.
11. Clear All button: Clears all text, numbers or
instructions.
12. Stop button: Cancels the current print job.
13. Start button: Press to start a copy, scan, or
fax job.
14. Status indicator light: The green or red light
indicates printer status.
• Lights green when the printer is ready to
receive data.
• Blinks green when the printer is busy
receiving data.
• Lights red to indicate an error condition
or warning that requires your attention.
• Blinks red when an error occurs that
requires technical support.
• Off when the printer is in Energy Saver
mode.
15. Cancel/Clear button: Cancels the current
print or copy job. In menus, deletes a single
character each time the button is pressed.
16. Address Book button: Press to access the Fax
and Email address books.
17. OK button: Press to accept the selected
setting.
18. Back/Return button: Press to go up one level
in the menu.
19. Color Mode button: Press to switch between
Color and Black and White modes for your
copy, fax, and scan jobs.
20. Black and White/Color indicator lights:
Upper light indicates Black and White mode.
Lower light indicates Color mode.
wc6505_006
1
10
11
12
13
2
3 56 8 9
4 7
17 14151619 1820

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
