Chapter3: Board Component Descriptions
User GPIO LEDs
[Figure 2-1, callout 22]

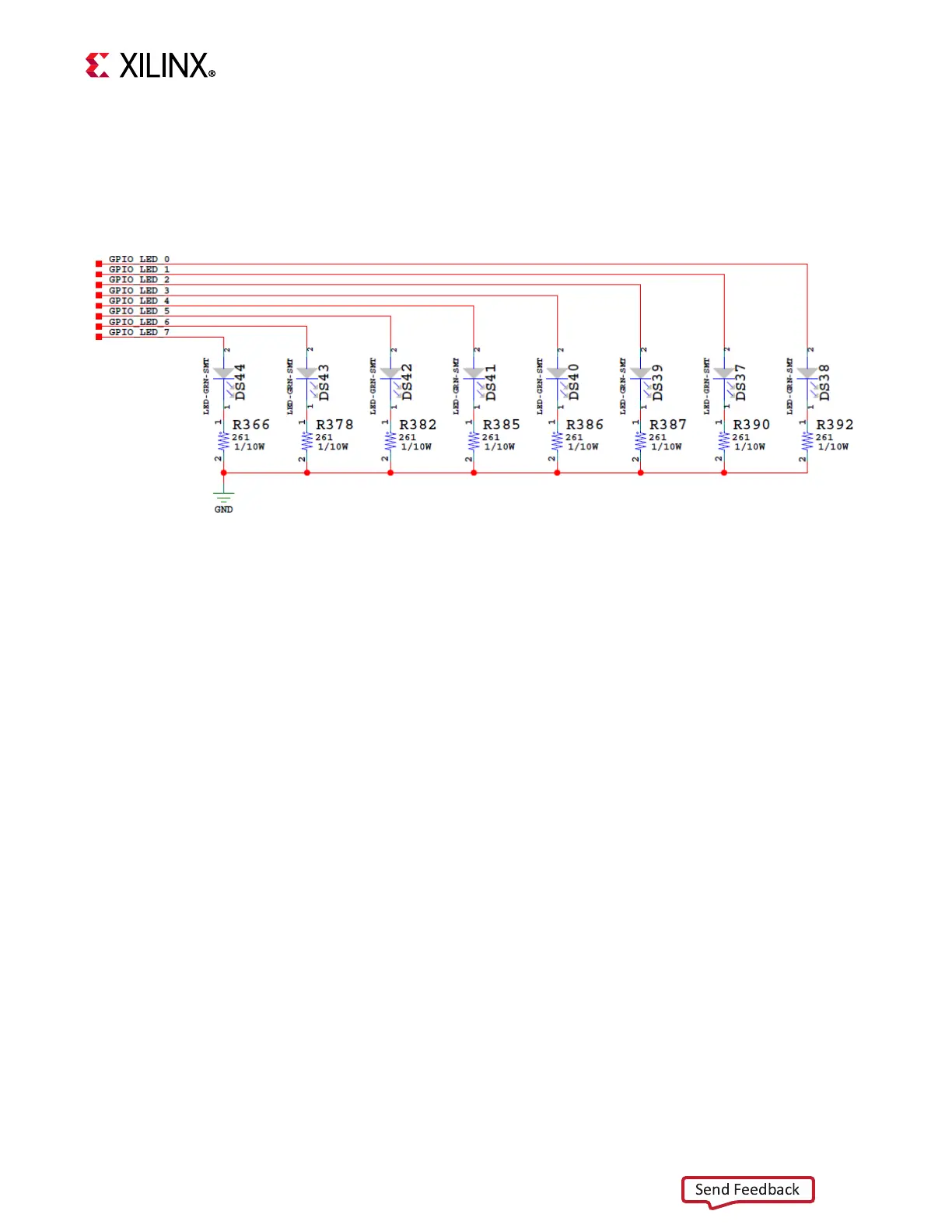

Figure 3-20 shows the GPIO LED circuit.
X-Ref Target - Figure 3-20
Figure3‐20: User LEDs
X18533-042017
