Chapter3: Board Component Descriptions
KCU116 Board Power System
[Figure 2-1, callout 33]
The KCU116 hosts a Maxim PMBus based power system. Each individual Maxim MAX15301,
MAX15303, and MAX20751 voltage regulator has a PMBus interface. Figure 3-29 shows the
KCU116 power system block diagram.
X-Ref Target - Figure 3-29

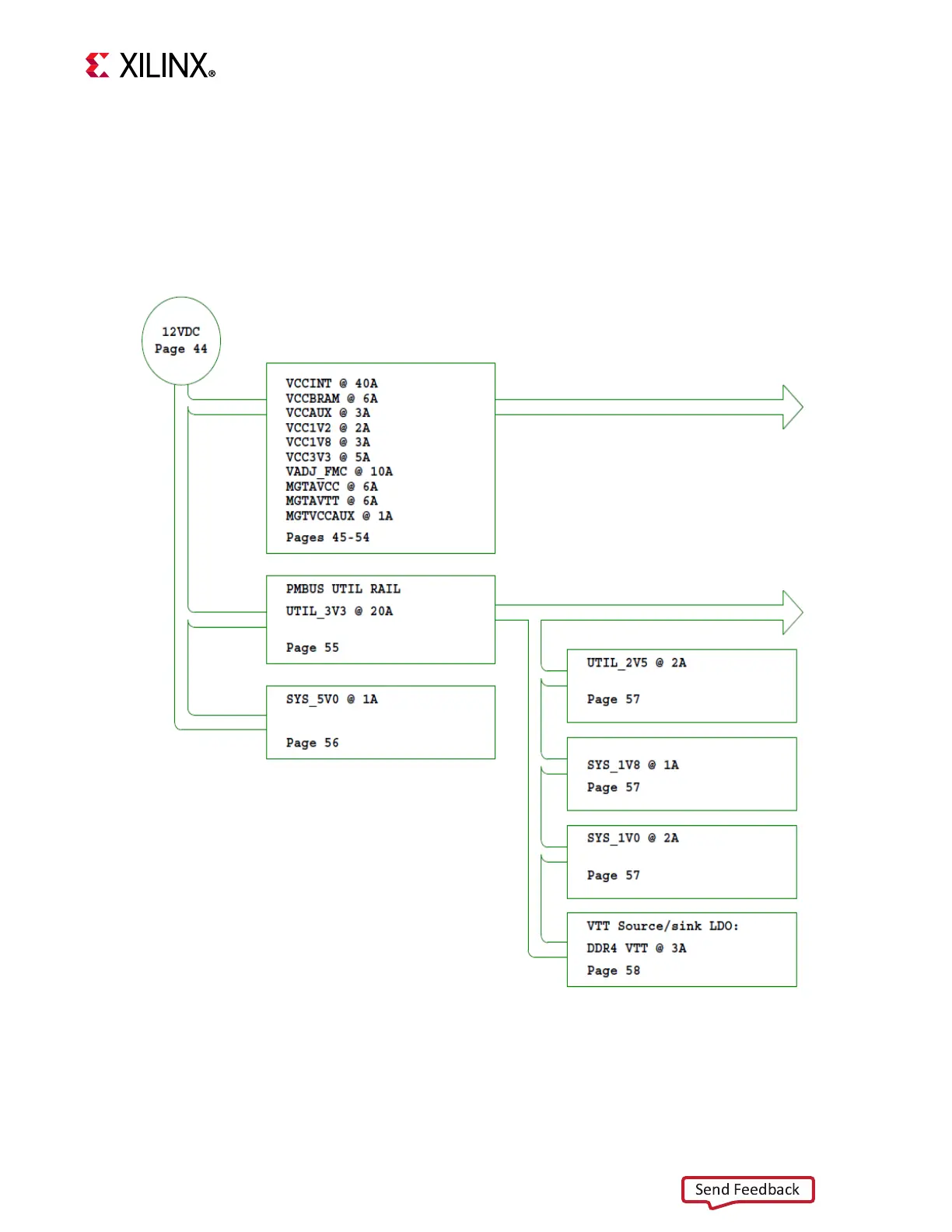

Figure3‐29: KCU116 Power System Block Diagram
X18541-042017
