Chapter3: Board Component Descriptions
Program_B Pushbutton Switch
[Figure 2-1, callout 26]
Switch SW5 grounds the XCKU5P FPGA U1 PROGRAM_B pin when pressed. This action
clears the FPGA configuration. The FPGA_PROG_B signal is connected to XCKU5P FPGA U1
pin AB9. See UltraScale Architecture Configuration User Guide (UG570) [Ref 3] for further
configuration details.
Figure 3-28 shows SW4.
X-Ref Target - Figure 3-28

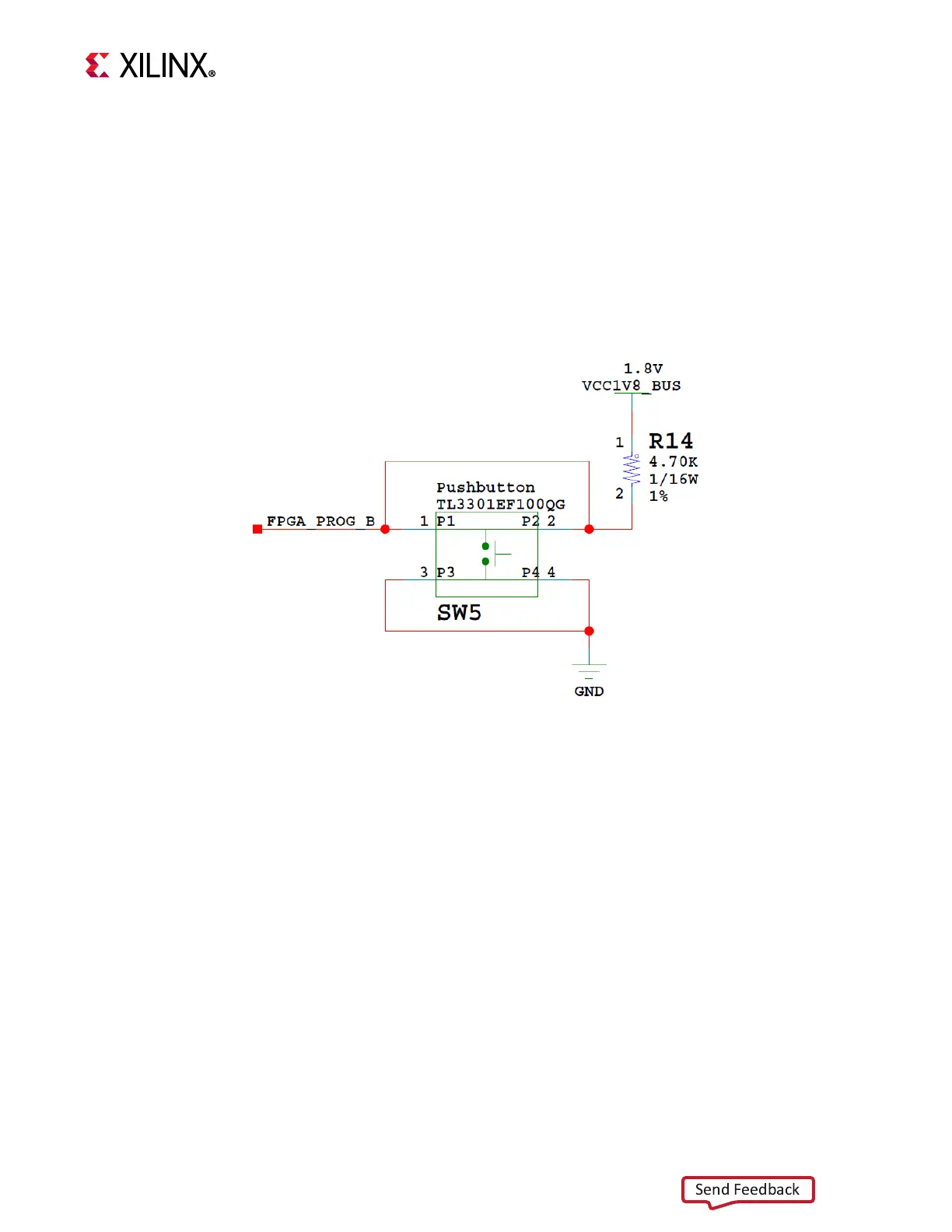

Figure3‐28: Program_B Pushbutton Switch SW5
X18539-121616
