15
RX-V3300/DSP-AZ2
RX-V3300/DSP-AZ2

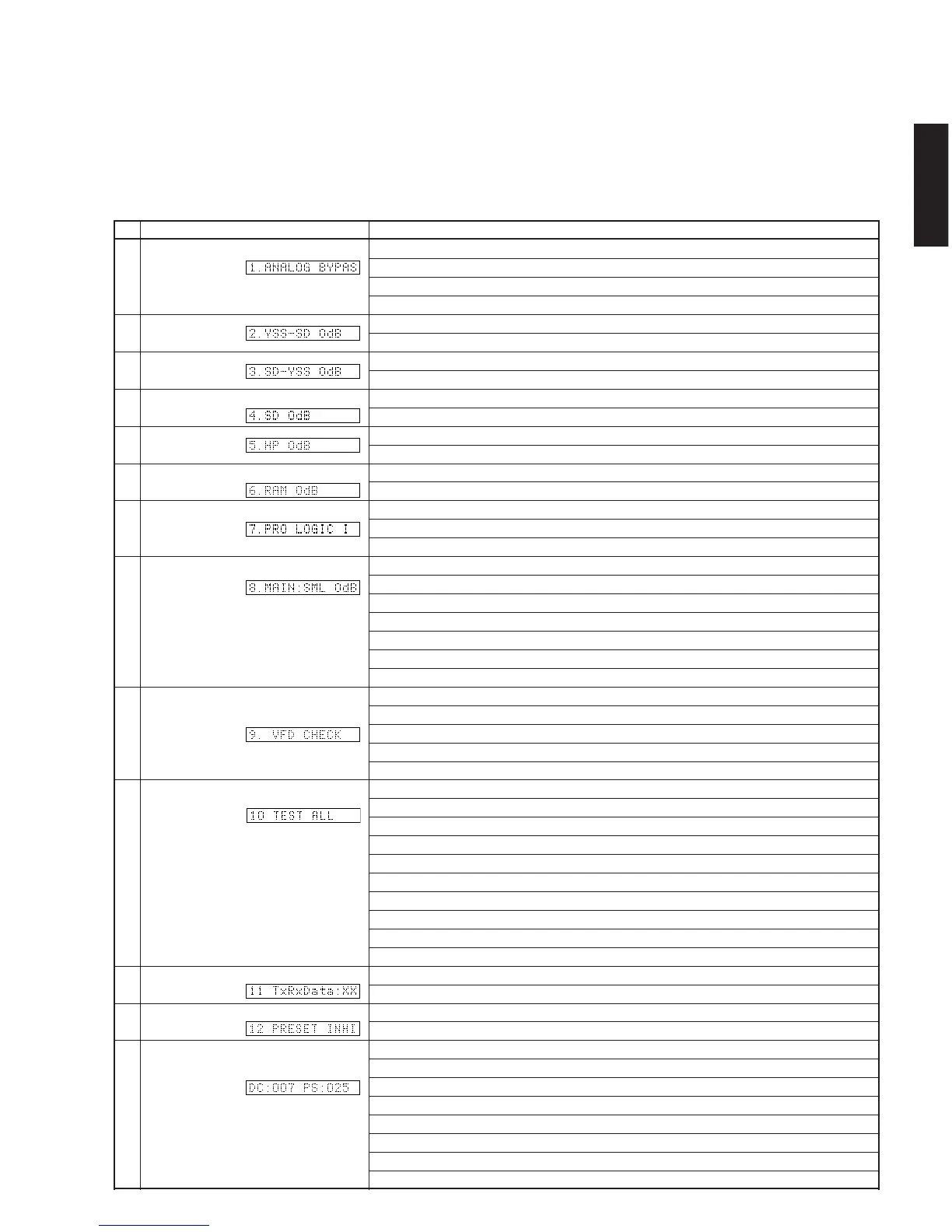

■ SELF DIAGNOSIS FUNCTION (DIAG)／自己診断機能（ダイアグ）
There are 18 DIAG menu items, each of which has sub-
menu items. Listed in the table below are menu items and
sub-menu items. (Some diagnostic functions do not apply
to all models or to all markets.)
No DIAG menu sub-menu
1 YSS938 1. ANALOG BYPASS
2. YSS 0dB
3. YSS FULL BIT
4. DSP BYPASS
2 YSS-SD 1. YSS-SD 0dB
2. YSS-SD FULL BIT
3 SD-YSS 1. SD-YSS 0dB
2. SD-YSS FULL BIT
4 SECOND DECODER 1. SD 0dB
2. SD FULL BIT
5 HP ROUTE 1. HP 0dB
2. HP FULL BIT
6 RAM THROUGH 1. RAM 0dB
2. MAIN ATT
7 PRO LOGIC / NEO6 1. PRO LOGIC I
2. PRO LOGIC II
3. NEO: 6
8 SPEAKER SET 1. MAIN: SMALL 0dB
2. MAIN: LARGE -10dB
3. CENTER: NONE
4. LFE/BASS: MAIN
5. FRONT MIX: 5ch
6. REAR CT: MUTE
7. REAR L/R: MUTE
9 EFFECT OFF/ 1. VFD CHECK (Initial display)
DISPLAY CHECK 2. VFD DISP OFF (All segments OFF)
3. VFD DISP ALL (All segments ON 100%)
4. VFD DIMMER (All segments ON 50%)
5. CHECKED PATTERN (ON in lattice)
10 MANUAL TEST 1. TEST ALL
2. TEST MAIN L
3. TEST CENTER
4. TEST MAIN R
5. TEST REAR R
6. TEST REAR CENTER
7. TEST REAR L
8. TEST FRONT L
9. TEST FRONT R
10. TEST LFE
11 RS-232C 1. TX DATA
2. HARD FLOW
12 FACTORY PRESET 1. PRESET INHIBIT
(memory initialization inhibited)
2. PRESET RESERVED (memory initialized)
13 AD DATA CHECK 1. DC/PS (protection)
/FAN TEST 2. THM/FAN OUT
3. REC-OUT
4. IMP SW/POWER LIMIT
5. K0/K1 (panel key)
6. FAN DRIVE TEST: HIGH
7. FAN DRIVE TEST: MID
8. FAN DRIVE TEST: LOW
To Next Page
