18
RX-V3300/DSP-AZ2
RX-V3300/DSP-AZ2
Cause: An excessive current flowed through the power
amplifier.
Turning on the power without correcting the abnormality
will cause the protection function to work immediately and
the power supply will instantly be shut off.
Note)
• Applying the power to a unit without correcting the
abnormality can be dangerous and cause additional
circuit damage.
• The output transistors in each amplifier channel
should be checked for damage before applying any
power.
• Amplifier current should be monitored by measuring
across the emitter resistors for each channel.
Opening message/
オープニング表示
DIAG menu display/
ダイアグメニュー表示
After a few seconds
Version (1 alphabet)
When there is no history
of protection function
When there is a history of protection function:
When there is a history ofprotection
function due to excess current
Version (1 alphabet)
プロテクション履歴がある場合:

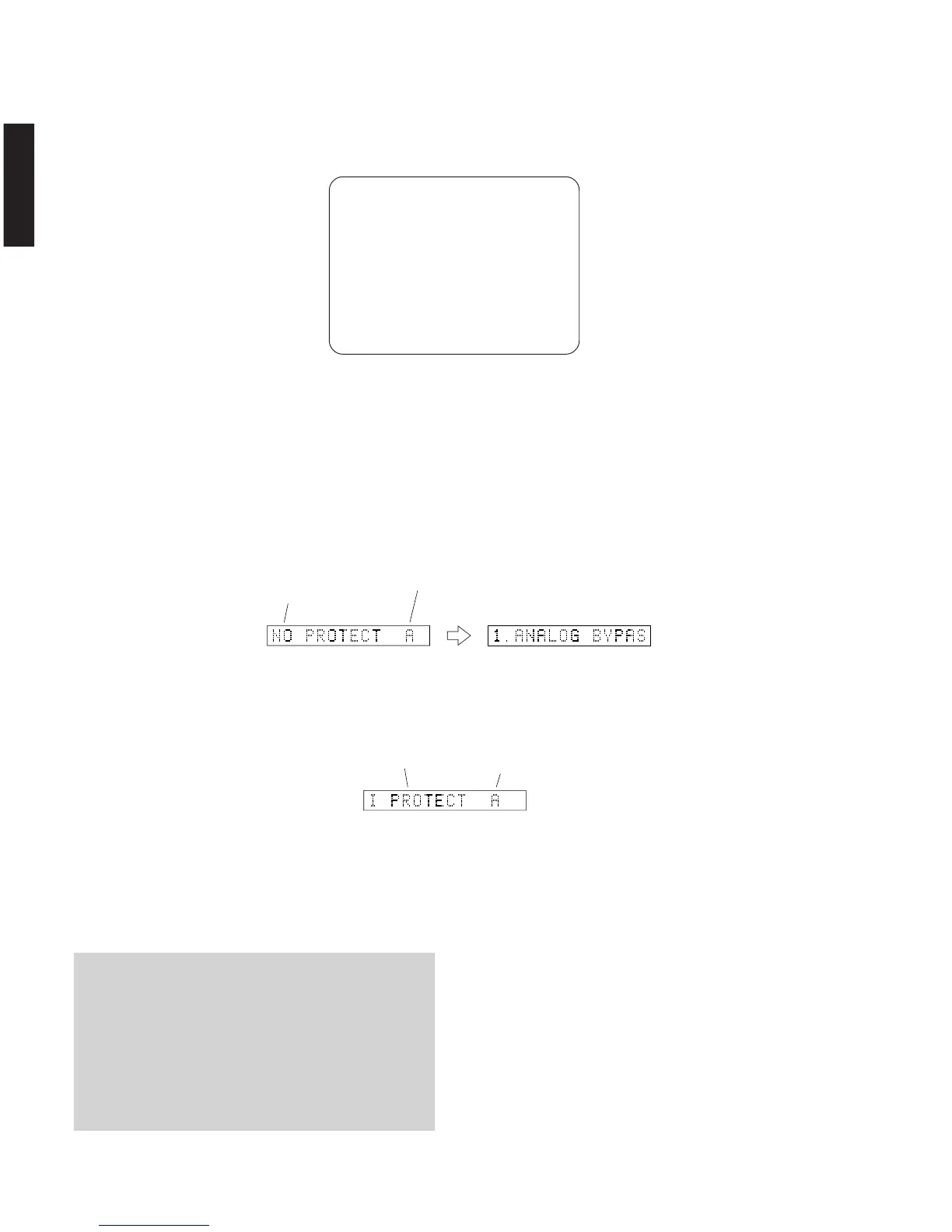

• Display provided when DIAG started
When the monitor is connected, DIAGNOSTIC MENU
appears on its screen as shown in the figure. (It remains
on display until DIAG is cancelled.)
●ダイアグ起動時の表示
プロテクション履歴がない場合:
The FL display of the main unit displays the protection
function history data and the version (1 alphabet) and the
DIAG menu [sub-menu (ANALOG BYPASS) of DIAG
menu No.1 YSS938] a few seconds later.
When there is no history of protection function:
To Next Page
