Yamaha DSP-AZ2 - DIAG Menu Details (Continued); 3. SD-YSS Function Details; SD-YSS Full Bit Output Details

25
RX-V3300/DSP-AZ2
RX-V3300/DSP-AZ2
Analog
Digital


 









 
  



















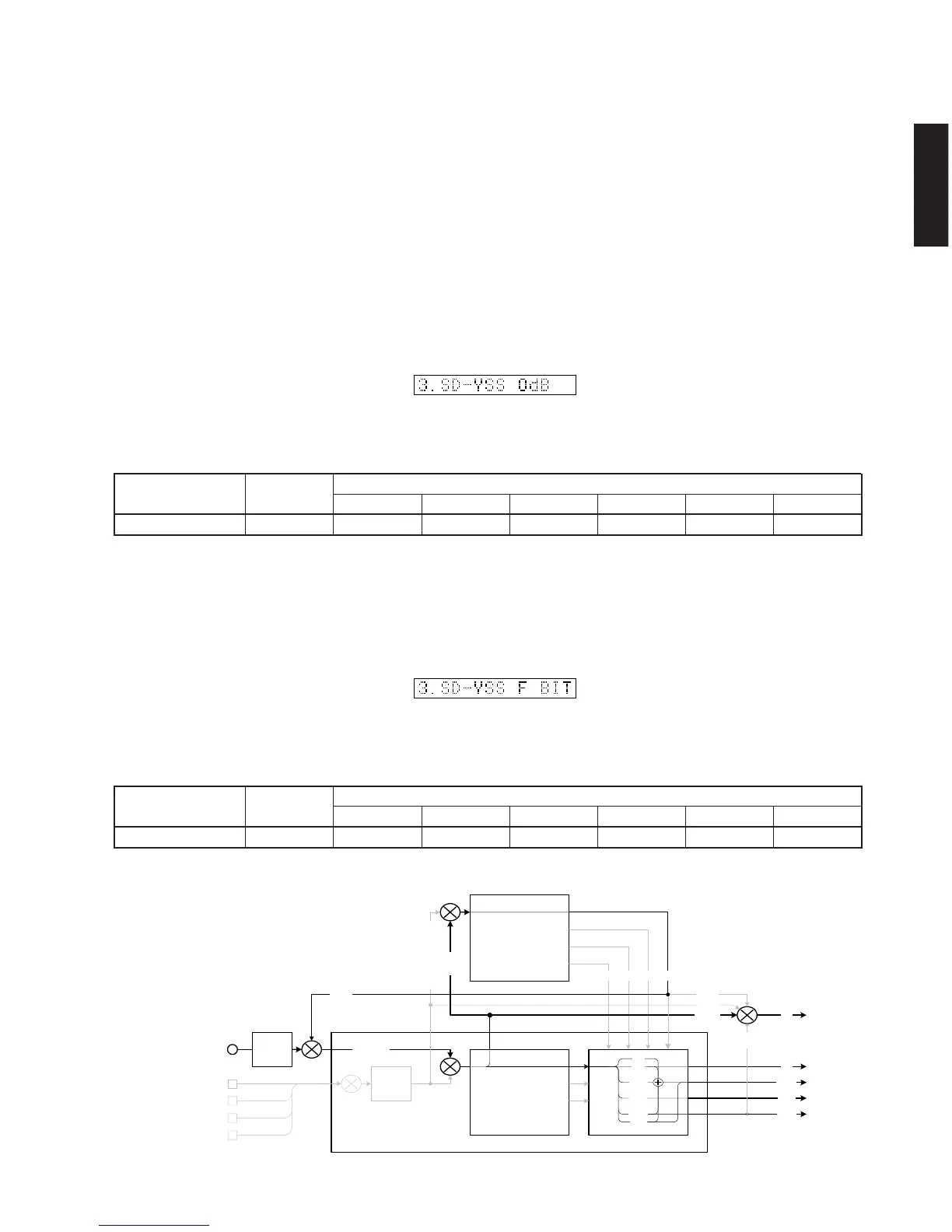

3. SD-YSS
8 channels are made usable by AP32. The signal
enters YSS938 through the Sub DSP passage and then
undergoes through-output.
YSS938 Main DSP is selected for the Main L/R output.
Using the sub-menu, it is possible to select full bit
output at 0dB output level.
DSP THROUGH ~
SD-YSS (Analog)
(Use of SD-YSS is not available
due to restriction of the passage.)


SD-YSS FULL BIT
• The signal is output in digital full bit without including
the head margin.
• The SWFR signal is output but not in digital full bit.
3. SD-YSS
 




SD-YSS 0dB
• The signal is output including the head margin.
Head margin:
Main L/R: -18dBFS, Center: -6dBFS, Rear Center:
-6dBFS, FL/FR: -6dBFS, RL/RR: -18dBFS, SWFR:
Add L/R signal at -20dBFS.
SD-YSS0dB
 




Reference data
INPUT: DVD ANALOG
SUBWOOFER: 50Hz, Others: 1kHz
SD-YSSFULLBIT

 

Reference data
INPUT: DVD ANALOG
SUBWOOFER: 50Hz, Others: 1kHz
Input level Volume
PRE OUTPUT
MAIN L/R FRONT L/R CENTER REAR L/R REAR CENTER SUBWOOFER
Both ch, -20 dBV -10 dB -13.6 dBV -14.8 dBV -13.5 dBV -13.6 dBV -13.6 dBV +2.8 dBV
Input level Volume
PRE OUTPUT
MAIN L/R FRONT L/R CENTER REAR L/R REAR CENTER SUBWOOFER
Both ch, -20 dBV -10 dB -13.6 dBV -8.8 dBV -7.5 dBV -1.6 dBV -7.6 dBV +2.8 dBV
(Shaded items not used in this example)
