20
RX-V3300/DSP-AZ2
RX-V3300/DSP-AZ2

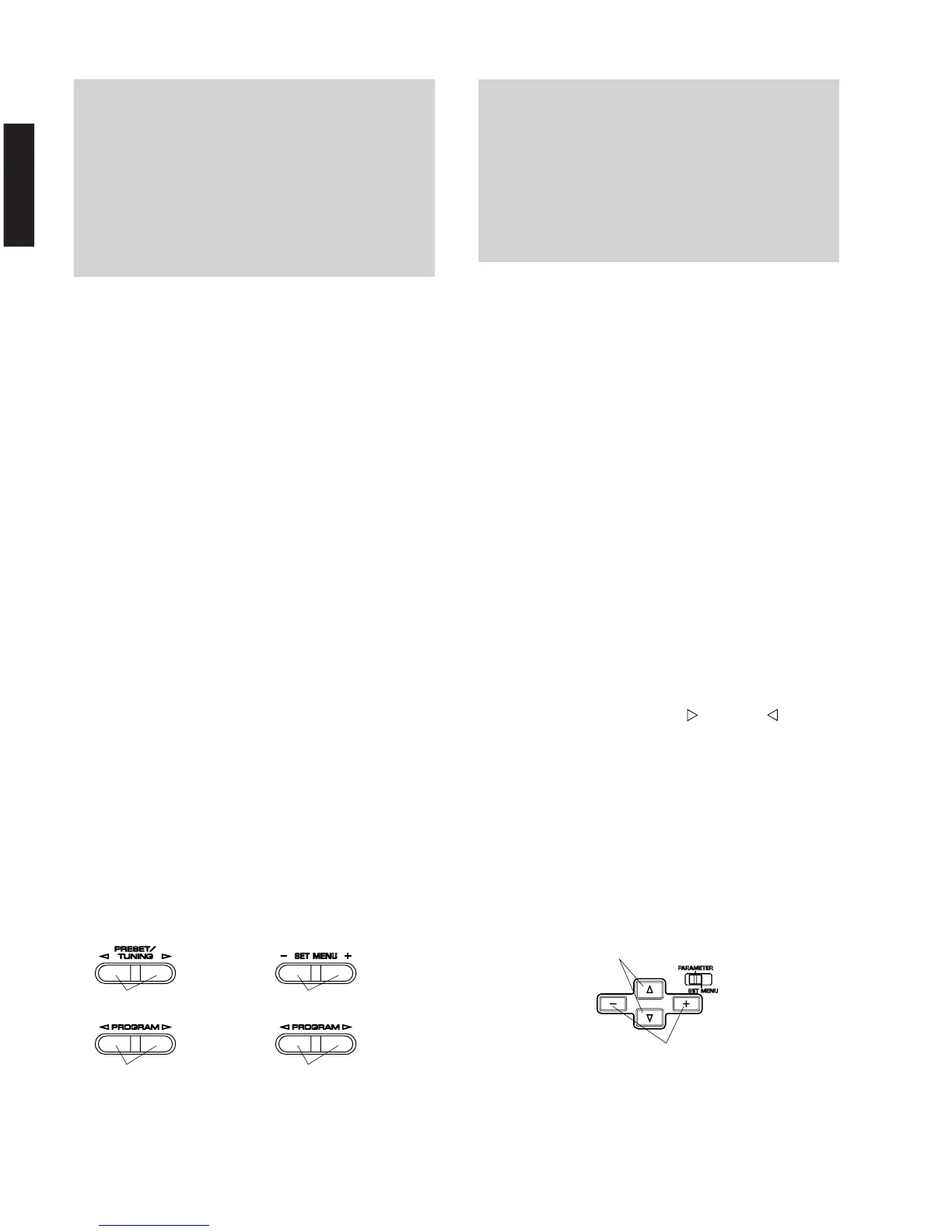

Keys of remote control /
SUB-MENU selection
DIAG menu selection
●ダイアグメニューとサブメニューの操作
ダイアグメニューの選択
サブメニューの選択
DIAG menu selection
SUB-MENU selection
DIAG menu selection
SUB-MENU selection
RX-V3300
Keys of main unit
DSP-AZ2
• Display during menu operation
During the DIAG operation, the menu list described in the
section of the startup screen appears on the
superimposed screen and the function at work is indicated
on the FL indicator. The contents displayed during the
function operation are described in the later section on
details of functions.
• History of protection function
When the protection function has worked, its history is
stored in memory with a backup. Even if no abnormality
is noted while servicing the unit, an abnormality which
has occurred previously can be defined as long as the
backup data has been stored.
The history of the protection function is cleared when
DIAG is cancelled by selecting PRESET RESERVED
(Memory initialized) of DIAG menu No. 12 or when the
backup data is erased.
●プロテクションの履歴
プロテクションが働いた場合、履歴をバックアップして
記憶しています。サービスのときに異常が認められなく
ても、バックアップが残っていれば、お客様のところで
起きた異常を区別できます。
プロテクションの履歴は、ダイアグメニューNo.12で
PRESETRESERVED（メモリーの初期化）を選んでダイ
アグを解除した場合や、バックアップが消えたときには
クリアされます。
●メニュー動作中の表示
• Operation procedure of DIAG menu and
SUB-MENU
There are 18 MENU items, each of which has some SUB-
MENU items.
DIAG menu selection
Main unit [RX-V3300]: Select the menu using (Forward)
and (Reverse) keys of PRESET/TUNING.
Main unit [DSP-AZ2]: Select the menu using (Forward)
and (Reverse) keys of SET MENU.
Remote control: Set the select switch to the PARAMETER
side and select the DIAG menu using ∇ (Forward) and ∆
(Reverse) keys.
SUB-MENU selection
Main unit: Select the sub-menu using (Forward) and
(Reverse) keys of PROGRAM.
Remote control: Select the sub-menu using + (Forward)
and - (Reverse) keys.
To Next Page
