18. MICROPROCESSOR INFORMATION
The version, checksum and the port specified by the
microprocessor are displayed. The signal is processed
using EFFECT OFF. The checksum is obtained by
adding the data at every 16 bits for each program area
and expressing the result as a 4-figure hexadecimal
data.
18.マイコン情報








Model type 0 (*1)
Model type 1 (*1)
Tuner mode 0 (*2)
Tuner mode 1 (*2)
Tuner with (1) / without (0)
RDS with (1) / without (0)
ZONE2 with (1) / without (0)
VIDEO format: PAL (1) / NTSC (0)
*2 (Tuner mode)
Type 0 Type 1 Model type
0 0 V1300
1 0 V2300
0 1 V3300
1 1 AZ2
*1 (Model type)

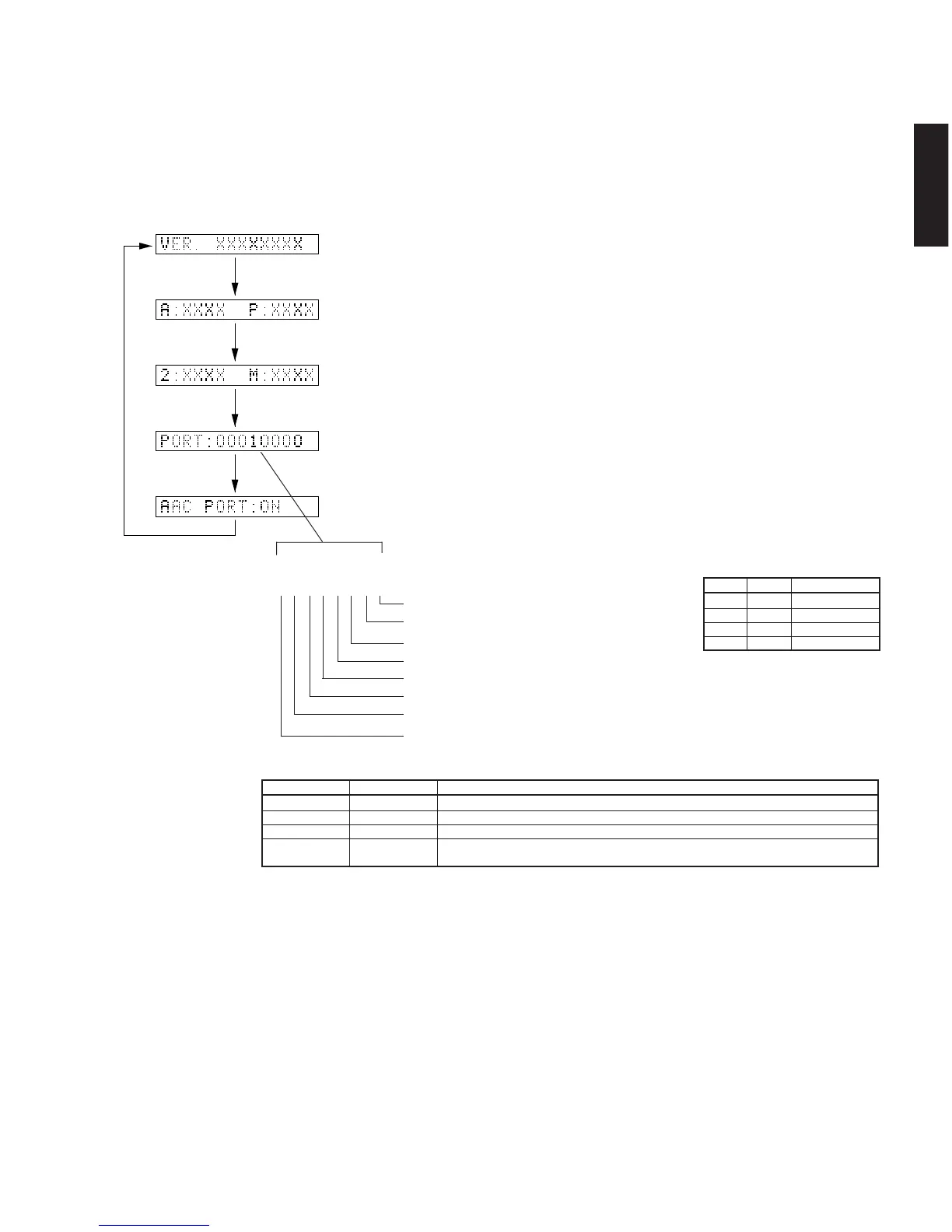

Version / 
Release 1 figure / Main 2 figures / DSP 2 figures / Communication 1 figure / Boot
manufacturer 1 figure / Boot 232c 1 figure
Checksum / 
A : All P : Program area
Checksum / 
2 : Boot 232C M : Boot manufacturer
Check of port setting for judging microprocessor function

Display of AAC function detection port state

Tuner mode 0 Tuner mode 1 Tuner frequency
0 0 AM: 531-1611kHz/9kHz FM: 76.0-90.0MHz/100kHz
0 1 AM: 531-1611kHz/9kHz FM: 87.5-108.0MHz/50kHz
1 0 AM: 530-1710kHz/10kHz FM: 87.5-107.9MHz/200kHz
11
R destination, Port6: LOW AM: 530-1710kHz/10kHz FM: 87.5-108.0MHz/100kHz
HIGH AM: 531-1611kHz/9kHz FM: 87.5-108.0MHz/50kHz
