Yamaha DSP-AZ2 - DIAG Menu Details (Continued); 7. Pro Logic; Neo:6 Function Details; Pro Logic I Mode Operation; Pro Logic II Mode Operation

29
RX-V3300/DSP-AZ2
RX-V3300/DSP-AZ2

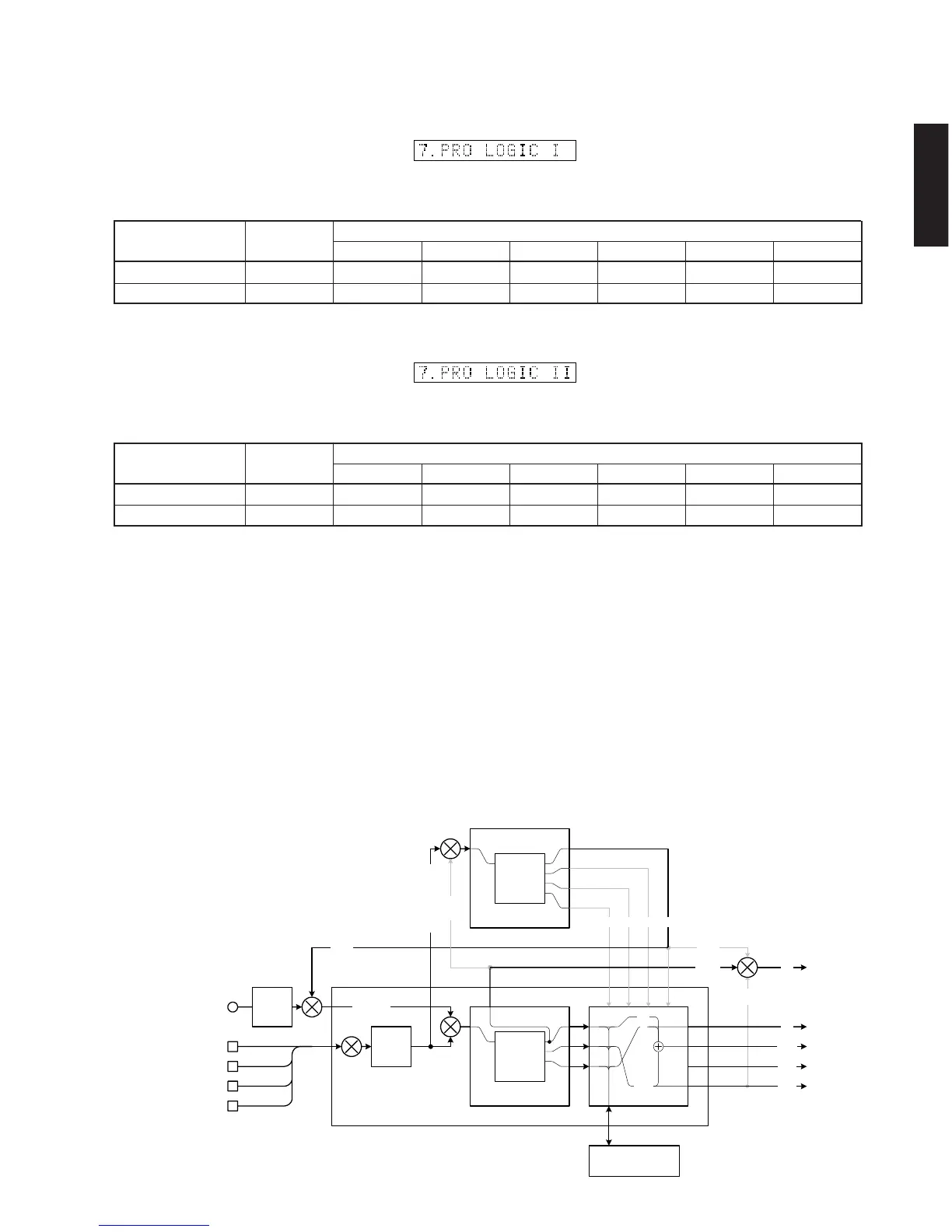

7. PRO LOGIC / NEO6
PRO LOGIC I




 









 
   

 









Analog
Digital


Dolby Pro Logic (Auto)
PRO LOGIC II
The L/C/R/RL/RR signals undergo the Pro-Logic
processing and C/RL/RR signals are output through
Sub DSP-DRAM. Main DSP is selected for MAIN L/R
output.
Using the sub-menu, it is possible to select PRO
LOGIC I, II (Movie). The Auto Input Balance function is
always off.
When dts/AAC input is used, the signal is decoded by
CS49329 and the L/R signal undergoes the Pro-Logic
processing.
When the Dolby Digital Multi input is used, the function
is the same as in the Dolby Digital Normal mode.
The LFE signal is not output when decoding in the PRO
LOGIC I, II mode.
7. PROLOGIC/NEO6
PROLOGICI
PROLOGICII

 





   



Reference data
INPUT: DVD ANALOG
SUBWOOFER: 50Hz, Others: 1kHz
Reference data
INPUT: DVD ANALOG
SUBWOOFER: 50Hz, Others: 1kHz
Input level Volume
PRE OUTPUT
MAIN L/R FRONT L/R CENTER REAR L/R REAR CENTER SUBWOOFER
Each ch, -20 dBV -10 dB -13.6 dBV - ∞ - ∞ - ∞ - ∞ - ∞
Both ch, -20 dBV -10 dB - ∞ - ∞ -10.5 dBV - ∞ - ∞ - ∞
Input level Volume
PRE OUTPUT
MAIN L/R FRONT L/R CENTER REAR L/R REAR CENTER SUBWOOFER
Each ch, -20 dBV -10 dB -13.6 dBV - ∞ - ∞ - ∞ - ∞ - ∞
Both ch, -20 dBV -10 dB - ∞ - ∞ -10.5 dBV - ∞ - ∞ - ∞
(Shaded items not used in this example)
