RX-V3300/DSP-AZ2
RX-V3300/DSP-AZ2
Neo:6
Analog
Digital

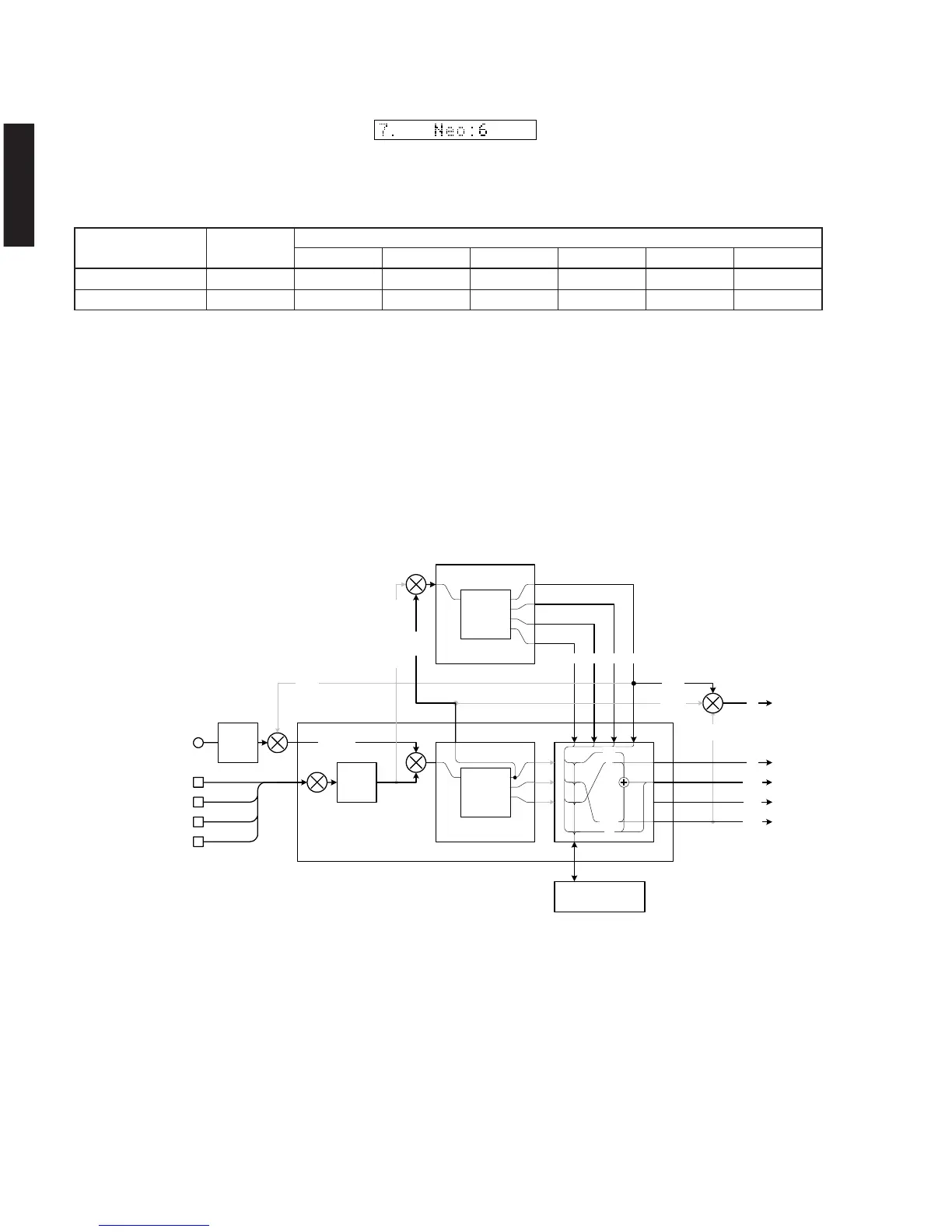

NEO:6 (Auto)
L/C/R/RL/RC/RR signals are NEO:6 processed by
CS49329 and C/RL/RC/RR signals are output through
Sub DSP-DRAM. CS49329 is selected for the MAIN L/
R output. The NEO:6 mode is fixed to Cinema 6ch.
When DD/dts input is used, the signal is decoded by
YSS-938 and then L/R signal is NEO:6 processed by
CS49329. When AAC input is used, the signal is muted.
When NEO:6 decoding is used, the LFE signal is not
output.
Reference data
INPUT: DVD ANALOG
SUBWOOFER: 50Hz, Others: 1kHz
Neo:6
Input level Volume
PRE OUTPUT
MAIN L/R FRONT L/R CENTER REAR L/R
REAR CENTER
SUBWOOFER
Each ch, -20 dBV -10 dB -13.6 dBV - ∞ - ∞ - ∞ - ∞ - ∞
Both ch, -20 dBV -10 dB - ∞ - ∞ -10.5 dBV - ∞ - ∞ - ∞
(Shaded items not used in this example)
