13. AD DATA CHECK / FAN TEST
This menu is used to display the A/D conversion value
of the main CPU which detects panel keys of the main
unit and protection functions in % using the sub-menu.
During signal processing, the condition before
execution is maintained.
When K0/K1 menu is selected, keys become non-
operable due to detection of the values of all keys.
However, it is possible to advance to the next sub-
menu by turning the VOLUME of the main unit. When
using this function, note that turning the VOLUME more
than 1 click would cause the volume value to change.
* The figures in the diagram are given as reference
only.

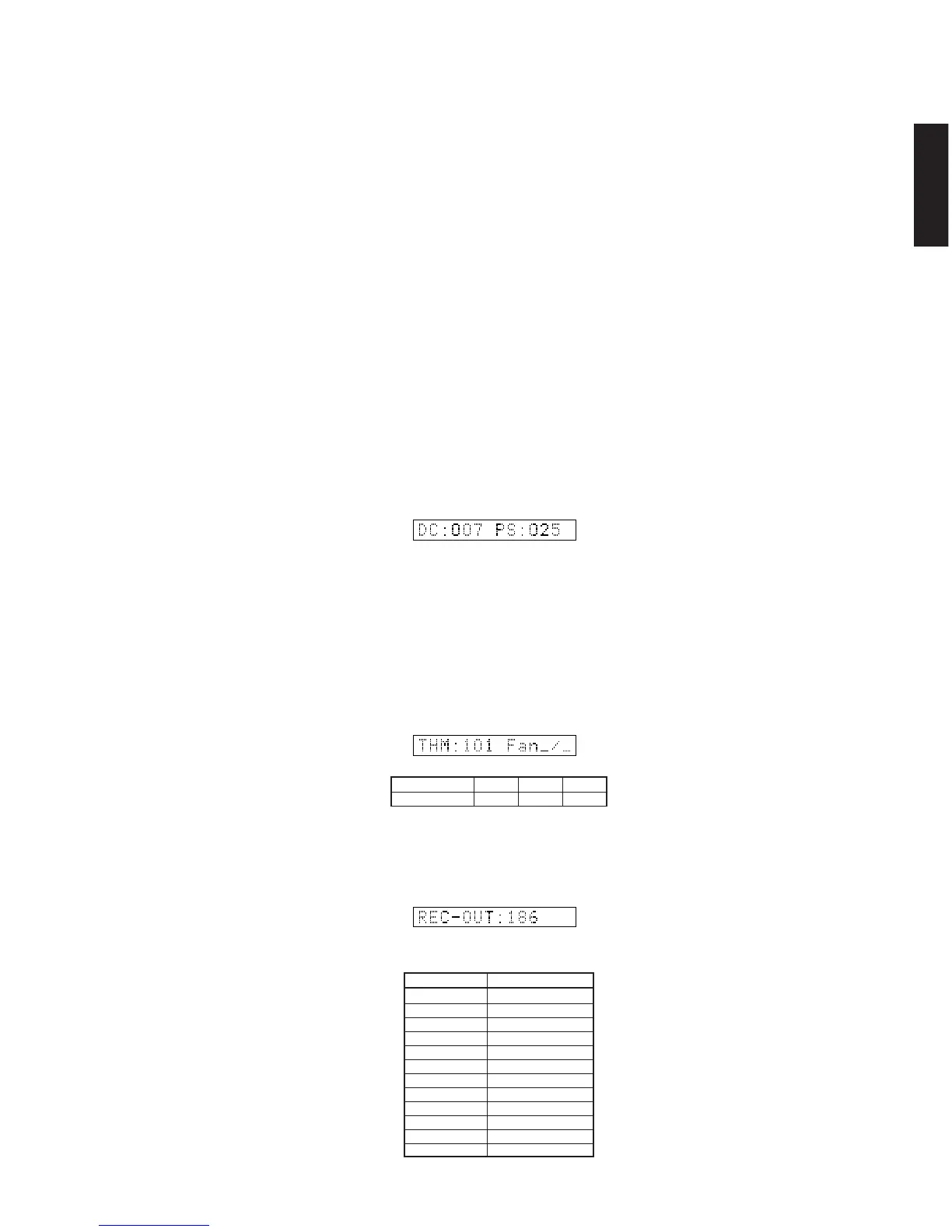

DC/PS (protection detection)
DC: DC detect protection value (Normal value: 1 to 13)
PS: Power supply voltage protection value (Normal value:
18 to 32)
* If DC or PS is out of the normal value range, the
protection function works to turn off the power.
(Reference voltage: 5V=100%)
13.ADDATACHECK/FANTEST
DC/PS（プロテクションの検出）
THM/FAN OUT (temperature detection/fan drive level)
THM: 500% display of the voltage based on the
temperature detected value.
Reference voltage: 5V=500% (Normal value: U
model ..... 51 to 169, Others models ..... 51 to 158)
Fan: Current fan drive level on the left and the past fan
drive history on the right.
THM/FANOUT（温度検出/ファン駆動レベル）
Display H M L
fan drive level HIGH MID LOW
REC-OUT (Select position)
This applies to the model equipped with the REC OUT
selector.
[Table 1]
Display REC OUT Select
0+2 CD-R
15±2 CBL/SAT
30±2 PHONO
44±2 V-AUX
60±2 MD/TAPE
76±2 D-TV/LD
122±2 TUNER
137±2 VCR1
153±2CD
170±2 VCR2/DVR
186±2 SOURCE
202±2DVD
REC-OUT（選択位置表示）
