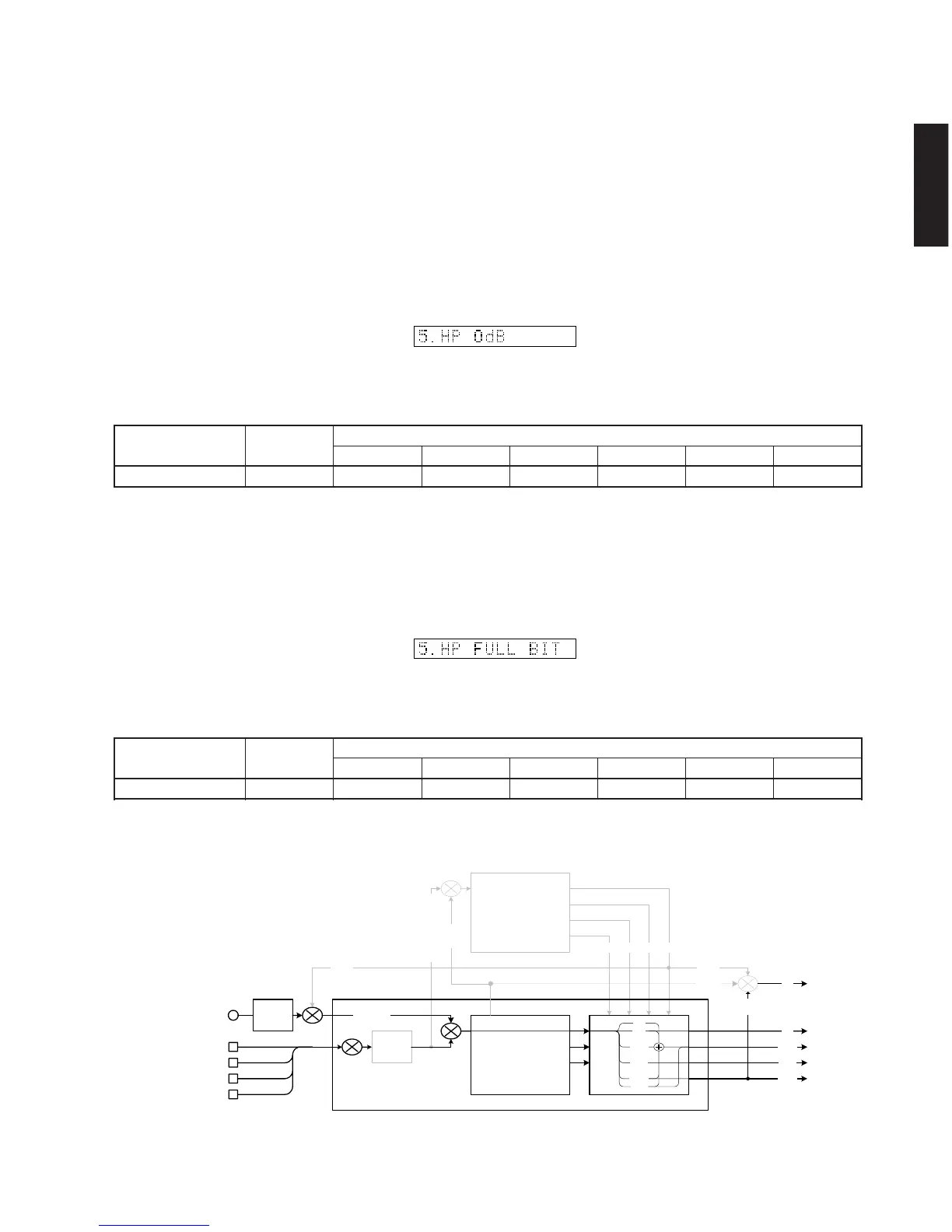

5. HP ROUTE
This function is for YSS938 only. Sub DSP SDOB3 of
YSS938 is selected for MAIN L/R output.
Using the sub-menu, it is possible to select the full-bit
output at 0dB output level.
DSP THROUGH ~
HP ROUTE (Auto)
HP FULL BIT
• The signal is output in digital full bit without including
the head margin.
• The SWFR signal is output but not in digital full bit.
HP 0dB
• The signal is output including the head margin.
Head margin:
Main L/R: -18dBFS, Center: -6dBFS, Rear Center:
-6dBFS, FL/FR: -6dBFS, RL/RR: -18dBFS, SWFR:
Add L/R signal at -20dBFS.
5. HPROUTE
HPFULLBIT
HP0dB
Reference data
INPUT: DVD ANALOG
SUBWOOFER: 50Hz, Others: 1kHz
Reference data
INPUT: DVD ANALOG
SUBWOOFER: 50Hz, Others: 1kHz
Input level Volume
PRE OUTPUT
MAIN L/R FRONT L/R CENTER REAR L/R
REAR CENTER
SUBWOOFER
Both ch, -20 dBV -10 dB -13.6 dBV - ∞ - ∞ - ∞ - ∞ - ∞
Input level Volume
PRE OUTPUT
MAIN L/R FRONT L/R CENTER REAR L/R
REAR CENTER
SUBWOOFER
Both ch, -20 dBV -10 dB +1.4 dBV - ∞ - ∞ - ∞ - ∞ - ∞
(Shaded items not used in this example)
