Yamaha DSP-AZ2 - DIAG Menu Details (Continued); YSS Full Bit Output Details; DSP Bypass Function Explanation

23
RX-V3300/DSP-AZ2
RX-V3300/DSP-AZ2
Analog
Digital

 
   







 








 










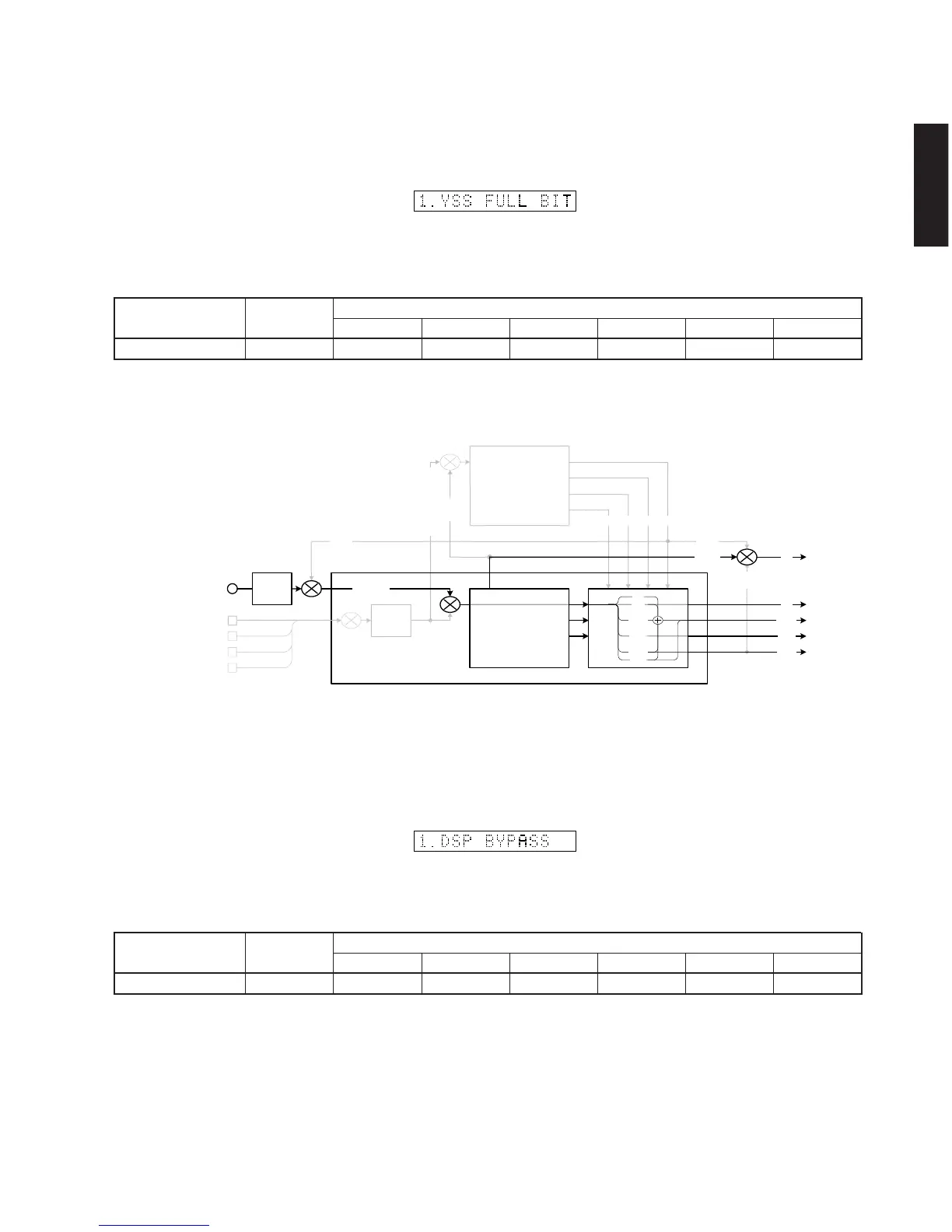

YSS FULL BIT
• The signal is output in digital full bit without including
the head margin.
• The SWFR signal is output but not in digital full bit.
DSP BYPASS
YSSFULLBIT
 

 

DSPBYPASS
DSP THROUGH ~
YSS (Analog)
Reference data
INPUT: DVD ANALOG
SUBWOOFER: 50Hz, Others: 1kHz
Reference data
INPUT: DVD ANALOG
SUBWOOFER: 50Hz, Others: 1kHz
Input level Volume
PRE OUTPUT
MAIN L/R FRONT L/R CENTER REAR L/R REAR CENTER SUBWOOFER
Both ch, -20 dBV -10 dB -13.6 dBV -8.8 dBV -7.5 dBV -1.6 dBV -7.6 dBV +2.8 dBV
Input level Volume
PRE OUTPUT
MAIN L/R FRONT L/R CENTER REAR L/R REAR CENTER SUBWOOFER
Both ch, -20 dBV -10 dB - ∞ - ∞ - ∞ - ∞ - ∞ - ∞
(Shaded items not used in this example)
