Yamaha DSP-AZ2 - DIAG Menu Details (Continued); 6. RAM Through Function Details; Main Attenuation Settings

28
RX-V3300/DSP-AZ2
RX-V3300/DSP-AZ2
Analog
Digital

 
   







 








 











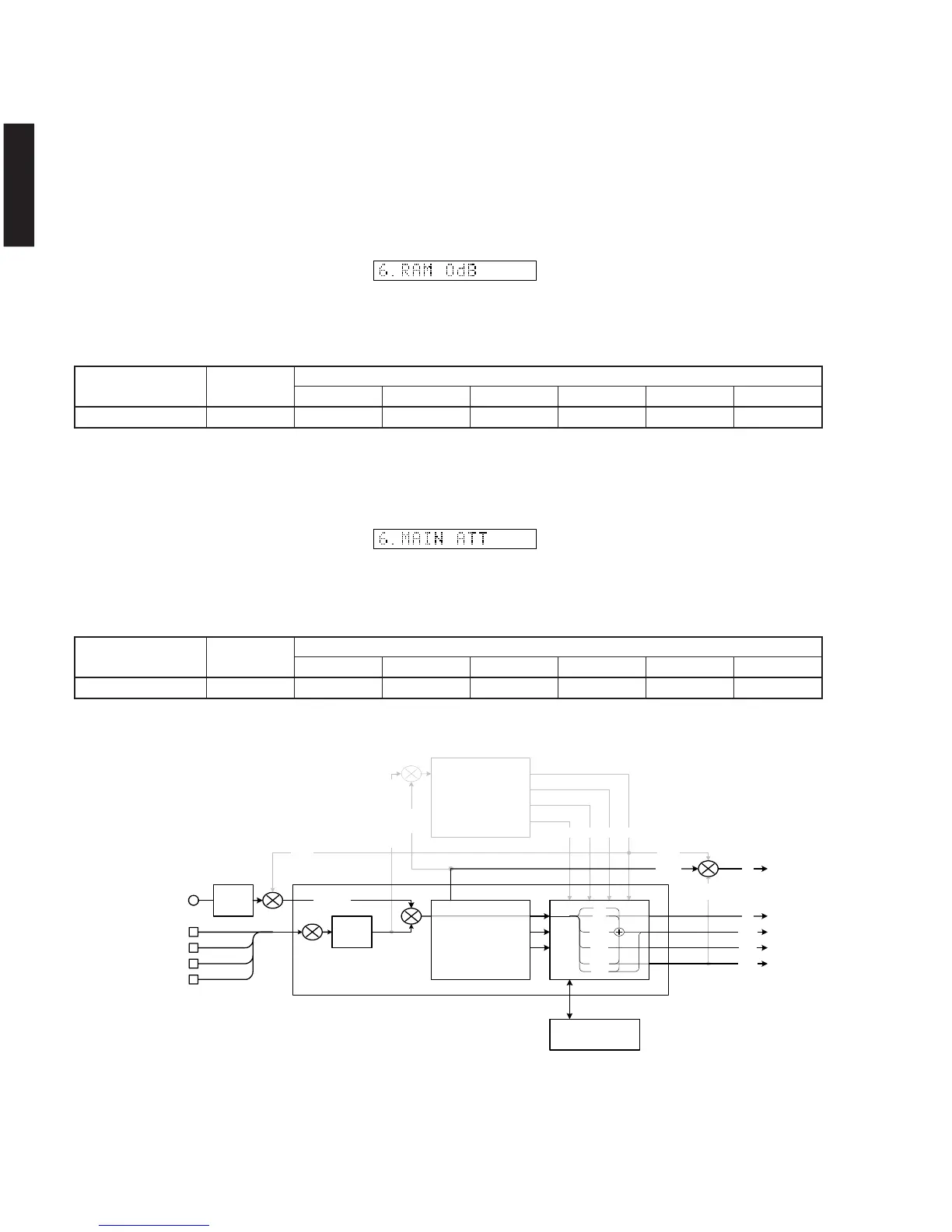

6. RAM THROUGH
This function is for YSS938 only. Main L/R signal is
output through Main DSP of YSS938.
CT/RC, RL/RR and FL/FR signals are output through
Sub DSP - DRAM.
Using the sub-menu, it is possible to select the full-bit
output at 0dB output level.
RAM THROUGH ~
(Auto)
MAIN ATT
• MAIN -9dB
RAM 0dB
6. RAMTHROUGH






MAINATT

RAM0dB
Reference data
INPUT: DVD ANALOG
SUBWOOFER: 50Hz, Others: 1kHz
Reference data
INPUT: DVD ANALOG
SUBWOOFER: 50Hz, Others: 1kHz
Input level Volume
PRE OUTPUT
MAIN L/R FRONT L/R CENTER REAR L/R REAR CENTER SUBWOOFER
Both ch, -20 dBV -10 dB -13.6 dBV -14.8 dBV -13.5 dBV -13.6 dBV -13.6 dBV +2.8 dBV
Input level Volume
PRE OUTPUT
MAIN L/R FRONT L/R CENTER REAR L/R REAR CENTER SUBWOOFER
Both ch, -20 dBV -10 dB -13.6 dBV -14.8 dBV -13.5 dBV -13.6 dBV -13.6 dBV +2.8 dBV
(Shaded items not used in this example)
