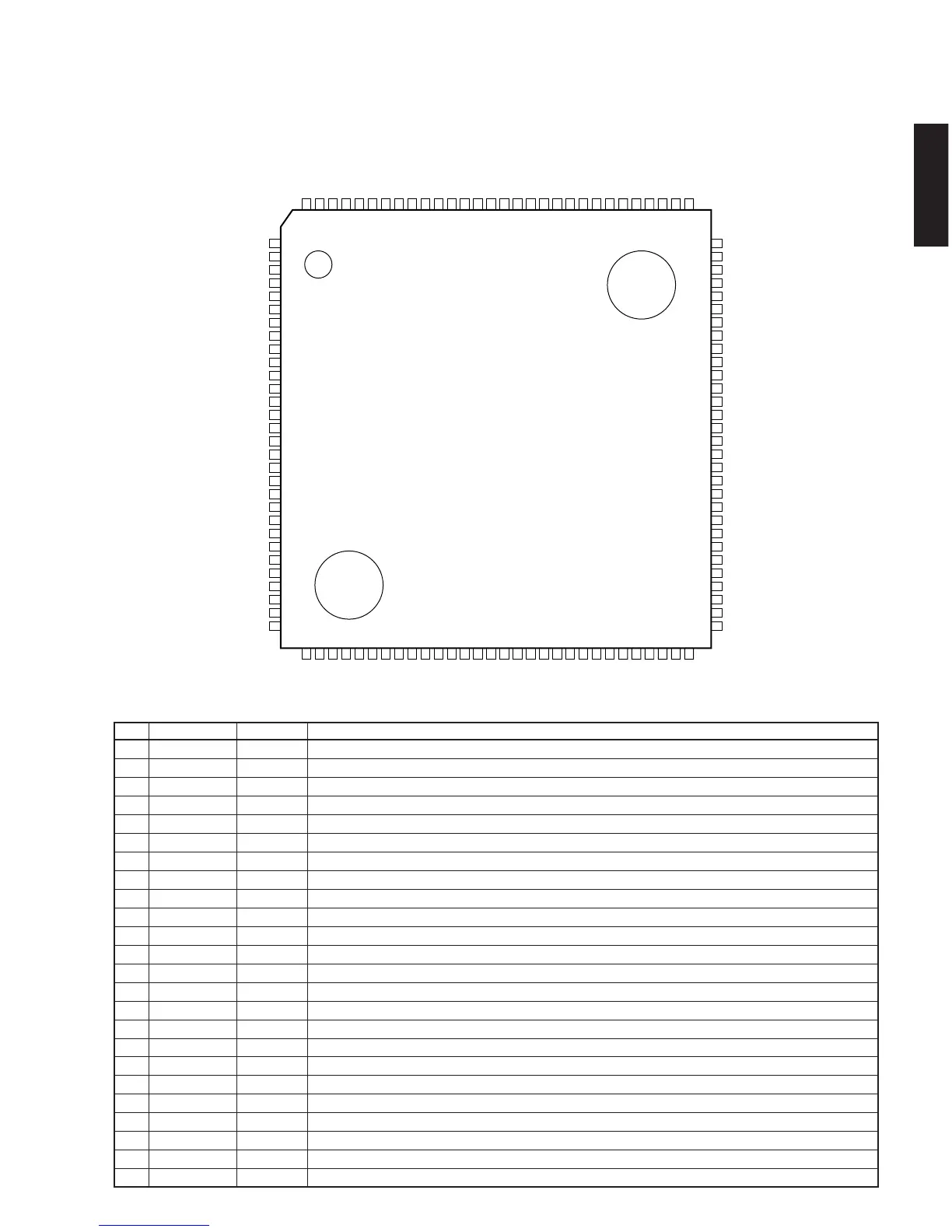

■ IC DATA
IC504 : MB87J0470 (DSP P.C.B.)
DECODER
No. Name I/O Function
1 VSS Ground
2 XRST I Reset input from outside
3 CLKIN I Master clock input
4 LRCKI3 I Sampling clock exclusively used for serial data output for audio I/F
5 VDDI Power
6 BCKI3 I Bit clock exclusively used for serial data output for audio I/F
7 PLOCK O Internal PLL lock signal
8 VSS Ground
9 XI I Clock signal input (Crystal oscillator connection)
10 VDDI Power
11 VSS Ground
12 XO I/O Clock signal input/output (Crystal oscillator connection)
13 MS I
Crystal/external transmission operation select 0: Internal oscillation clock using crystal 1: Use of CLKIN clock (Crystal oscillation stopped)
14 SCKO O
Audio clock output
15 LRCKI1 I
Sampling clock input for audio I/F serial data
16 VDDE Power
17 BCKI1 I Bit clock input for audio I/F serial data
18 SDTI1 I Data input for audio I/F
19 LRCKO O Sampling clock output for audio I/F serial data
20 BCKO O Bit clock output for audio I/F serial data
21 VSS Ground
22 KFS I Audio clock input
23 SDTO1 O Serial data output for audio I/F
24 SDTO2 O Serial data output for audio I/F
To Next Page
