Yamaha DSP-AZ2 Service Manual

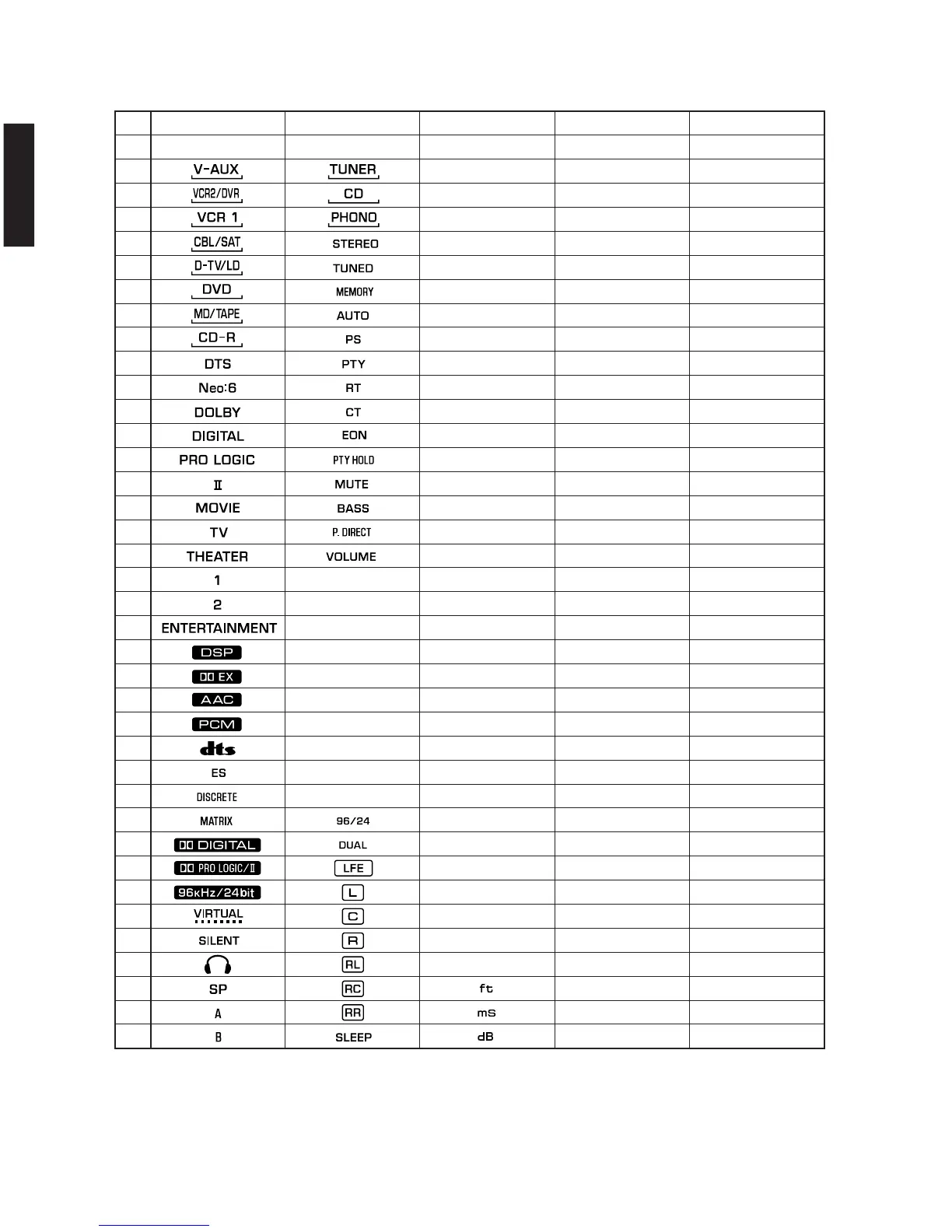

44
RX-V3300/DSP-AZ2
RX-V3300/DSP-AZ2
16G 15G 14G 13G~2G 1G
P1 S2 S1 1-1 1-1 1-1
P2 2-1 2-1 2-1
P3 3-1 3-1 3-1
P4 4-1 4-1 4-1
P5 5-1 5-1 5-1
P6 1-2 1-2 1-2
P7 2-2 2-2 2-2
P8 3-2 3-2 3-2
P9 4-2 4-2 4-2
P10 5-2 5-2 5-2
P11 1-3 1-3 1-3
P12 2-3 2-3 2-3
P13 3-3 3-3 3-3
P14 4-3 4-3 4-3
P15 5-3 5-3 5-3
P16 1-4 1-4 1-4
P17 2-4 2-4 2-4
P18 3-4 3-4 3-4
P19 S3 4-4 4-4 4-4
P20 B1 5-4 5-4 5-4
P21 B2 1-5 1-5 1-5
P22 B3 2-5 2-5 2-5
P23 B4 3-5 3-5 3-5
P24 B5 4-5 4-5 4-5
P25 B6 5-5 5-5 5-5
P26 B7 1-6 1-6 1-6
P27 B8 2-6 2-6 2-6
P28 B9 3-6 3-6 3-6
P29 4-6 4-6 4-6
P30 5-6 5-6 5-6
P31 1-7 1-7 1-7
P32 2-7 2-7 2-7
P33 3-7 3-7 3-7
P34 4-7 4-7 4-7
P35 5-7 5-7 5-7
P36 – T1
P37 ––
P38 ––
● ANODE CONNECTION
